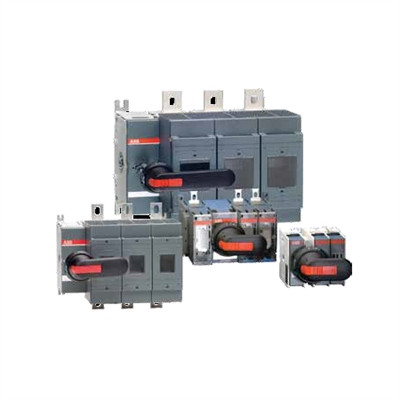

The ABB OS600J12 is a robust 3-pole disconnect switch designed for high-performance and safety in demanding industrial environments. This switch, part of the Powerline series, supports a 600A current and operates at 600V. It is fusible and specifically accepts Class J fuses, although the fuses are not included with the switch.
Key features include a wide range of international fuse clip options, various operational modes such as rotary through-door, flange mounted, or motorized, and full fuse isolation when in the off position. The switch is designed to occupy minimal panel space while providing high interrupting capacity and long electrical life. It is available in configurations from 2 to 8 poles, with amperage options ranging from 30A to 800A.
Safety is a priority with the OS600J12, featuring a quick-make/quick-break mechanism, door interlock, and padlockable handles to ensure secure operations. It is UL98 certified, ensuring compliance with stringent safety standards. The switch is also designed to withstand extreme environmental conditions, making it an ideal choice for applications ranging from the tropics to the arctic.
The switch supports a maximum horsepower of 500 HP at 600V in a 3-phase system, and it is designed for panel mounting with a thru-door operator type. Weighing 34 pounds and 3 ounces, it is both durable and manageable in size, suitable for various industrial settings.
