Description
Overview
Abb

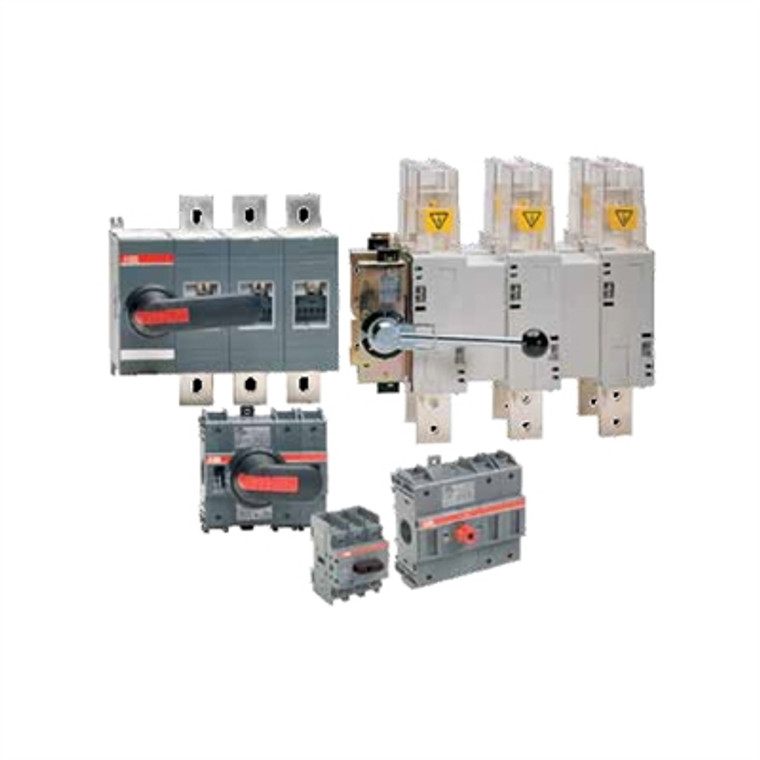

Open Disconnect Transfer Switches, Switchline Series
Item# Ot25F3C - Double Throw Switch, 3-P, 25A, N/F, Ul508 Listed, Switch Only, Integral Term Lugs, Switch Only, Less Oper.
Switchline Series Information
- 16~100 Amps
- 600Vac Maximum
- Ul; Csa Approved
- 3 Or 4 Poles
- Door Mounted
- Broad Range Of Accessories Available
- Mountable In Any Position
- Finger Proof For Improved Safety
- Compact Size
Specifications
Item Number: &Nbsp;
Ot25F3C
Upc: &Nbsp;
804325415446
Brand:
Abb
Item Category:
Disconnect Switches
Subcategory:
Double Throw Switches
Series:
Switchline
Enclosed:
No
Poles:
3
Current Rating:
25 Amps
Voltage Ac:
600 Volts Ac
Ul Class:
Mounting:
Panel;Din
Operator Type:
Pistol - Black
Max Hp 230/240V 3Ph:
7.5 Horsepower
Max Hp 460/480V 3Ph:
15 Horsepower
Max Hp 600V 3Ph:
20 Horsepower
Max Hp 120V 1P:
1.5 Horsepower
Max Hp 240V 1P:
3 Horsepower
Comments:
Change-Over/Transfer Switch; Direct Mounted Handle
H X W X D:
2.68 In X 1.38 In X 2.2 In
&Nbsp;&Nbsp;Net Weight:
3.538 Oz
&Nbsp;&Nbsp;Gross Weight:
9.04 Oz
