Description
Overview
Abb

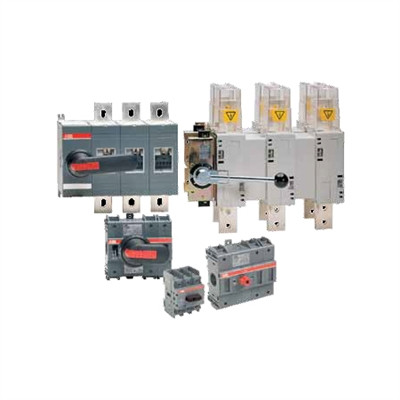

Open Disconnects, Switchline Series
Item# Ot25Ft3 - Disconnect Switch, 3-P, 25A, Door Mount, Non-Fusible, Ul508 Listed, Less Handle, 1Sca104884R1001
Switchline Series Information
- 16~3150 Amps
- 600Vac Maximum
- Ul E63822; Csa Lr58247
- 2, 3, 4, 6, Or 8 Poles
- Din Rail, Door, Or Base Mount
- Broad Range Of Accessories Available
- Mountable In Any Position
- Finger Proof For Improved Safety
- Wielded Contact Protection
- Flange, Side, Or Thru-Door Installation
Specifications
Item Number: &Nbsp;
Ot25Ft3
Upc: &Nbsp;
8043254154610
Brand:
Abb
Item Category:
Disconnect Switches
Subcategory:
Open
Series:
Switchline
Fusible:
No
Poles:
3
Current Rating:
25 Amps
Voltage Ac:
600 Volts Ac
Ul Class:
Mounting:
Door
Operator Type:
Thru-Door
Max Hp 230/240V 3Ph:
7.5 Horsepower
Max Hp 460/480V 3Ph:
15 Horsepower
Max Hp 600V 3Ph:
20 Horsepower
Max Hp 120V 1P:
1.5 Horsepower
Max Hp 240V 1P:
3 Horsepower
H X W X D:
2.68 In X 1.38 In X 2.2 In
&Nbsp;&Nbsp;Net Weight:
3.68 Oz
&Nbsp;&Nbsp;Gross Weight:
3.6741 Oz
