Description

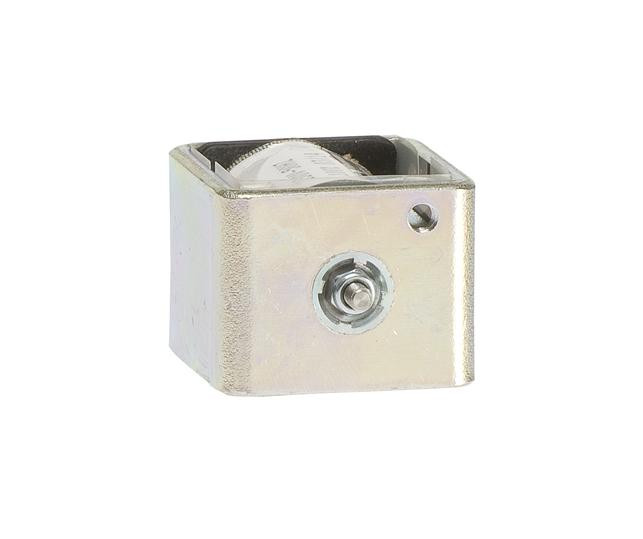

By Installing A Coil Inside The Housing Of The Interlock Kit The Switch Can Be Interlocked Electrically In The Off-Position Or Both In The Off- And On-Positions. The Electrical Interlock Works Using The &Ldquo;Closed Circuit Principle&Rdquo;, Meaning That When The Control Voltage Is Not Connected To The Coil. The Switches Provided With A-Type Interlocks Cannot Be Turned To The On-Position And Switches With L-Type Interlocks Cannot Be Turned To The On- Or Off Positions.
&Nbsp;
- Product Id:&Nbsp;1Sca022745R0420
Customs Tariff Number:&Nbsp;85381000
Popular Downloads
- Data Sheet, Technical Information:&Nbsp;1Scc301020C0201
Dimensions
- Product Net Width:
- 45&Nbsp;Mm
- Product Net Height:
- 55&Nbsp;Mm
- Product Net Depth:
- 40&Nbsp;Mm
- Product Net Weight:
- 0.15&Nbsp;Kg
Container Information
- Package Level 1 Units:
- 1 Piece
- Package Level 1 Width:
- 50 Mm
- Package Level 1 Length:
- 60 Mm
- Package Level 1 Height:
- 40 Mm
- Package Level 1 Gross Weight:
- 0.15 Kg
- Package Level 1 Ean:
- 6417019241722
Classifications
- Object Classification Code:
- N/A
- Etim 5:
- Ec002498 - Accessories For Low-Voltage Switch Technology
