Description
General Information
- Extended Product Type:
- PS1-4-0-65
- Product ID:
- 1SAM201906R1104
- EAN:
- 4013614400704
- Catalog Description:
- PS1-4-0-65 Busbar
- Long Description:

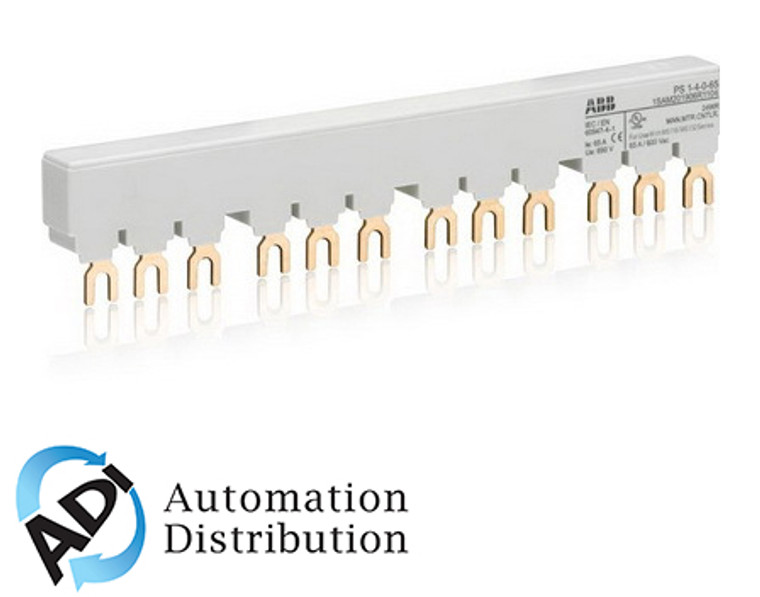

- PS1-4-0-65 3-phase busbars ensure a quick and safe connection of 4 MS132 or MS116 manual motor starters without lateral auxiliary contacts and are therefore a cost effective solution. The rated current is 65 A.
Categories
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85369010
Popular Downloads
- Data Sheet, Technical Information:
- 1SBC100214C0202
- Instructions and Manuals:
- 2CDC131011M6802
2CDC131034M6801
2CDC131022M6802
- Instructions and Manuals (Part 3):
- 1SBC100214C0202
- CAD Dimensional Drawing:
- 2CDC001079B0201
- Dimension Diagram:
- 1SAM200450F0003
Dimensions
- Product Net Width:
- 176.5 mm
- Product Net Height:
- 32.3 mm
- Product Net Depth / Length:
- 13 mm
- Product Net Weight:
- 0.077 kg
Technical
- Rated Operational Voltage:
- 690 V AC
250 V DC
- Rated Operational Current (Ie):
- 65 A
- Rated Impulse Withstand Voltage (Uimp):
- 6 kV
- Rated Short-time Withstand Current Low Voltage (Icw):
- 100 kA
- Number of Mountable Devices:
- 4
- Number of Lateral Auxiliary Contacts:
- 0
- Number of Phases:
- 3
- Degree of Protection:
- IP20
- Pollution Degree:
- 3
- Connection Type:
- Fork
- Standards:
- IEC/EN 60947-1
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
- Product Name:
- Busbar
- Suitable For:
- MS116
MS132
- Suitable for Product Class:
- Manual Motor Starter
- Accessory Group:
- Electrical
- Accessory Type:
- 3-Phase Busbar
Technical UL/CSA
- Maximum Operating Voltage UL/CSA:
- Main Circuit 600 V AC
Environmental
- Ambient Air Temperature:
- Operation -25 ... +70 °C
Storage -50 ... +80 °C
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Certificates and Declarations (Document Number)
- cUL Certificate:
- 1SAA963001-1701
- Declaration of Conformity - CE:
- 1SAD101100-3411
- Declaration of Conformity - UKCA:
- 1SAD201100-3411
- Instructions and Manuals:
- 2CDC131011M6802
2CDC131034M6801
2CDC131022M6802
- REACH Declaration:
- 1SAA963005-4502
- RoHS Information:
- 1SAA963006-4502
- UL Certificate:
- E121190-20000619
Container Information
- Package Level 1 Width:
- 80 mm
- Package Level 1 Depth / Length:
- 181 mm
- Package Level 1 Height:
- 46 mm
- Package Level 1 Gross Weight:
- 0.808 kg
- Package Level 1 EAN:
- 4013614488085
- Package Level 1 Units:
- box 10 piece
Classifications
- Object Classification Code:
- W
- ETIM 4:
- EC002498 - Accessories for low-voltage switch technology
- ETIM 5:
- EC000215 - Phase busbar
- ETIM 6:
- EC000215 - Phase busbar
- ETIM 7:
- EC000215 - Phase busbar
- ETIM 8:
- EC000215 - Phase busbar
- eClass:
- V11.0 : 27371306
- UNSPSC:
- 39121117
- IDEA Granular Category Code (IGCC):
- 4378 >> Phase busbar
