ABB PSE25-600-70 Softstarter: Compact, Efficient Solution for Frequent Start/Stop Applications with Built-in Bypass and Modbus RTU Communication
ABB
$886.34
(No reviews yet)
Write a Review
Write a Review
ABB
ABB PSE25-600-70 Softstarter: Compact, Efficient Solution for Frequent Start/Stop Applications with Built-in Bypass and Modbus RTU Communication

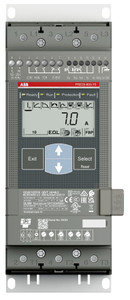

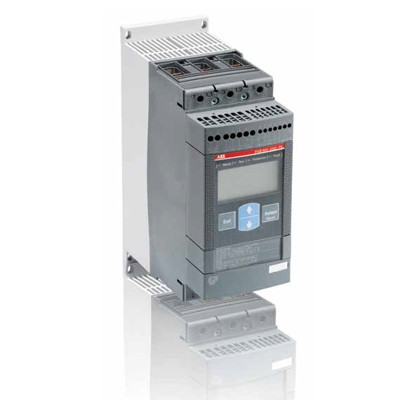

The ABB PSE25-600-70 is a compact and efficient softstarter designed for applications requiring frequent starts and stops. It offers a reliable solution with its soft start and stop features, making it ideal for installations where space is limited. The PSE25-600-70 operates with a maximum current of 25 A and supports an operational voltage range of 208 to 600 V AC. It is equipped with a built-in bypass to reduce energy loss at full speed, ensuring energy efficiency. The device features a two-phase control system with voltage or torque ramp options, and it includes a relay output for RUN, TOR, and Event signals. Additional functionalities include current limit, kickstart, analog output, end-of-life (EOL) indication, underload, and locked rotor protection. The PSE25-600-70 is user-friendly with an illuminated display that uses symbols for language neutrality, and it offers optional external keypad compatibility with an IP66 rating. Communication with the PSE can be achieved through hardwire inputs or the built-in Modbus RTU fieldbus communication. This softstarter is well-suited for small to medium-sized three-phase motors, making it an excellent choice for pumps, fans, compressors, and conveyors.
- Spec Sheet:
- View
