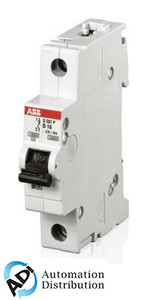

ABB S201P-Z10

ABB S201P-Z10

ABB
SKU:
S201P-Z10
$88.44
Condition:
New
Current Stock:
Description

Overview

ABB

Miniature Circuit Breakers, S200P Series

Item# S201P-Z10 - Circuit Breaker, 1-P, 10A

S200P Series Information
  • Supplemental Protector
  • Use as Overcurrent Protection
  • UL 1077 - E76126
  • K, Z Trip Characteristics
  • Finger Safe Terminals
The S200P Series of miniature circuit breakers from ABB offer a compact solution to your protection requirements. These miniature breakers are current limiting, DIN rail mounted and can offer a good equivalent to fused systems. Application specific trip curves of K and Z, provide maximum circuit protection. A wide range of accessories will complete the installation including shunt trips, auxiliary contacts, alarm contacts, undervoltage release, busbars and much more.

  • 480Y/277 VAC
  • 0.2 to 63 Amps
  • Line and Load Terminals Included

Specifications

Item Number:
S201P-Z10
UPC:
662019169231
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Miniature
Series:
S200P
Poles:
1
Amps:
10
UL Standard:
1077
Trip Curve:
Z
Terminal Type:
Screw
Max Voltage:
253 VAC;72 VDC
Shunt Trip:
Optional
Protection:
Supplemental
Auxiliary Switch:
Optional
Undervoltage Release:
Optional
Terminals Included:
Line / Load
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
DIN Rail
Neutral Pole:
No
kAIC @ 240 VAC:
10
CSA Standard:
22.2
IEC Standard:
60898, 60947-2
kAIC @ 120 VAC:
10
kAIC @ 277 VAC:
10
Alarm Switch:
Optional
Busbar:
Optional
Approvals:
UL;CSA
H x W x D:
3.35 in x .69 in x 2.98 in
  Net Weight:
4.96 OZ
  Gross Weight:
4.9442 OZ
