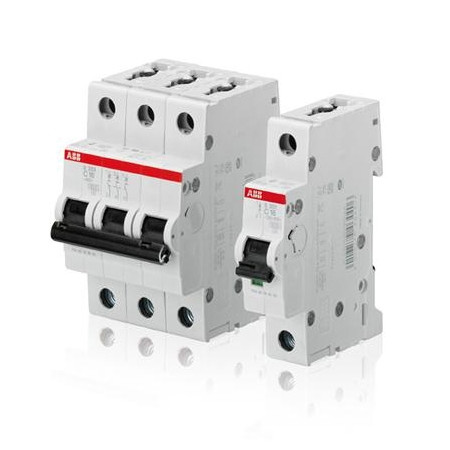

ABB S201U-K1

ABB S201U-K1

ABB
SKU:
S201U-K1
$116.69
Condition:
New
Current Stock:
Description

Overview

ABB

Miniature Circuit Breakers, S200U Series

Item# S201U-K1 - Circuit Breaker, 1-P, 1A/240VAC, K, UL489 Listed, 10KAIC, DIN Mount

S200U Series Information
  • Branch Circuit Protector
  • Use as Overcurrent Protection
  • UL 489 - E212323
  • K, Z Trip Characteristics
  • Finger Safe Terminals
The S200U Series of miniature circuit breakers from ABB offer a compact solution to your protection requirements. These miniature breakers are current limiting, DIN rail mounted and can offer a good equivalent to fused systems. Application specific trip curves of K and Z, provide maximum circuit protection. A wide range of accessories will complete the installation including shunt trips, auxiliary contacts, alarm contacts, undervoltage release, busbars and much more.

  • 240 VAC
  • 0.2 to 63 Amps
  • Line and Load Terminals Included
  • Ring Tongue Styles Available
  • Optional Foot Mounting Kit

Specifications

Item Number:
S201U-K1
UPC:
662019169446
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Miniature
Series:
S200U
Poles:
1
Amps:
1
UL Standard:
489
Trip Curve:
K
Terminal Type:
Screw
Max Voltage:
240 VAC;277 VAC
Shunt Trip:
Optional
Protection:
Branch Circuit
Auxiliary Switch:
Optional
Undervoltage Release:
No
Terminals Included:
Line / Load
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
DIN Rail
Neutral Pole:
No
kAIC @ 240 VAC:
10
CSA Standard:
22.2
IEC Standard:
60898, 60947-2
kAIC @ 120 VAC:
10
kAIC @ 277 VAC:
10
Alarm Switch:
Optional
Busbar:
Optional
Approvals:
UL;CSA
H x W x D:
3.46 in x .69 in x 2.98 in
  Net Weight:
4.96 OZ
  Gross Weight:
4.9442 OZ
