ABB
Miniature Circuit Breakers, S200U Series

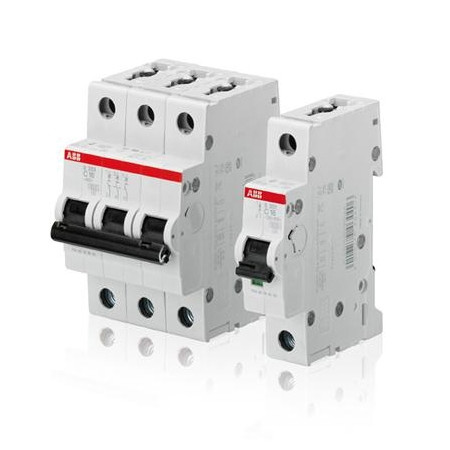

Item# S201U-K25 - Circuit Breaker, 1-P, 25A/240VAC, K, UL489 Listed, 10KAIC, DIN Mount
S200U Series Information
- Branch Circuit Protector
- Use as Overcurrent Protection
- UL 489 - E212323
- K, Z Trip Characteristics
- Finger Safe Terminals
- 240 VAC
- 0.2 to 63 Amps
- Line and Load Terminals Included
- Ring Tongue Styles Available
- Optional Foot Mounting Kit
Specifications
Item Number:
S201U-K25
UPC:
6620191694610
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Miniature
Series:
S200U
Poles:
1
Amps:
25
UL Standard:
Trip Curve:
Terminal Type:
Screw
Max Voltage:
240 VAC;277 VAC
Shunt Trip:
Optional
Protection:
Branch Circuit
Auxiliary Switch:
Optional
Undervoltage Release:
No
Terminals Included:
Line / Load
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
DIN Rail
Neutral Pole:
No
kAIC @ 240 VAC:
10
CSA Standard:
22.2
IEC Standard:
60898, 60947-2
kAIC @ 120 VAC:
10
kAIC @ 277 VAC:
10
Alarm Switch:
Optional
Busbar:
Optional
Approvals:
UL;CSA
H x W x D:
3.46 in x .69 in x 2.98 in
Net Weight:
4.9442 OZ
Gross Weight:
4.8 OZ
