ABB

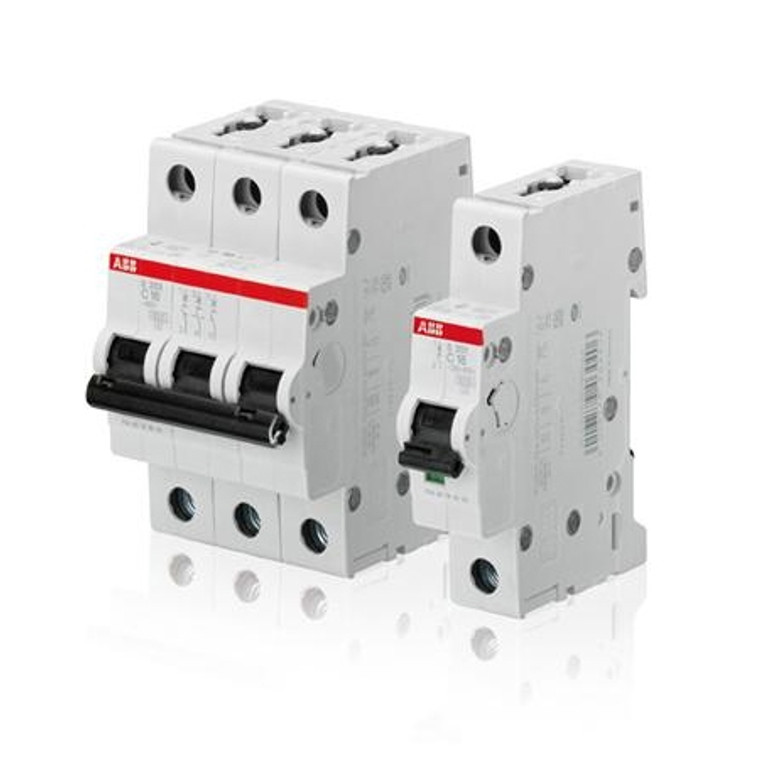

ABB S201UDC-Z15 s200udc mcb 1p z 15a 60vdc bcpd

(No reviews yet) Write a Review
SKU:
S201UDC-Z15
MPN:
S201UDC-Z15
Condition:
New
Spec Sheet:
View
  • ABB S201UDC-Z15 s200udc mcb 1p z 15a 60vdc bcpd
  • ABB S201UDC-Z15 s200udc mcb 1p z 15a 60vdc bcpd
$145.51

Description

Overview

Abb

Miniature Circuit Breakers, S200Udc Series

Item# S201Udc-Z15 - S200Udc Circuit Breaker 1P Z 15A 60Vdc Bcpd

S200Udc Series Information
  • 1 To 63 Amps
  • K And Z Trip Characteristics
  • Din Rail Mount
  • Ul489 Rated
System Pro M Compact S200Udc Current Limiting Miniature Circuit Breakers Are Specially Designed For Dc Applications In The Scope Of Ul489. They Have Two Different Tripping Mechanisms, The Delayed Thermal Tripping Mechanism For Overload Protection And The Electromechanic Tripping Mechanism For Short Circuit Protection. They Are Available In K And Z Characteristics, 1P And 2Pconfigurations And Rated Currents Up To 63A. The Short Circuit Current Rating Sccr Acc. Ul489 Is 14 Ka. The S200Udc Is Suitable For Dc Voltages Up To 125 Vdc (2 Pole). All Mcbs Of The Product Range S200Udc Comply With Ul489, Allowing The Use For Commercial And Industrial Applications.

Specifications

Item Number: &Nbsp;
S201Udc-Z15
Upc: &Nbsp;
804325570138
Brand:
Abb
Item Category:
Circuit Breakers
Subcategory:
Miniature
Series:
S200Udc
Poles:
1
Amps:
15
Ul Standard:
489&Nbsp;&Nbsp;
Trip Curve:
Z&Nbsp;&Nbsp;
Terminal Type:
Screw
Max Voltage:
60 Vdc
Shunt Trip:
Optional
Protection:
Branch Circuit
Auxiliary Switch:
Optional
Undervoltage Release:
No
Terminals Included:
Line / Load
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
Din Rail
Neutral Pole:
No
Csa Standard:
22.2
Kaic @ 60 Vdc:
14
Alarm Switch:
Optional
Busbar:
Optional
Approvals:
Ul;Csa
&Nbsp;&Nbsp;Net Weight:
4.8081 Oz
&Nbsp;&Nbsp;Gross Weight:
4.8081 Oz
