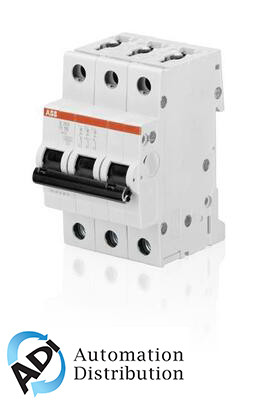

ABB S203-D50

ABB S203-D50

ABB
SKU:
S203-D50
$311.16
Condition:
New
Current Stock:
Description

Overview

ABB

Miniature Circuit Breakers, S200 Series

Item# S203-D50 - Circuit Breaker, 3-P, 50A/480V, D, 480Y/277VAC, UL1077 Recognized, DIN Mount

S200 Series Information
  • Supplemental Protector
  • Use as Overcurrent Protection
  • UL 1077 - E76126
  • B, C, D, K Trip Characteristics
  • AC Rated
The S200 Series of miniature circuit breakers from ABB offer a compact solution to your protection requirements. These miniature breakers are current limiting, DIN rail mounted and can offer a good equivalent to fused systems. Application specific trip curves of B, C, D and K, provide maximum circuit protection. A wide range of accessories will complete the installation including shunt trips, auxiliary contacts, alarm contacts, undervoltage release, busbars and much more.

  • 480Y/277 VAC
  • 0.5 to 63 Amps
  • Line and Load Terminals Included
  • Ring Tongue Styles Available
  • Finger Safe Terminals
  • Optional Front Mounting Kit

Specifications

Item Number:
S203-D50
UPC:
662019171401
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Miniature
Series:
S200
Poles:
3
Amps:
50
UL Standard:
1077
Trip Curve:
D
Terminal Type:
Screw
Max Voltage:
480 VAC;125 VDC
Shunt Trip:
Optional
Protection:
Supplemental
Auxiliary Switch:
Optional
Undervoltage Release:
Optional
Terminals Included:
Line / Load
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
DIN Rail
Neutral Pole:
No
kAIC @ 240 VAC:
10
CSA Standard:
22.2
IEC Standard:
60898, 60947-2
kAIC @ 277/480 VAC:
6
kAIC @ 60 VDC:
10
kAIC @ 125 VDC:
10
Alarm Switch:
Optional
Busbar:
Optional
Approvals:
UL;CSA
H x W x D:
3.35 in x 2.07 in x 2.98 in
  Net Weight:
15.6943 oz
  Gross Weight:
15.6943 oz
