Description
Overview
ABB

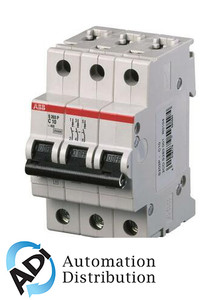

Miniature Circuit Breakers, S200P Series
Item# S203P-D1 - Circuit Breaker
S200P Series Information
- Supplemental Protector
- Use as Overcurrent Protection
- UL 1077 - E76126
- K, Z Trip Characteristics
- Finger Safe Terminals
- 480Y/277 VAC
- 0.2 to 63 Amps
- Line and Load Terminals Included
Specifications
Item Number:
S203P-D1
UPC:
662019432335
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Miniature
Series:
S200P
Poles:
3
Amps:
1
UL Standard:
Trip Curve:
Terminal Type:
Screw
Max Voltage:
440 VAC
Shunt Trip:
Optional
Protection:
Supplemental
Auxiliary Switch:
Optional
Undervoltage Release:
Optional
Terminals Included:
Line / Load
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
DIN Rail
Neutral Pole:
No
CSA Standard:
22.2
IEC Standard:
60898, 60947-2
kAIC @ 277/480 VAC:
10
Alarm Switch:
Optional
Busbar:
Optional
Approvals:
UL;CSA
H x W x D:
3.46 in x 2.07 in x 2.72 in
Net Weight:
14.8151 OZ
Gross Weight:
15.3442 OZ
