Description
Overview
ABB
Miniature Circuit Breakers, S800 Series

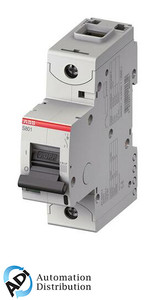

Item# S801S-K100 - Circuit Breaker 1-P K 100A
S800 Series Information
- Breakers carry CSA, IEC, and CE agency approvals
- Offers a compact solution to circuit protection
- Thermal-magnetic trip protection Breakers
- Fast breaking time (2.3-2.5 ms)
- DIN rail mounting solution
The S800 high performance MCB offers a compact solution to circuit protection. The S800 devices are IEC tested current limiting and DIN rail mounted. The S800 is available with application-specific trip characteristics to provide maximum circuit protection.
Specifications
Item Number:
S801S-K100
UPC:
804325459921
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Miniature
Series:
S800
Poles:
1
Amps:
100
Trip Curve:
Terminal Type:
Screw
Max Voltage:
690 VAC;125 VDC
Terminals Included:
Line / Load
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
DIN Rail
Neutral Pole:
No
IEC Standard:
60947-2
H x W x D:
3.74 in x 1.04 in x 3.48 in
Net Weight:
9.2986 OZ
Gross Weight:
9.2986 OZ
