Description
Overview
ABB
Miniature Circuit Breakers, S800 Series

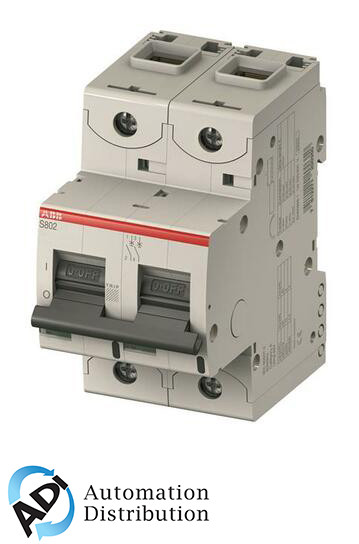

Item# S802S-B125 - Circuit Breaker 2-P B 125A
S800 Series Information
- Breakers carry CSA, IEC, and CE agency approvals
- Offers a compact solution to circuit protection
- Thermal-magnetic trip protection Breakers
- Fast breaking time (2.3-2.5 ms)
- DIN rail mounting solution
The S800 high performance MCB offers a compact solution to circuit protection. The S800 devices are IEC tested current limiting and DIN rail mounted. The S800 is available with application-specific trip characteristics to provide maximum circuit protection.
Specifications
Item Number:
S802S-B125
UPC:
804325460699
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Miniature
Series:
S800
Poles:
2
Amps:
125
Trip Curve:
Terminal Type:
Screw
Max Voltage:
690 VAC;250 VDC
Terminals Included:
Line / Load
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
DIN Rail
Neutral Pole:
No
IEC Standard:
60898, 60947-2
H x W x D:
3.74 in x 2.09 in x 3.48 in
Net Weight:
1 lb 2 oz
Gross Weight:
1 lb 2 oz
