Abb

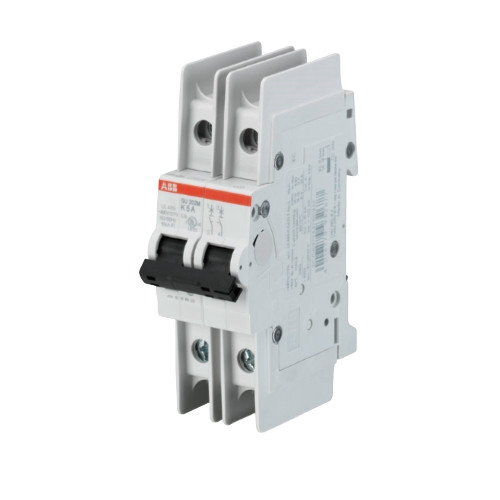

Miniature Circuit Breakers, Su200M Series
Item# Su202M-C5 - Ul489 Mcb 2P C 5A 480/277
Su200M Series Information
- Available With Variable Depth Handle Mechanism
- Fast Breaking Time (2.3 2.5 Ms)
- Wide Range Of Accessories
- Multi-Function Terminals
- Bus Connection System
- Finger Safe Terminals
- Din Rail Mounting
Specifications
Item Number: &Nbsp;
Su202M-C5
Upc: &Nbsp;
888614422407
Brand:
Abb
Item Category:
Circuit Breakers
Subcategory:
Miniature
Series:
Su200M
Poles:
2
Amps:
5
Ul Standard:
Trip Curve:
Terminal Type:
Screw
Max Voltage:
240 Vac;480Y/277 Vac;48 Vdc;96 Vdc
Shunt Trip:
Optional
Protection:
Branch Circuit
Auxiliary Switch:
Optional
Undervoltage Release:
No
Terminals Included:
Line / Load
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
Din Rail
Neutral Pole:
No
Kaic @ 240 Vac:
10
Csa Standard:
22.2
Iec Standard:
60947-2
Kaic @ 277/480 Vac:
10
Alarm Switch:
Optional
Busbar:
Optional
Approvals:
Ul;Csa
Rohs:
No
H X W X D:
4.37 In X 1.38 In X 2.72 In
