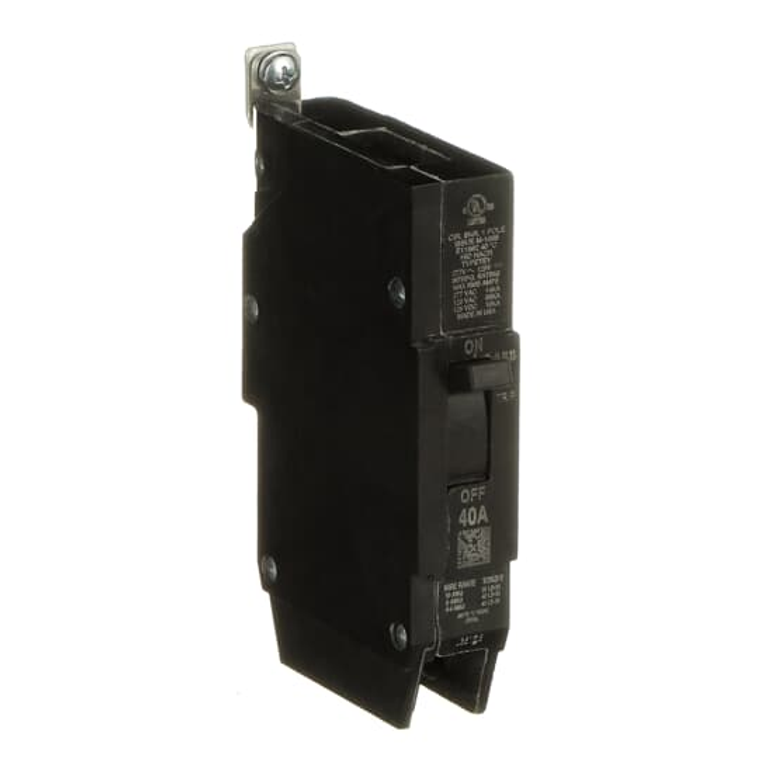

ABB TEY140 1-Pole 40 Amp Circuit Breaker for Grounded 480Y/277 Vac Systems with Bolt-On Mounting and Quick-Make/Quick-Break Mechanisms

ABB TEY140 1-Pole 40 Amp Circuit Breaker for Grounded 480Y/277 Vac Systems with Bolt-On Mounting and Quick-Make/Quick-Break Mechanisms

ABB
SKU:
TEY140
|
UPC:
783164182132
Availability:
Commonly Stocked at Factory
$204.12
Condition:
New
Current Stock:
Description
The ABB TEY140 is a compact, one-inch wide per pole circuit breaker designed for grounded 480Y/277 Vac systems. Its bolt-on mounting base accessory allows for versatile applications, making it ideal as a lug-lug breaker. This model features Quick-make / Quick-break mechanisms, common trip bars, and an easy-to-spot trip indication, ensuring both safety and reliability. Available in 1, 2, and 3 pole versions, the TEY circuit breakers can also be customized with auxiliary contact and shunt trip accessories. The TEY140 specifically offers a 1 pole, 40 amp capacity, providing robust protection for your electrical systems.
Additional Information
Number Of Poles:
1
Standard:
E11592
Trip Type:
LI
Sub Brand:
TEY
Brand Name:
TEY / Q-Line (Bolt-On)
Load Rating:
HACR / HID
Application:
Thermal Magnetic
Connection:
#14-2/0
Trip Range:
Non-Interchangeable
Interrupt Rating:
14kA@120/240 Vac / 14kA@240 Vac / 14kA@277 Vac / 65kA@120 Vac
Amperage Rating:
40A
Spec Sheet:
View
