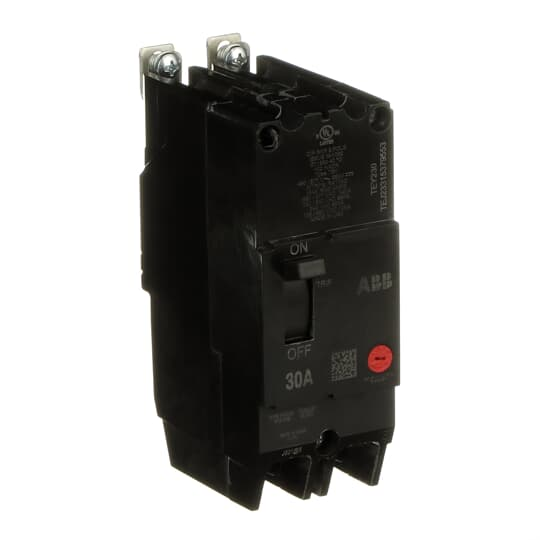

ABB TEY230 Tey 2 Pole 30 Amp Circuit Breaker - Compact Design with Quick-Make/Quick-Break Mechanism for Grounded 480Y/277 Vac Systems
ABB
$610.78
The ABB TEY230 Tey 2 Pole 30 Amp circuit breaker is designed for optimal performance in grounded 480Y/277 Vac systems. Its compact, one-inch wide per pole design allows for efficient use of space, while the bolt-on mounting base accessory provides versatility for various applications as a lug-lug breaker. This circuit breaker is equipped with Quick-make / Quick-break mechanisms, ensuring rapid response and enhanced safety. The common trip bars and easy-to-spot trip indication further enhance its reliability, making it a dependable choice for electrical safety. Available in 1, 2, and 3 pole versions, the TEY series can also be customized with auxiliary contact and shunt trip accessories to meet specific needs. The TEY230 model specifically offers a robust 30 Amp capacity, making it ideal for a wide range of electrical applications.
- Connection:
- 14-8 kcmil / 12-8 kcmil
- Load Rating:
- HACR / HID
- Brand Name:
- TEY / Q-Line (Bolt-On)
- Interrupt Rating:
- 14kA@277 Vac / 65kA@120 Vac / 65kA@120/240 Vac / 65kA@240 Vac
- Standard:
- E11592
- Amperage Rating:
- 30A
- Trip Type:
- LI
- Application:
- Thermal Magnetic
- Number Of Poles:
- 2
- Sub Brand:
- TEY
- Trip Range:
- Non-Interchangeable
- Spec Sheet:
- View
