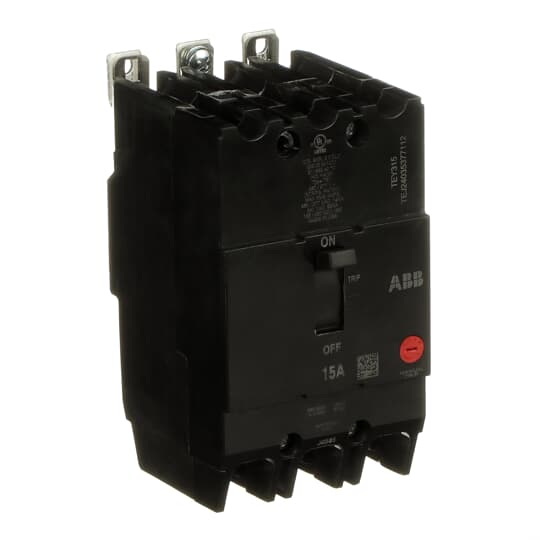

ABB TEY315 3 Pole 15 Amp Circuit Breaker with Quick-Make/Quick-Break Mechanism and Bolt-On Mounting for 480Y/277 Vac Systems
ABB
$893.42
The ABB TEY315 is a compact, one-inch wide per pole circuit breaker designed for grounded 480Y/277 Vac systems. Its bolt-on mounting base accessory allows for versatile applications, making it ideal as a lug-lug breaker. This 3 pole, 15 amp breaker features Quick-make / Quick-break mechanisms, common trip bars, and an easy-to-spot trip indication for enhanced safety and reliability. The TEY series offers flexibility with available auxiliary contact and shunt trip accessories, catering to a variety of electrical needs.
- Trip Range:
- Non-Interchangeable
- Connection:
- 14-8 kcmil / 12-8 kcmil
- Sub Brand:
- TEY
- Number Of Poles:
- 3
- Amperage Rating:
- 15A
- Application:
- Thermal Magnetic
- Brand Name:
- TEY / Q-Line (Bolt-On)
- Trip Type:
- LI
- Interrupt Rating:
- 14kA@277 Vac / 65kA@120 Vac / 65kA@120/240 Vac / 65kA@240 Vac
- Load Rating:
- HACR / HID
- Standard:
- E11592
- Spec Sheet:
- View
