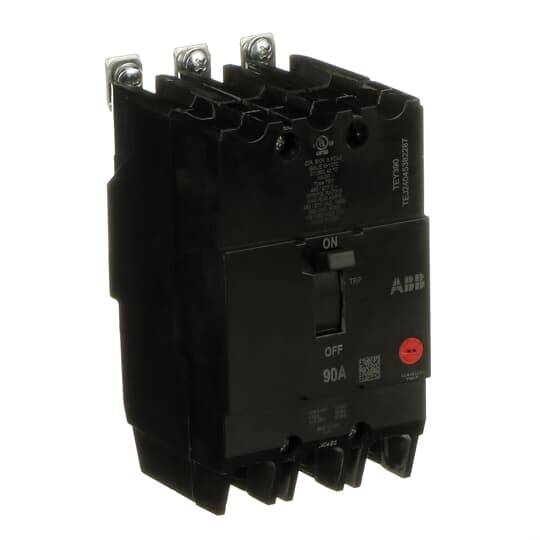

Name: ABB TEY390 Tey 3 Pole 90 Amp
Brand: ABB
SKU: TEY390
Price: 901.24 USD
Availability: InStock

ABB TEY390 Tey 3 Pole 90 Amp

(No reviews yet) Write a Review

SKU:

TEY390

MPN:

TEY390

Condition:

New

Availability:

Commonly Stocked at Factory

Frame:

TEY

Load Rating:

HACR

Trip Type:

Brand Name:

TEY / Q-Line (Bolt-On)

Amperage Rating:

90A

Connection:

14-8 kcmil / 12-8 kcmil

Interrupt Rating:

14kA@277 Vac / 65kA@120 Vac / 65kA@120/240 Vac / 65kA@240 Vac

Trip Range:

Non-Interchangeable

Sub Brand:

TEY

Number Of Poles:

Standard:

E11592

Application:

Thermal Magnetic

Spec Sheet:

View

Description

Description

The TEY is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2, and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories. CIRCUIT BREAKER THREE POLE
