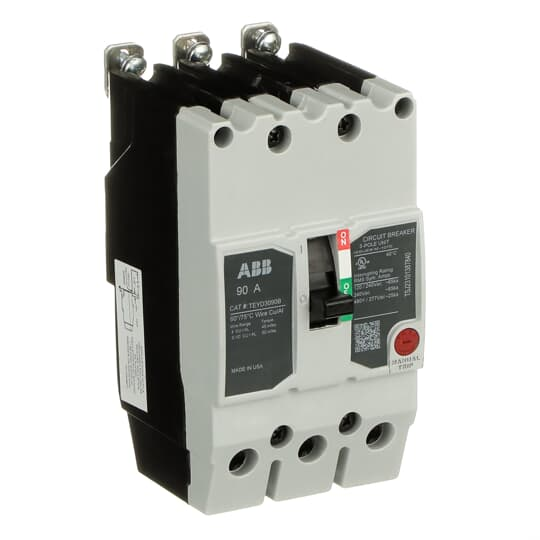

ABB TEYD3090B 90A 3-Pole Circuit Breaker - 25Ka, 480/277V, Bolt-On Design for Enhanced Safety and Reliability
ABB
$1,573.29
The ABB TEYD3090B is a robust and compact circuit breaker designed for grounded 480Y/277 Vac systems. With its one-inch wide per pole design, this "bolt-on" breaker is ideal for various applications, thanks to its versatile lug-lug configuration. It features Quick-make / Quick-break mechanisms, common trip bars, and a clear trip indication for enhanced safety and reliability. Available in 1, 2, and 3 pole versions, the TEYD series can be customized with auxiliary contact, shunt trip, undervoltage release, or bell alarm accessories. This 90A, 3-pole, 25Ka circuit breaker ensures dependable performance for your electrical systems.
- Sub Brand:
- TEYD
- Amperage Rating:
- 90A
- Number Of Poles:
- 3
- Connection:
- #4-2/0
- Trip Range:
- Yes
- Standard:
- E11592
- Interrupt Rating:
- 65kA@120/240 Vac, 65kA@240 Vac,25kA@480Y/277 Vac
- Frame:
- TEYD
- Application:
- Thermal Magnetic
- Brand Name:
- TEY / Q-Line (Bolt-On)
- Trip Type:
- LI
- Spec Sheet:
- View
