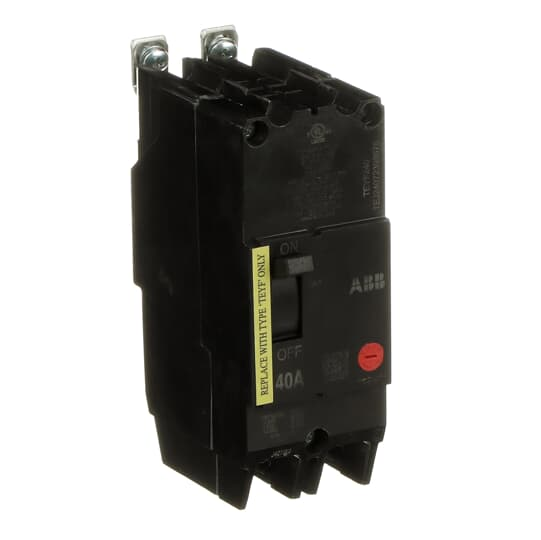

ABB TEYF240 Teyf 2 Pole 40 Amp Circuit Breaker Compact, Reliable, and Customizable for Grounded 480Y/277 Vac Systems
ABB
$791.35
The ABB TEYF240 Teyf 2 Pole 40 Amp circuit breaker is designed for optimal performance in grounded 480Y/277 Vac systems. Its compact, one-inch wide per pole design and bolt-on mounting base make it versatile for various applications as a lug-lug breaker. This model features Quick-make / Quick-break mechanisms, common trip bars, and an easy-to-spot trip indication, ensuring both safety and reliability. Available in 1, 2, and 3 pole versions, the TEYF series can be customized with auxiliary contact and shunt trip accessories to meet specific needs. The TEYF240 is a robust solution for managing electrical circuits with precision and confidence.
- Application:
- Thermal Magnetic
- Load Rating:
- HACR
- Number Of Poles:
- 2
- Frame:
- TEYF
- Sub Brand:
- TEYF
- Interrupt Rating:
- 10kA@250 Vdc / 18kA@277 Vac / 65kA@120/240 Vac / 65kA@240 Vac / 18kA@480/277 Vac
- Brand Name:
- TEY / Q-Line (Bolt-On)
- Connection:
- #10-#4
- Trip Range:
- Non-Interchangeable
- Standard:
- E11592
- Trip Type:
- LI
- Amperage Rating:
- 40A
- Spec Sheet:
- View
