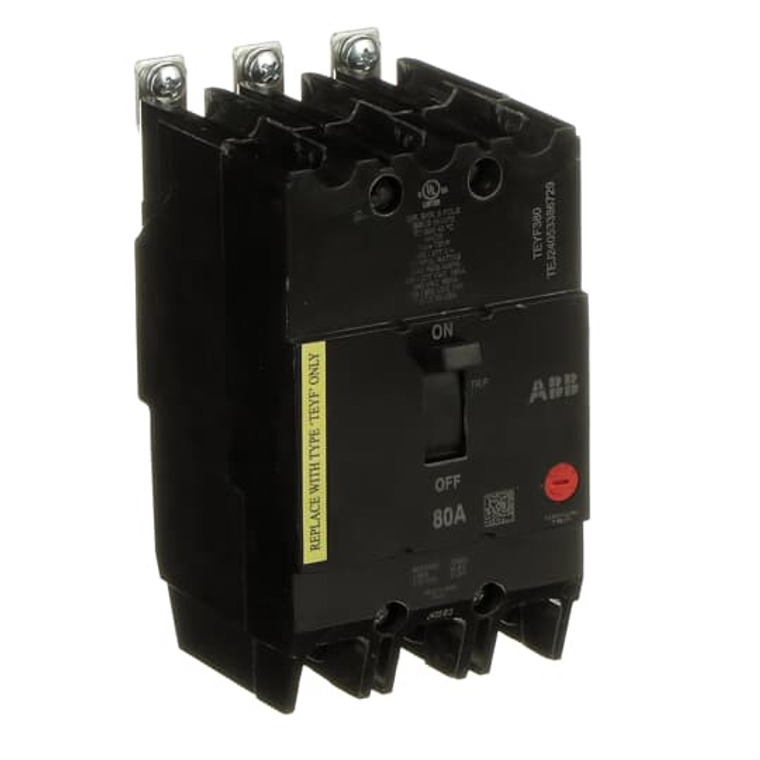

ABB TEYF380 Teyf 3 Pole 80 Amp Circuit Breaker - Compact Design with Quick-Make/Break Mechanisms and Customizable Accessories for Grounded 480y/277 Vac Systems
ABB
$1,229.43
The ABB TEYF380 Teyf 3 Pole 80 Amp circuit breaker is designed for optimal performance in grounded 480y/277 Vac systems. Its compact, one-inch wide per pole design and bolt-on mounting base make it versatile for various applications as a lug-lug breaker. This model features Quick-make / Quick-break mechanisms, common trip bars, and a clear trip indication for enhanced safety and reliability. Available in 1, 2, and 3 pole versions, the TEYF380 can be customized with auxiliary contact and shunt trip accessories to meet specific needs.
- Number Of Poles:
- 3
- Trip Type:
- LI
- Trip Range:
- Non-Interchangeable
- Amperage Rating:
- 80A
- Frame:
- TEYF
- Sub Brand:
- TEYF
- Connection:
- #4-1/0
- Standard:
- E11592
- Application:
- Thermal Magnetic
- Brand Name:
- TEY / Q-Line (Bolt-On)
- Interrupt Rating:
- 18kA@277 Vac / 65kA@120/240 Vac / 65kA@240 Vac / 18kA@480/277 Vac
- Spec Sheet:
- View
