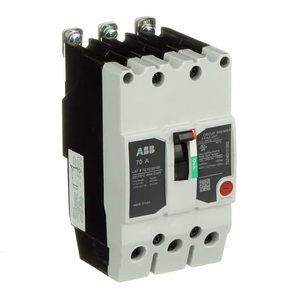

ABB TEYH3070B Teyx Circuit Breaker 3P 70A - Compact, Reliable Solution for Grounded 480Y/277 Vac Systems with Versatile Bolt-On Mounting
ABB
$2,124.42
The ABB TEYH3070B Teyx Circuit Breaker is a robust and compact solution designed for grounded 480Y/277 Vac systems. This 3-pole, 70A circuit breaker is engineered with a one-inch wide per pole design, making it an ideal choice for space-constrained applications. Its bolt-on mounting base accessory enhances versatility, allowing it to function effectively as a lug-lug breaker. Safety and reliability are prioritized with features such as Quick-make / Quick-break mechanisms, common trip bars, and a clear trip indication. The TEYH series offers flexibility with optional accessories like auxiliary contact, shunt trip, undervoltage release, or bell alarm, catering to diverse electrical needs.
- Brand Name:
- TEY / Q-Line (Bolt-On)
- Trip Range:
- Yes
- Interrupt Rating:
- 65kA@120/240 Vac, 65kA@240 Vac,35kA@480Y/277 Vac
- Sub Brand:
- TEYH
- Amperage Rating:
- 70A
- Frame:
- TEYH
- Connection:
- #4-2/0
- Standard:
- E11592
- Application:
- Thermal Magnetic
- Number Of Poles:
- 3
- Trip Type:
- LI
- Spec Sheet:
- View
