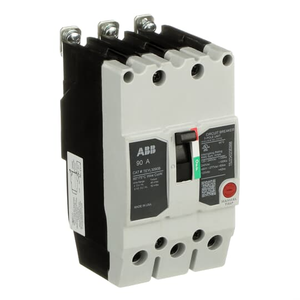

ABB TEYH3090B Teyx Circuit Breaker 3P 90A
ABB
$1,340.69
The TEY is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEYH breakers are available in 1, 2, and 3 pole versions, 2&3 pole versions can be ordered with auxiliary contact, shunt trip, undervoltage release, or bell alarm accessories. TEYX CIRCUIT BREAKER 3P 90A
- Amperage Rating:
- 90A
- Sub Brand:
- TEYH
- Trip Range:
- Yes
- Number Of Poles:
- 3
- Standard:
- E11592
- Connection:
- #4-2/0
- Application:
- Thermal Magnetic
- Frame:
- TEYH
- Brand Name:
- TEY / Q-Line (Bolt-On)
- Trip Type:
- LI
- Interrupt Rating:
- 65kA@120/240 Vac, 65kA@240 Vac,35kA@480Y/277 Vac
- Spec Sheet:
- View
