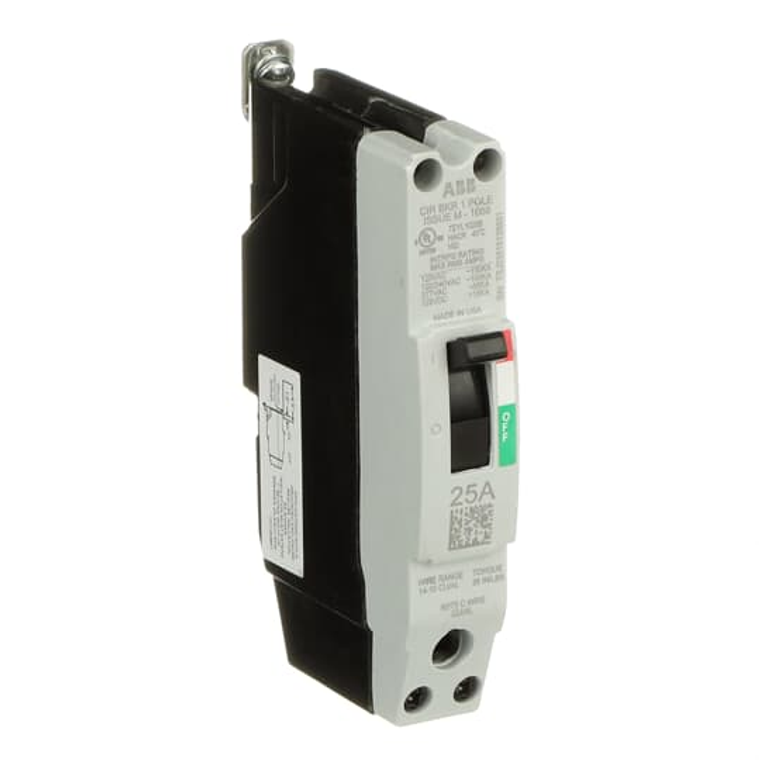

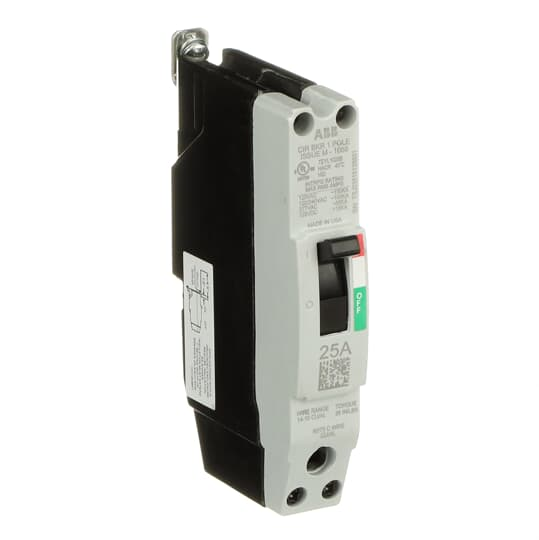

ABB TEYL1025B 25A 1-Pole Circuit Breaker - 65Ka, 480/277V, Quick-Make/Break Mechanism
ABB
$694.02
The ABB TEYL1025B is a compact, one-inch wide, bolt-on circuit breaker designed for grounded 480Y/277 Vac systems. This 25A, 1-pole breaker features a Quick-make / Quick-break mechanism, ensuring rapid response and enhanced safety. Its common trip bars and easy-to-spot trip indication provide reliable performance and user-friendly operation. The TEYL series is versatile, with options for 1, 2, and 3 pole configurations, and can be customized with auxiliary contact, shunt trip, undervoltage release, or bell alarm accessories for added functionality. Ideal for various applications, the TEYL1025B offers dependable protection and peace of mind.
- Brand Name:
- TEY / Q-Line (Bolt-On)
- Standard:
- E11592
- Trip Type:
- LI
- Amperage Rating:
- 25A
- Frame:
- TEYL
- Interrupt Rating:
- 100kA@120 Vac,100kA@120/240 Vac,65kA@277 Vac,15kA@125 Vdc
- Connection:
- #10-#4
- Trip Range:
- Yes
- Number Of Poles:
- 1
- Application:
- Thermal Magnetic
- Sub Brand:
- TEYL
- Spec Sheet:
- View
