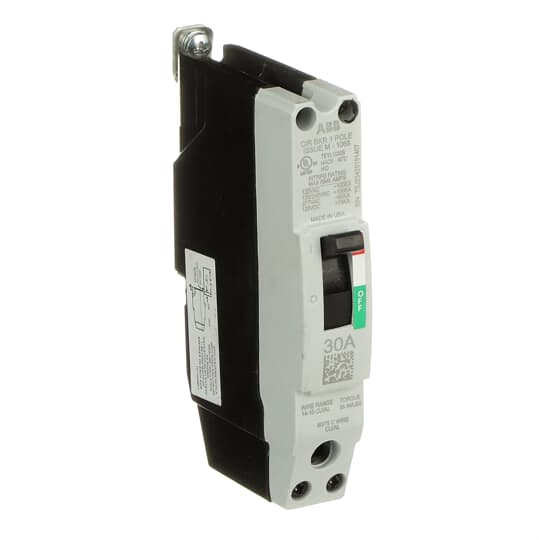

ABB TEYL1030B 30A 1-Pole Circuit Breaker - 65Ka Interrupting Capacity, Bolt-On Mounting for 480/277 Vac Systems

ABB TEYL1030B 30A 1-Pole Circuit Breaker - 65Ka Interrupting Capacity, Bolt-On Mounting for 480/277 Vac Systems

ABB
SKU:
TEYL1030B
|
UPC:
783164462296
Availability:
Commonly Stocked at Factory
$694.02
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
The ABB TEYL1030B is a compact, one-inch wide per pole circuit breaker designed for grounded 480Y/277 Vac systems. Its bolt-on mounting base accessory allows for versatile applications, making it ideal as a lug-lug breaker. This circuit breaker features Quick-make / Quick-break mechanisms, common trip bars, and an easy-to-spot trip indication, ensuring both safety and reliability. Available in 1, 2, and 3 pole versions, the TEYL series can be customized with auxiliary contact, shunt trip, undervoltage release, or bell alarm accessories for enhanced functionality. The TEYL1030B specifically offers a 30A capacity with a 65Ka interrupting rating, providing robust protection for your electrical systems.
Additional Information
Frame:
TEYL
Number Of Poles:
1
Brand Name:
TEY / Q-Line (Bolt-On)
Amperage Rating:
30A
Standard:
E11592
Application:
Thermal Magnetic
Trip Range:
Yes
Connection:
#10-#4
Sub Brand:
TEYL
Interrupt Rating:
100kA@120 Vac,100kA@120/240 Vac,65kA@277 Vac,15kA@125 Vdc
Trip Type:
LI
Spec Sheet:
View
