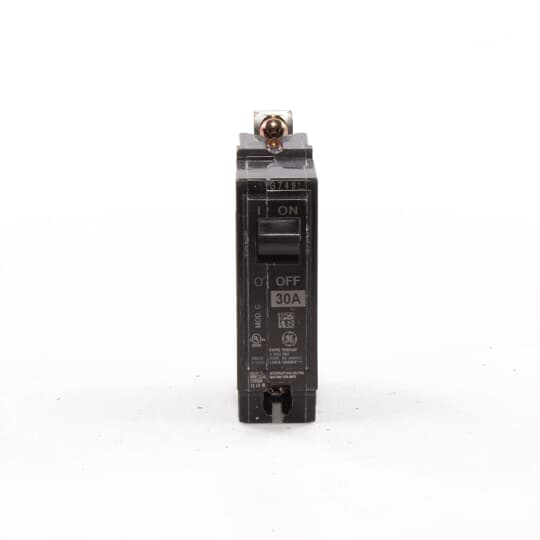

ABB THHQB1130 30A Circuit Breaker - 22Ka, 1P, 120/240V, Q Line Series

ABB
SKU:
THHQB1130
|
UPC:
783164118261
Availability:
Commonly Stocked at Factory
$155.26
Condition:
New
Current Stock:
The ABB THHQB1130 Thhqb Mcb 30A 22Ka 1P 120/240V is a robust and reliable circuit breaker designed for both residential and commercial applications. This compact, thermal-magnetic device is part of the Q Line series, known for its one-inch wide per pole design. The QB breakers are bolt-on versions, specifically crafted for secure attachment to the bus connections of load centers and lighting panels. Featuring Quick-make / Quick-break mechanisms, common trip bars, and easy-to-spot trip indication, these breakers ensure enhanced safety and reliability. Available in 1, 2, and 3 pole versions, the Q Line breakers can be customized with auxiliary contact and shunt trip accessories, and are suitable for HID applications. With a capacity of 30 Amps and a high interrupting rating of 22Ka, this circuit breaker is engineered to meet demanding electrical needs.
Application:
Thermal Magnetic
Interrupt Rating:
22kA@120 Vac / 22kA@120/240 Vac
Trip Type:
LI
Standard:
E11592
Frame:
Q-Line
Load Rating:
HACR
Amperage Rating:
30A
Number Of Poles:
1
Brand Name:
TEY / Q-Line (Bolt-On)
Sub Brand:
Q Line
Trip Range:
Non-Interchangeable
Spec Sheet:
View
