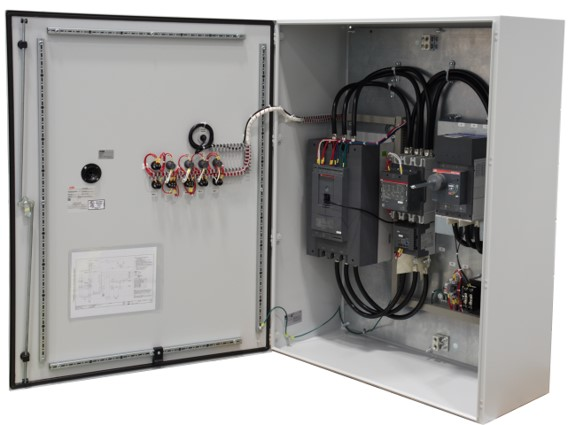

ABB X50-B4-48-XD PSTX Enclosed 50HP Motor Protection Unit with Advanced Safety Features and Extreme Duty Capabilities
ABB
$8,387.92
The ABB X50-B4-48-XD PSTX Enclosed 50HP XD N4 is a comprehensive motor protection solution designed to handle both load and network irregularities. Equipped with PT-100, earth fault protection, and over/under voltage protection, this unit ensures unparalleled motor safety. It offers three types of current limitsstandard, dual, and rampproviding full control during motor start-up, even in weaker networks. The built-in bypass saves installation time and panel space, while torque control optimizes pump start and stop efficiency. The pump cleaning feature reverses flow to clear pipes, enhancing system uptime. Key benefits include secure motor reliability, improved installation efficiency, and increased application productivity. Main features include three-phase control, operational voltage of 440 to 480 V AC, and a wide rated control supply voltage of 100-250 V, 50/60 Hz. With a rated operational current of 15
1250 A and coated circuit boards, it offers excellent pump control. Additional features include circuit breakers or fuses, a door-mounted keypad, start/stop pushbuttons, a hand-off-auto selector switch, and pilot lights for power, run, and fault status. Extreme duty features include an emergency bypass, normal-E-bypass selector switch, and E-bypass pilot light, ensuring robust performance in demanding environments.
- Voltage Rating:
- 460V
- Enclosure:
- NEMA 4
- Spec Sheet:
- View
