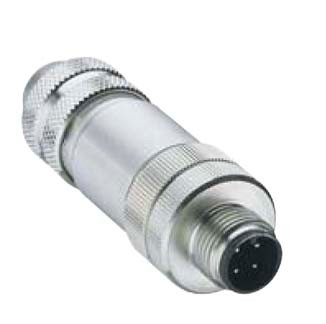

Leuze AC-MLC-HR-END Host receiver termination
Leuze
$230.00
The Leuze AC-MLC-HR-END (part no. 426127) is a host receiver termination accessory designed specifically for MLC 520 host receiver safety light curtains. It features an M12 axial male 8-pin connector for secure electrical termination and integration into safety circuits. This component supports reliable connections in safety applications requiring Performance Level e per EN ISO 13849-1 and SIL 3 per IEC 61508, including start/restart interlock (RES) and contactor monitoring (EDM).
- Application:
- Alignment and setup aid for MLC 520 Host versions
- Suitable for:
- MLC 520 host receiver safety light curtains
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Male
- No. of pins:
- 8 -pin
- Encoding:
- A-coded
- Version:
- Axial
- Degree of protection:
- IP 67
- Customs tariff number:
- 85366990
- ECLASS 5.1.4:
- 27279201
- ECLASS 8.0:
- 27440102
- ECLASS 9.0:
- 27069190
- ECLASS 10.0:
- 27440102
- ECLASS 11.0:
- 27440102
- ECLASS 12.0:
- 27440116
- ECLASS 13.0:
- 27440116
- ECLASS 14.0:
- 27440116
- ECLASS 15.0:
- 27440116
- ETIM 5.0:
- EC002635
- ETIM 6.0:
- EC002635
- ETIM 7.0:
- EC002635
- ETIM 8.0:
- EC002635
- ETIM 9.0:
- EC002635
- ETIM 10.0:
- EC002635
- Datasheet:
- View
