Large functionality in a compact design | A section of Altivar


The most cutting-edge sensorless flux vector technology is combined with versatility, dependability, and compact design in the Altivar 12 ATV12 Variable Frequency Drive VFD. This drive has an optional multi-loader that simplifies setup by making programming quick and simple, an integrated communications connector, and an easy-to-use navigation wheel on the faceplate. All of this is capable of handling applications ranging from straightforward to intricate, across several industries, and under challenging conditions.

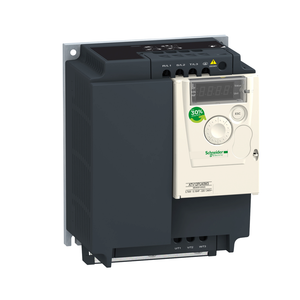

  • Schneider Electric ATV12PU40M3 Atv12 4Kw 240V 3Ph Base Plate Tb
    Add to Cart
    Quick view

    Schneider Electric ATV12PU40M3 Atv12 4Kw 240V 3Ph Base Plate Tb

    Schneider Electric

    $653.30
    Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. The drive can feed three-phase asynchronous motors. It works at a rated power up to 4kW, and a rated voltage from 200V to 240V. It has advanced PID...
    SKU:
    ATV12PU40M3
    Base Load Current At High Overload:
    16.7 A
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    4 Quadrant Operation Possible:
    FALSE
    Quantity Per Set:
    set of 1
    Continuous Output Current:
    16.7 A 4 kHz
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    Asynchronous Motor Control Profile:
    quadratic voltage/frequency ratio || sensorless flux vector control || voltage/frequency ratio (V/f)
    Acceleration And Deceleration Ramps:
    S || linear from 0 to 999.9 s || U
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    Maximum Transient Current:
    25.0 A 60 s heavy duty) || 27.6 A 2 s heavy duty)
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Speed Drive Output Frequency:
    0.5-400 Hz
    Emc Filter:
    without EMC filter
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Motor Slip Compensation:
    preset in factory || adjustable
    Noise Level:
    0 dB
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    Range Of Product:
    Altivar 12
    Time Constant:
    20 ms +/- 1 ms for reference change
    China Rohs Regulation:
    X
    Pollution Degree:
    2
    Ip Degree Of Protection:
    IP20
    Line Current:
    23.8 A 100 V heavy duty) || 19.9 A 120 V heavy duty)
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    Prospective Line Isc:
    5 kA
    Assembly Style:
    on base plate
    Data Format:
    8 bits, configurable odd, even or no parity
    With Safety Function Safe Programmable Logic:
    FALSE
    Depth:
    100.2 mm
    Maximum Horse Power Rating:
    5 hp
    Overvoltage Category:
    class III
    Discrete Output Number:
    2
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    Maximum Output Frequency:
    4 kHz
    Operating Altitude:
    <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    With Safety Function Safely Limited Position (Slp):
    FALSE
    Power Dissipation In W:
    natural 128.0 W
    Analogue Input Number:
    1
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    Nominal Switching Frequency:
    4 kHz
    Ambient Air Transport Temperature:
    -25-70 °C
    Ambient Air Temperature For Storage:
    -25-70 °C
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Marking:
    CE
    With Safety Function Safe Torque Off (Sto):
    FALSE
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Operating Position:
    vertical +/- 10 degree
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions IEC 61800-3
    Type Of Polarization:
    no impedance
    Width:
    140 mm
    Nominal Output Current:
    16.7 A
    Transmission Frame:
    RTU
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    Product Specific Application:
    simple machine
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    Tightening Torque:
    1.2 N.m
    Brake Chopper Integrated:
    FALSE
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    Maximum Output Voltage:
    240 V
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Mercury Free:
    Yes
    Rohs Exemption Information:
    Yes
    Relay Output Number:
    1
    Warranty:
    18 months
    Insulation:
    electrical between power and control
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Ambient Air Temperature For Operation:
    -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
    Height:
    184 mm
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    Number Of Addresses:
    1-247
    Braking To Standstill:
    by DC injection
    Physical Interface:
    2-wire RS 485
    Product Or Component Type:
    variable speed drive
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Analogue Output Number:
    1
    With Safety Function Safe Direction (Sdi):
    FALSE
    Net Weight:
    1.6 kg
    Network Frequency:
    50-60 Hz
    Supply Frequency:
    50/60 Hz +/- 5 %
    Apparent Power:
    8.3 kVA 240 V heavy duty)
    [Us] Rated Supply Voltage:
    200...240 V - 15...10 %
    Motor Power Kw:
    4 kW
    Communication Port Protocol:
    Modbus
    With Safety Function Safe Position (Sp):
    FALSE
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    Method Of Access:
    server Modbus serial
    Discrete Input Number:
    4
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    Regulation Loop:
    adjustable PID regulator
    Connector Type:
    1 RJ45
    Speed Range:
    45311
    Mounting Mode:
    cabinet mount
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    Brochure:
    View
    Catalog:
    View
    Datasheet:
    View
    $653.30
    Add to Cart Quick view
  • Schneider Electric ATV12HU40M3 Atv12 4Kw 240V 3Ph Heat Sink Tb
    Add to Cart
    Quick view

    Schneider Electric ATV12HU40M3 Atv12 4Kw 240V 3Ph Heat Sink Tb

    Schneider Electric

    $729.00
    This Altivar 12 variable speed drive can feed 3-phase asynchronous motors in supply line connection. It works at a rated power up to 4kW / 5hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled...
    SKU:
    ATV12HU40M3
    Net Weight:
    2 kg
    Height:
    184 mm
    Discrete Input Number:
    4
    Range Of Product:
    Altivar 12
    Assembly Style:
    with heat sink
    Maximum Horse Power Rating:
    5 hp
    With Safety Function Safe Position (Sp):
    FALSE
    Asynchronous Motor Control Profile:
    quadratic voltage/frequency ratio || voltage/frequency ratio (V/f) || sensorless flux vector control
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    Regulation Loop:
    adjustable PID regulator
    Acceleration And Deceleration Ramps:
    S || U || linear from 0 to 999.9 s
    Product Specific Application:
    simple machine
    Power Dissipation In W:
    forced cooling 128.0 W
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    Brake Chopper Integrated:
    FALSE
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    Physical Interface:
    2-wire RS 485
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Data Format:
    8 bits, configurable odd, even or no parity
    Depth:
    141.2 mm
    Ambient Air Transport Temperature:
    -25-70 °C
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Mounting Mode:
    cabinet mount
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Noise Level:
    50 dB
    Connector Type:
    1 RJ45
    Tightening Torque:
    1.2 N.m
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    Operating Altitude:
    <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
    Analogue Input Number:
    1
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    Pollution Degree:
    2
    Marking:
    CE
    Base Load Current At High Overload:
    16.7 A
    Overvoltage Category:
    class III
    Ip Degree Of Protection:
    IP20
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    Ambient Air Temperature For Operation:
    -10-50 °C without derating || 50-60 °C with current derating 2.2 % per °C
    Supply Frequency:
    50/60 Hz +/- 5 %
    Maximum Output Voltage:
    240 V
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    Time Constant:
    20 ms +/- 1 ms for reference change
    4 Quadrant Operation Possible:
    FALSE
    Warranty:
    18 months
    Continuous Output Current:
    16.7 A 4 kHz
    Quantity Per Set:
    set of 1
    Nominal Switching Frequency:
    4 kHz
    Insulation:
    electrical between power and control
    Ambient Air Temperature For Storage:
    -25-70 °C
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    Apparent Power:
    8.3 kVA 240 V heavy duty)
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    Nominal Output Current:
    16.7 A
    Motor Power Kw:
    4 kW
    Maximum Output Frequency:
    4 kHz
    With Safety Function Safe Programmable Logic:
    FALSE
    Operating Position:
    vertical +/- 10 degree
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Speed Drive Output Frequency:
    0.5-400 Hz
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    Number Of Addresses:
    1-247
    Network Frequency:
    50-60 Hz
    Method Of Access:
    server Modbus serial
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    Product Or Component Type:
    variable speed drive
    With Safety Function Safe Torque Off (Sto):
    FALSE
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    Emc Filter:
    without EMC filter
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Width:
    140 mm
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Prospective Line Isc:
    5 kA
    China Rohs Regulation:
    X
    Discrete Output Number:
    2
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Transmission Frame:
    RTU
    With Safety Function Safely Limited Position (Slp):
    FALSE
    Mercury Free:
    Yes
    Type Of Polarization:
    no impedance
    Motor Slip Compensation:
    preset in factory || adjustable
    Speed Range:
    45311
    Analogue Output Number:
    1
    Volume Of Cooling Air:
    16.4 m3/h
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    Communication Port Protocol:
    Modbus
    Relay Output Number:
    1
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions IEC 61800-3
    [Us] Rated Supply Voltage:
    200...240 V - 15...10 %
    Line Current:
    23.8 A 100 V heavy duty) || 19.9 A 120 V heavy duty)
    Braking To Standstill:
    by DC injection
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    Maximum Transient Current:
    25.0 A 60 s heavy duty) || 27.6 A 2 s heavy duty)
    Rohs Exemption Information:
    Yes
    With Safety Function Safe Direction (Sdi):
    FALSE
    Brochure:
    View
    Catalog:
    View
    Datasheet:
    View
    $729.00
    Add to Cart Quick view
  • Schneider Electric ATV12PU30M3 Atv12 3Kw 240V 3Ph Base Plate Tb
    Add to Cart
    Quick view

    Schneider Electric ATV12PU30M3 Atv12 3Kw 240V 3Ph Base Plate Tb

    Schneider Electric

    $835.36
    Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. The drive can feed three-phase asynchronous motors. It works at a rated power up to 3kW, and a rated voltage from 200V to 240V. It has advanced PID...
    SKU:
    ATV12PU30M3
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions IEC 61800-3
    [Us] Rated Supply Voltage:
    200...240 V - 15...10 %
    Speed Range:
    45311
    Nominal Output Current:
    12.2 A
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    With Safety Function Safe Direction (Sdi):
    FALSE
    Transmission Frame:
    RTU
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    Time Constant:
    20 ms +/- 1 ms for reference change
    Analogue Input Number:
    1
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Marking:
    CE
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Maximum Output Voltage:
    240 V
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    Mounting Mode:
    cabinet mount
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    Ambient Air Transport Temperature:
    -25-70 °C
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    Acceleration And Deceleration Ramps:
    S || U || linear from 0 to 999.9 s
    Operating Altitude:
    <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
    Relay Output Number:
    1
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    Method Of Access:
    server Modbus serial
    With Safety Function Safe Position (Sp):
    FALSE
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    Asynchronous Motor Control Profile:
    sensorless flux vector control || voltage/frequency ratio (V/f) || quadratic voltage/frequency ratio
    Range Of Product:
    Altivar 12
    Communication Port Protocol:
    Modbus
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    Motor Slip Compensation:
    preset in factory || adjustable
    Speed Drive Output Frequency:
    0.5-400 Hz
    Emc Filter:
    without EMC filter
    Noise Level:
    0 dB
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    Discrete Output Number:
    2
    Overvoltage Category:
    class III
    Supply Frequency:
    50/60 Hz +/- 5 %
    Width:
    140 mm
    Height:
    184 mm
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    Quantity Per Set:
    set of 1
    Analogue Output Number:
    1
    Rohs Exemption Information:
    Yes
    Continuous Output Current:
    12.2 A 4 kHz
    Depth:
    100.2 mm
    Mercury Free:
    Yes
    Discrete Input Number:
    4
    Number Of Addresses:
    1-247
    Type Of Polarization:
    no impedance
    Warranty:
    18 months
    Product Specific Application:
    simple machine
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Operating Position:
    vertical +/- 10 degree
    With Safety Function Safely Limited Position (Slp):
    FALSE
    Ambient Air Temperature For Storage:
    -25-70 °C
    Maximum Output Frequency:
    4 kHz
    Assembly Style:
    on base plate
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Ambient Air Temperature For Operation:
    -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
    China Rohs Regulation:
    X
    Net Weight:
    1.6 kg
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Insulation:
    electrical between power and control
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    Network Frequency:
    50-60 Hz
    Data Format:
    8 bits, configurable odd, even or no parity
    4 Quadrant Operation Possible:
    FALSE
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Tightening Torque:
    1.2 N.m
    Brake Chopper Integrated:
    FALSE
    With Safety Function Safe Programmable Logic:
    FALSE
    Apparent Power:
    6.6 kVA 240 V heavy duty)
    Maximum Transient Current:
    18.3 A 60 s heavy duty) || 20.1 A 2 s heavy duty)
    Regulation Loop:
    adjustable PID regulator
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    Power Dissipation In W:
    natural 94.0 W
    Motor Power Kw:
    3 kW
    With Safety Function Safe Torque Off (Sto):
    FALSE
    Braking To Standstill:
    by DC injection
    Pollution Degree:
    2
    Connector Type:
    1 RJ45
    Prospective Line Isc:
    5 kA
    Ip Degree Of Protection:
    IP20
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    Line Current:
    19.0 A 100 V heavy duty) || 15.9 A 120 V heavy duty)
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    Product Or Component Type:
    variable speed drive
    Nominal Switching Frequency:
    4 kHz
    Base Load Current At High Overload:
    12.2 A
    Physical Interface:
    2-wire RS 485
    Brochure:
    View
    Catalog:
    View
    Datasheet:
    View
    $835.36
    Add to Cart Quick view
  • Schneider Electric ATV12H055M2TQ Atv12 0.55Kw 240V 1Ph Heatsink Pack of 14
    Add to Cart
    Quick view

    Schneider Electric ATV12H055M2TQ Atv12 0.55Kw 240V 1Ph Heatsink Pack of 14

    Schneider Electric

    $4,305.35
    Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.55kW / 0.75hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and...
    SKU:
    ATV12H055M2TQ
    Time Constant:
    20 ms +/- 1 ms for reference change
    With Safety Function Safe Programmable Logic:
    FALSE
    With Safety Function Safe Torque Off (Sto):
    FALSE
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    Communication Port Protocol:
    Modbus
    Rohs Exemption Information:
    Yes
    Mercury Free:
    Yes
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    Acceleration And Deceleration Ramps:
    U || S || linear from 0 to 999.9 s
    Motor Slip Compensation:
    adjustable || preset in factory
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    Continuous Output Current:
    3.5 A 4 kHz
    Ambient Air Temperature For Operation:
    -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
    Net Weight:
    0.8 kg
    Noise Level:
    0 dB
    Maximum Horse Power Rating:
    0.75 hp
    Nominal Output Current:
    3.5 A
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    Tightening Torque:
    0.8 N.m
    Discrete Input Number:
    4
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    Network Frequency:
    50-60 Hz
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Marking:
    CE
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    Emc Filter:
    integrated
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    Brake Chopper Integrated:
    FALSE
    Prospective Line Isc:
    1 kA
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions w
    Motor Power Kw:
    0.55 kW
    Supply Frequency:
    50/60 Hz +/- 5 %
    Type Of Polarization:
    no impedance
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    Ambient Air Temperature For Storage:
    -25-70 °C
    Power Dissipation In W:
    natural 34.0 W
    Speed Range:
    45311
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    Method Of Access:
    server Modbus serial
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Analogue Input Number:
    1
    With Safety Function Safe Position (Sp):
    FALSE
    Assembly Style:
    with heat sink
    Warranty:
    18 months
    Overvoltage Category:
    class III
    Depth:
    131.2 mm
    Number Of Addresses:
    1-247
    With Safety Function Safely Limited Position (Slp):
    FALSE
    Nominal Switching Frequency:
    4 kHz
    Operating Position:
    vertical +/- 10 degree
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    Quantity Per Set:
    set of 14
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Connector Type:
    1 RJ45
    Transmission Frame:
    RTU
    Braking To Standstill:
    by DC injection
    Pollution Degree:
    2
    Apparent Power:
    1.6 kVA 240 V heavy duty)
    Ambient Air Transport Temperature:
    -25-70 °C
    Range Of Product:
    Altivar 12
    Operating Altitude:
    > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Analogue Output Number:
    1
    Maximum Output Frequency:
    4 kHz
    Base Load Current At High Overload:
    3.5 A
    Relay Output Number:
    1
    Ip Degree Of Protection:
    IP20
    Insulation:
    electrical between power and control
    Maximum Output Voltage:
    240 V
    With Safety Function Safe Direction (Sdi):
    FALSE
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    Maximum Transient Current:
    5.3 A 60 s heavy duty) || 5.8 A 2 s heavy duty)
    Data Format:
    8 bits, configurable odd, even or no parity
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Mounting Mode:
    cabinet mount
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    Asynchronous Motor Control Profile:
    sensorless flux vector control || quadratic voltage/frequency ratio || voltage/frequency ratio (V/f)
    Line Current:
    8.0 A 100 V heavy duty) || 6.7 A 120 V heavy duty)
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Product Or Component Type:
    variable speed drive
    Height:
    143 mm
    China Rohs Regulation:
    X
    Discrete Output Number:
    2
    [Us] Rated Supply Voltage:
    200...240 V - 15...10 %
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    4 Quadrant Operation Possible:
    FALSE
    Speed Drive Output Frequency:
    0.5-400 Hz
    Regulation Loop:
    adjustable PID regulator
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Physical Interface:
    2-wire RS 485
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    Width:
    72 mm
    Product Specific Application:
    simple machine
    Relative Symmetric Network Frequency Tolerance:
    0.05
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Catalog:
    View
    Datasheet:
    View
    $4,305.35
    Add to Cart Quick view
  • Schneider Electric ATV12H075M2TQ Atv12 0.75Kw 240V 1Ph Heatsink Pack of 14
    Add to Cart
    Quick view

    Schneider Electric ATV12H075M2TQ Atv12 0.75Kw 240V 1Ph Heatsink Pack of 14

    Schneider Electric

    $4,712.40
    Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and...
    SKU:
    ATV12H075M2TQ
    Asynchronous Motor Control Profile:
    quadratic voltage/frequency ratio || voltage/frequency ratio (V/f) || sensorless flux vector control
    Apparent Power:
    2.0 kVA 240 V heavy duty)
    Maximum Output Voltage:
    240 V
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Ambient Air Transport Temperature:
    -25-70 °C
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    With Safety Function Safe Torque Off (Sto):
    FALSE
    Motor Slip Compensation:
    preset in factory || adjustable
    Physical Interface:
    2-wire RS 485
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Mounting Mode:
    cabinet mount
    Time Constant:
    20 ms +/- 1 ms for reference change
    Speed Drive Output Frequency:
    0.5-400 Hz
    Transmission Frame:
    RTU
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Product Or Component Type:
    variable speed drive
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Emc Filter:
    integrated
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Operating Position:
    vertical +/- 10 degree
    Ambient Air Temperature For Storage:
    -25-70 °C
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions w
    Range Of Product:
    Altivar 12
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    Braking To Standstill:
    by DC injection
    Maximum Horse Power Rating:
    1 hp
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    Maximum Transient Current:
    6.3 A 60 s heavy duty) || 6.9 A 2 s heavy duty)
    Maximum Output Frequency:
    4 kHz
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Acceleration And Deceleration Ramps:
    U || linear from 0 to 999.9 s || S
    Number Of Addresses:
    1-247
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    China Rohs Regulation:
    X
    Tightening Torque:
    0.8 N.m
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    Depth:
    131.2 mm
    Type Of Polarization:
    no impedance
    Speed Range:
    45311
    Nominal Output Current:
    4.2 A
    Analogue Output Number:
    1
    Line Current:
    10.2 A 100 V heavy duty) || 8.5 A 120 V heavy duty)
    Discrete Output Number:
    2
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    Pollution Degree:
    2
    With Safety Function Safe Direction (Sdi):
    FALSE
    Communication Port Protocol:
    Modbus
    Continuous Output Current:
    4.2 A 4 kHz
    Base Load Current At High Overload:
    4.2 A
    Width:
    72 mm
    Mercury Free:
    Yes
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    Network Frequency:
    50-60 Hz
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    Product Specific Application:
    simple machine
    Warranty:
    18 months
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Quantity Per Set:
    set of 14
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    Assembly Style:
    with heat sink
    Nominal Switching Frequency:
    4 kHz
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    Brake Chopper Integrated:
    FALSE
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    With Safety Function Safe Programmable Logic:
    FALSE
    Operating Altitude:
    > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Analogue Input Number:
    1
    Ambient Air Temperature For Operation:
    -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    With Safety Function Safely Limited Position (Slp):
    FALSE
    Overvoltage Category:
    class III
    Ip Degree Of Protection:
    IP20
    Noise Level:
    0 dB
    Supply Frequency:
    50/60 Hz +/- 5 %
    Marking:
    CE
    Net Weight:
    0.8 kg
    4 Quadrant Operation Possible:
    FALSE
    Motor Power Kw:
    0.75 kW
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    With Safety Function Safe Position (Sp):
    FALSE
    Data Format:
    8 bits, configurable odd, even or no parity
    Method Of Access:
    server Modbus serial
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    Discrete Input Number:
    4
    Power Dissipation In W:
    natural 44.0 W
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    Prospective Line Isc:
    1 kA
    [Us] Rated Supply Voltage:
    200...240 V - 15...10 %
    Insulation:
    electrical between power and control
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Connector Type:
    1 RJ45
    Relay Output Number:
    1
    Height:
    130 mm
    Regulation Loop:
    adjustable PID regulator
    Rohs Exemption Information:
    Yes
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    Catalog:
    View
    Datasheet:
    View
    $4,712.40
    Add to Cart Quick view
  • Schneider Electric ATV12HU15M2TQ Atv12 1.5Kw 240V 1Ph Heat Sink Tb Pack of 7
    Add to Cart
    Quick view

    Schneider Electric ATV12HU15M2TQ Atv12 1.5Kw 240V 1Ph Heat Sink Tb Pack of 7

    Schneider Electric

    $3,052.35
    Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 1.5kW / 2hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and...
    SKU:
    ATV12HU15M2TQ
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    Depth:
    156.2 mm
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    Regulation Loop:
    adjustable PID regulator
    Nominal Switching Frequency:
    4 kHz
    4 Quadrant Operation Possible:
    FALSE
    Tightening Torque:
    1.2 N.m
    Acceleration And Deceleration Ramps:
    linear from 0 to 999.9 s || S || U
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    Width:
    105 mm
    Supply Frequency:
    50/60 Hz +/- 5 %
    Mounting Mode:
    cabinet mount
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Height:
    142 mm
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    Relay Output Number:
    1
    Operating Position:
    vertical +/- 10 degree
    Method Of Access:
    server Modbus serial
    Noise Level:
    45 dB
    Assembly Style:
    with heat sink
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Pollution Degree:
    2
    Apparent Power:
    3.6 kVA 240 V heavy duty)
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    Line Current:
    17.8 A 100 V heavy duty) || 14.9 A 120 V heavy duty)
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    Connector Type:
    1 RJ45
    Discrete Output Number:
    2
    Analogue Input Number:
    1
    Base Load Current At High Overload:
    7.5 A
    With Safety Function Safe Position (Sp):
    FALSE
    Analogue Output Number:
    1
    Data Format:
    8 bits, configurable odd, even or no parity
    Maximum Output Voltage:
    240 V
    Asynchronous Motor Control Profile:
    sensorless flux vector control || voltage/frequency ratio (V/f) || quadratic voltage/frequency ratio
    Motor Slip Compensation:
    adjustable || preset in factory
    Marking:
    CE
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Type Of Polarization:
    no impedance
    Number Of Addresses:
    1-247
    Time Constant:
    20 ms +/- 1 ms for reference change
    Maximum Horse Power Rating:
    2 hp
    Ambient Air Temperature For Operation:
    -10-50 °C without derating || 50-60 °C with current derating 2.2 % per °C
    Volume Of Cooling Air:
    16 m3/h
    Quantity Per Set:
    set of 7
    With Safety Function Safe Programmable Logic:
    FALSE
    Range Of Product:
    Altivar 12
    Overvoltage Category:
    class III
    With Safety Function Safe Direction (Sdi):
    FALSE
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions w
    Maximum Output Frequency:
    4 kHz
    Speed Drive Output Frequency:
    0.5-400 Hz
    Warranty:
    18 months
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    Speed Range:
    45311
    Rohs Exemption Information:
    Yes
    Brake Chopper Integrated:
    FALSE
    China Rohs Regulation:
    X
    Transmission Frame:
    RTU
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    Power Dissipation In W:
    forced cooling 72.0 W
    Braking To Standstill:
    by DC injection
    Network Frequency:
    50-60 Hz
    Motor Power Kw:
    1.5 kW
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    Operating Altitude:
    > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
    Net Weight:
    1.4 kg
    Nominal Output Current:
    7.5 A
    With Safety Function Safely Limited Position (Slp):
    FALSE
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Prospective Line Isc:
    1 kA
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Physical Interface:
    2-wire RS 485
    Continuous Output Current:
    7.5 A 4 kHz
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Product Or Component Type:
    variable speed drive
    Ip Degree Of Protection:
    IP20
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Communication Port Protocol:
    Modbus
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    Mercury Free:
    Yes
    Maximum Transient Current:
    11.2 A 60 s heavy duty) || 12.4 A 2 s heavy duty)
    Ambient Air Transport Temperature:
    -25-70 °C
    Ambient Air Temperature For Storage:
    -25-70 °C
    Insulation:
    electrical between power and control
    Product Specific Application:
    simple machine
    Discrete Input Number:
    4
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    With Safety Function Safe Torque Off (Sto):
    FALSE
    [Us] Rated Supply Voltage:
    200...240 V - 15...10 %
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Emc Filter:
    integrated
    Catalog:
    View
    Datasheet:
    View
    $3,052.35
    Add to Cart Quick view
  • Schneider Electric ATV12PU22M3 Atv12 2.2Kw 240V 3Ph Base Plate
    Add to Cart
    Quick view

    Schneider Electric ATV12PU22M3 Atv12 2.2Kw 240V 3Ph Base Plate

    Schneider Electric

    $480.41
    Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 200V to 240V AC. It is designed on a base plate for mounting on the machine...
    SKU:
    ATV12PU22M3
    Maximum Transient Current:
    15.0 A 60 s heavy duty) || 16.5 A 2 s heavy duty)
    Type Of Polarization:
    no impedance
    Time Constant:
    20 ms +/- 1 ms for reference change
    Analogue Input Number:
    1
    Pollution Degree:
    2
    With Safety Function Safe Position (Sp):
    FALSE
    Assembly Style:
    on base plate
    Line Current:
    14.9 A 100 V heavy duty) || 12.5 A 120 V heavy duty)
    Tightening Torque:
    1.2 N.m
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    [Us] Rated Supply Voltage:
    200...240 V - 15...10 %
    Product Or Component Type:
    variable speed drive
    Rohs Exemption Information:
    Yes
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    Insulation:
    electrical between power and control
    Product Specific Application:
    simple machine
    With Safety Function Safe Torque Off (Sto):
    FALSE
    Asynchronous Motor Control Profile:
    sensorless flux vector control || quadratic voltage/frequency ratio || voltage/frequency ratio (V/f)
    Operating Position:
    vertical +/- 10 degree
    Mercury Free:
    Yes
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    Maximum Horse Power Rating:
    3 hp
    With Safety Function Safely Limited Position (Slp):
    FALSE
    Speed Drive Output Frequency:
    0.5-400 Hz
    Mounting Mode:
    cabinet mount
    Connector Type:
    1 RJ45
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Base Load Current At High Overload:
    10.0 A
    Regulation Loop:
    adjustable PID regulator
    Relay Output Number:
    1
    Noise Level:
    0 dB
    Ambient Air Temperature For Operation:
    -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
    Maximum Output Voltage:
    240 V
    Overvoltage Category:
    class III
    4 Quadrant Operation Possible:
    FALSE
    Height:
    143 mm
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Apparent Power:
    5.2 kVA 240 V heavy duty)
    Number Of Addresses:
    1-247
    China Rohs Regulation:
    X
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Network Frequency:
    50-60 Hz
    Data Format:
    8 bits, configurable odd, even or no parity
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    Brake Chopper Integrated:
    FALSE
    Supply Frequency:
    50/60 Hz +/- 5 %
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    Maximum Output Frequency:
    4 kHz
    Marking:
    CE
    Range Of Product:
    Altivar 12
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    Width:
    105 mm
    Prospective Line Isc:
    5 kA
    Braking To Standstill:
    by DC injection
    Ambient Air Temperature For Storage:
    -25-70 °C
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Discrete Output Number:
    2
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Quantity Per Set:
    set of 1
    Depth:
    98.2 mm
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    Discrete Input Number:
    4
    With Safety Function Safe Programmable Logic:
    FALSE
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Analogue Output Number:
    1
    Emc Filter:
    without EMC filter
    Motor Slip Compensation:
    adjustable || preset in factory
    Continuous Output Current:
    10 A 4 kHz
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Net Weight:
    1 kg
    Speed Range:
    45311
    Power Dissipation In W:
    natural 85.0 W
    Nominal Output Current:
    0.416666666666667
    With Safety Function Safe Direction (Sdi):
    FALSE
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable <5 m || conducted emissions with addition
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Transmission Frame:
    RTU
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    Method Of Access:
    server Modbus serial
    Nominal Switching Frequency:
    4 kHz
    Operating Altitude:
    <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    Motor Power Kw:
    2.2 kW
    Communication Port Protocol:
    Modbus
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    Ambient Air Transport Temperature:
    -25-70 °C
    Acceleration And Deceleration Ramps:
    S || linear from 0 to 999.9 s || U
    Ip Degree Of Protection:
    IP20
    Physical Interface:
    2-wire RS 485
    Warranty:
    18 months
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    Brochure:
    View
    Catalog:
    View
    Datasheet:
    View
    $480.41
    Add to Cart Quick view
  • Schneider Electric ATV12PU15M3 Atv12 1.5Kw 240V 3Ph Base Plate
    Add to Cart
    Quick view

    Schneider Electric ATV12PU15M3 Atv12 1.5Kw 240V 3Ph Base Plate

    Schneider Electric

    $901.93
    Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. The drive can feed three-phase asynchronous motors. It works at a rated power up to 1.5kW, and a rated voltage from 200V to 240V. It has advanced PID...
    SKU:
    ATV12PU15M3
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Brake Chopper Integrated:
    FALSE
    Mercury Free:
    Yes
    Pollution Degree:
    2
    Ambient Air Temperature For Operation:
    -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
    With Safety Function Safely Limited Position (Slp):
    FALSE
    Noise Level:
    0 dB
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    Tightening Torque:
    1.2 N.m
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    With Safety Function Safe Torque Off (Sto):
    FALSE
    Warranty:
    18 months
    Connector Type:
    1 RJ45
    Method Of Access:
    server Modbus serial
    Product Specific Application:
    simple machine
    Maximum Output Voltage:
    240 V
    Number Of Addresses:
    1-247
    Rohs Exemption Information:
    Yes
    Power Dissipation In W:
    natural 73.0 W
    Data Format:
    8 bits, configurable odd, even or no parity
    Type Of Polarization:
    no impedance
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    Braking To Standstill:
    by DC injection
    Discrete Output Number:
    2
    Ip Degree Of Protection:
    IP20
    Nominal Output Current:
    7.5 A
    Analogue Input Number:
    1
    Motor Slip Compensation:
    adjustable || preset in factory
    With Safety Function Safe Programmable Logic:
    FALSE
    Overvoltage Category:
    class III
    With Safety Function Safe Position (Sp):
    FALSE
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    Communication Port Protocol:
    Modbus
    Product Or Component Type:
    variable speed drive
    Marking:
    CE
    Transmission Frame:
    RTU
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    Speed Range:
    45311
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Line Current:
    11.1 A 100 V heavy duty) || 9.3 A 120 V heavy duty)
    Nominal Switching Frequency:
    4 kHz
    Maximum Output Frequency:
    4 kHz
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    Asynchronous Motor Control Profile:
    voltage/frequency ratio (V/f) || sensorless flux vector control || quadratic voltage/frequency ratio
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    [Us] Rated Supply Voltage:
    200...240 V - 15...10 %
    Acceleration And Deceleration Ramps:
    U || S || linear from 0 to 999.9 s
    Speed Drive Output Frequency:
    0.5-400 Hz
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Supply Frequency:
    50/60 Hz +/- 5 %
    With Safety Function Safe Direction (Sdi):
    FALSE
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    Regulation Loop:
    adjustable PID regulator
    Base Load Current At High Overload:
    7.5 A
    Apparent Power:
    3.9 kVA 240 V heavy duty)
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable <5 m || conducted emissions with addition
    Insulation:
    electrical between power and control
    Mounting Mode:
    cabinet mount
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    Maximum Horse Power Rating:
    2 hp
    China Rohs Regulation:
    X
    Maximum Transient Current:
    11.2 A 60 s heavy duty) || 12.4 A 2 s heavy duty)
    Time Constant:
    20 ms +/- 1 ms for reference change
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Depth:
    98.2 mm
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Height:
    143 mm
    Width:
    105 mm
    Motor Power Kw:
    1.5 kW
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    Range Of Product:
    Altivar 12
    4 Quadrant Operation Possible:
    FALSE
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    Operating Position:
    vertical +/- 10 degree
    Net Weight:
    1 kg
    Assembly Style:
    on base plate
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    Ambient Air Transport Temperature:
    -25-70 °C
    Continuous Output Current:
    7.5 A 4 kHz
    Quantity Per Set:
    set of 1
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    Network Frequency:
    50-60 Hz
    Ambient Air Temperature For Storage:
    -25-70 °C
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    Discrete Input Number:
    4
    Relay Output Number:
    1
    Emc Filter:
    without EMC filter
    Prospective Line Isc:
    5 kA
    Operating Altitude:
    <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
    Physical Interface:
    2-wire RS 485
    Analogue Output Number:
    1
    Brochure:
    View
    Catalog:
    View
    Datasheet:
    View
    $901.93
    Add to Cart Quick view
  • Schneider Electric VW3A9523 Emc Plate Size 1
    Add to Cart
    Quick view

    Schneider Electric VW3A9523 Emc Plate Size 1

    Schneider Electric

    $37.50
    This EMC conformity kit is part of the Altivar Machine ATV12 and ATV320 ranges, an offer of variable speed drives for commercial equipment and simple machines. The metal plate makes the speed drive meet electromagnetic compatibility (EMC) requirements...
    SKU:
    VW3A9523
    Accessory / Separate Part Type:
    EMC conformity kits
    Warranty:
    18 months
    Product Compatibility:
    ATV12H018F1 || ATV12H018M2 || ATV12H018M3 || ATV12H037F1 || ATV12H037M2 || ATV12H037M3 || ATV12H055M2 || ATV12H075M2 || ATV12H075M3 || ATV12P037F1 || ATV12P037M2 || ATV12P037M3 || ATV12P055M2 || ATV12P075M2 || ATV12P075M3 || ATV320...C variable speed
    Kit Composition:
    fixing collars || EMC plate || screws
    Net Weight:
    0.17 kg
    Mercury Free:
    Yes
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Rohs Exemption Information:
    Yes
    China Rohs Regulation:
    X
    Range Of Product:
    Altivar Machine ATV320 || Altivar 12
    Accessory / Separate Part Destination:
    variable speed drive
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Accessory / Separate Part Category:
    mounting and fixing accessory
    Reach Free Of Svhc:
    Yes
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Brochure:
    View
    Catalog:
    View
    Datasheet:
    View
    $37.50
    Add to Cart Quick view
  • Schneider Electric ATV12H037M2TQ Atv12 0.37Kw 240V 1Ph Heat Sink Tb Pack of 14
    Add to Cart
    Quick view

    Schneider Electric ATV12H037M2TQ Atv12 0.37Kw 240V 1Ph Heat Sink Tb Pack of 14

    Schneider Electric

    $4,026.93
    Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.37kW / 0.55hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and...
    SKU:
    ATV12H037M2TQ
    Mounting Mode:
    cabinet mount
    Product Specific Application:
    simple machine
    Operating Altitude:
    > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    Method Of Access:
    server Modbus serial
    Maximum Output Voltage:
    240 V
    With Safety Function Safe Direction (Sdi):
    FALSE
    4 Quadrant Operation Possible:
    FALSE
    Nominal Switching Frequency:
    4 kHz
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Operating Position:
    vertical +/- 10 degree
    Insulation:
    electrical between power and control
    Network Frequency:
    50-60 Hz
    Regulation Loop:
    adjustable PID regulator
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Number Of Addresses:
    1-247
    Maximum Output Frequency:
    4 kHz
    Nominal Output Current:
    2.4 A
    Ambient Air Temperature For Storage:
    -25-70 °C
    With Safety Function Safe Programmable Logic:
    FALSE
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    Overvoltage Category:
    class III
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Relay Output Number:
    1
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    Range Of Product:
    Altivar 12
    Data Format:
    8 bits, configurable odd, even or no parity
    Tightening Torque:
    0.8 N.m
    Brake Chopper Integrated:
    FALSE
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    Speed Range:
    45311
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    Noise Level:
    0 dB
    Power Dissipation In W:
    natural 27.0 W
    With Safety Function Safe Position (Sp):
    FALSE
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Net Weight:
    0.7 kg
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions w
    Communication Port Protocol:
    Modbus
    Motor Slip Compensation:
    preset in factory || adjustable
    Product Or Component Type:
    variable speed drive
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    [Us] Rated Supply Voltage:
    200...240 V - 15...10 %
    Supply Frequency:
    50/60 Hz +/- 5 %
    Continuous Output Current:
    2.4 A 4 kHz
    Emc Filter:
    integrated
    Height:
    143 mm
    Base Load Current At High Overload:
    2.4 A
    Marking:
    CE
    Discrete Input Number:
    4
    With Safety Function Safely Limited Position (Slp):
    FALSE
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    With Safety Function Safe Torque Off (Sto):
    FALSE
    Depth:
    121.2 mm
    Prospective Line Isc:
    1 kA
    Asynchronous Motor Control Profile:
    quadratic voltage/frequency ratio || voltage/frequency ratio (V/f) || sensorless flux vector control
    Speed Drive Output Frequency:
    0.5-400 Hz
    Analogue Input Number:
    1
    Analogue Output Number:
    1
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Line Current:
    5.9 A 100 V heavy duty) || 4.9 A 120 V heavy duty)
    Motor Power Kw:
    0.37 kW
    Ambient Air Transport Temperature:
    -25-70 °C
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    Mercury Free:
    Yes
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Transmission Frame:
    RTU
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    Quantity Per Set:
    set of 14
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    Discrete Output Number:
    2
    Pollution Degree:
    2
    Time Constant:
    20 ms +/- 1 ms for reference change
    Acceleration And Deceleration Ramps:
    U || linear from 0 to 999.9 s || S
    Type Of Polarization:
    no impedance
    Rohs Exemption Information:
    Yes
    Ip Degree Of Protection:
    IP20
    Warranty:
    18 months
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    China Rohs Regulation:
    X
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Assembly Style:
    with heat sink
    Ambient Air Temperature For Operation:
    -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
    Connector Type:
    1 RJ45
    Apparent Power:
    1.2 kVA 240 V heavy duty)
    Braking To Standstill:
    by DC injection
    Maximum Transient Current:
    3.6 A 60 s heavy duty) || 4.0 A 2 s heavy duty)
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Maximum Horse Power Rating:
    0.55 hp
    Width:
    72 mm
    Physical Interface:
    2-wire RS 485
    Catalog:
    View
    Datasheet:
    View
    $4,026.93
    Add to Cart Quick view
  • Schneider Electric ATV12P055M2 Atv12 0.55Kw 240V 1Ph Base Plate T
    Add to Cart
    Quick view

    Schneider Electric ATV12P055M2 Atv12 0.55Kw 240V 1Ph Base Plate T

    Schneider Electric

    $307.53
    Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.55kW / 0.75hp and a rated voltage from 200V to 240V AC. It is designed on a base plate for mounting on the machine...
    SKU:
    ATV12P055M2
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    Time Constant:
    20 ms +/- 1 ms for reference change
    Maximum Horse Power Rating:
    0.75 hp
    Continuous Output Current:
    3.5 A 4 kHz
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Data Format:
    8 bits, configurable odd, even or no parity
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    Motor Slip Compensation:
    preset in factory || adjustable
    Brake Chopper Integrated:
    FALSE
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    Connector Type:
    1 RJ45
    Method Of Access:
    server Modbus serial
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    Width:
    72 mm
    Number Of Addresses:
    1-247
    Base Load Current At High Overload:
    3.5 A
    Product Specific Application:
    simple machine
    Communication Port Protocol:
    Modbus
    With Safety Function Safe Torque Off (Sto):
    FALSE
    Rohs Exemption Information:
    Yes
    Mounting Mode:
    cabinet mount
    Product Or Component Type:
    variable speed drive
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Regulation Loop:
    adjustable PID regulator
    Height:
    143 mm
    Analogue Output Number:
    1
    Transmission Frame:
    RTU
    Overvoltage Category:
    class III
    Relay Output Number:
    1
    Analogue Input Number:
    1
    Ip Degree Of Protection:
    IP20
    [Us] Rated Supply Voltage:
    200...240 V - 15...10 %
    Ambient Air Transport Temperature:
    -25-70 °C
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    Operating Position:
    vertical +/- 10 degree
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    Insulation:
    electrical between power and control
    Network Frequency:
    50-60 Hz
    Braking To Standstill:
    by DC injection
    Supply Frequency:
    50/60 Hz +/- 5 %
    With Safety Function Safe Position (Sp):
    FALSE
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    Type Of Polarization:
    no impedance
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Emc Filter:
    integrated
    Physical Interface:
    2-wire RS 485
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    China Rohs Regulation:
    X
    Nominal Output Current:
    3.5 A
    Marking:
    CE
    Discrete Output Number:
    2
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Mercury Free:
    Yes
    Depth:
    102.2 mm
    Nominal Switching Frequency:
    4 kHz
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions w
    With Safety Function Safe Programmable Logic:
    FALSE
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    Net Weight:
    0.7 kg
    Quantity Per Set:
    set of 1
    Speed Range:
    45311
    Speed Drive Output Frequency:
    0.5-400 Hz
    Line Current:
    8.0 A 100 V heavy duty) || 6.7 A 120 V heavy duty)
    Assembly Style:
    on base plate
    With Safety Function Safely Limited Position (Slp):
    FALSE
    Operating Altitude:
    > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Ambient Air Temperature For Operation:
    -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
    Range Of Product:
    Altivar 12
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    Pollution Degree:
    2
    Power Dissipation In W:
    natural 34.0 W
    Discrete Input Number:
    4
    Apparent Power:
    1.6 kVA 240 V heavy duty)
    With Safety Function Safe Direction (Sdi):
    FALSE
    Warranty:
    18 months
    Noise Level:
    0 dB
    Ambient Air Temperature For Storage:
    -25-70 °C
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    Maximum Output Voltage:
    240 V
    Tightening Torque:
    0.8 N.m
    Maximum Transient Current:
    5.3 A 60 s heavy duty) || 5.8 A 2 s heavy duty)
    4 Quadrant Operation Possible:
    FALSE
    Prospective Line Isc:
    1 kA
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    Motor Power Kw:
    0.55 kW
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Maximum Output Frequency:
    4 kHz
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    Acceleration And Deceleration Ramps:
    linear from 0 to 999.9 s || S || U
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    Asynchronous Motor Control Profile:
    voltage/frequency ratio (V/f) || sensorless flux vector control || quadratic voltage/frequency ratio
    Brochure:
    View
    Catalog:
    View
    Datasheet:
    View
    $307.53
    Add to Cart Quick view
  • Schneider Electric ATV12P037M2 Atv12 0.37Kw 240V 1Ph Base Plate Tb
    Add to Cart
    Quick view

    Schneider Electric ATV12P037M2 Atv12 0.37Kw 240V 1Ph Base Plate Tb

    Schneider Electric

    $287.64
    Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.37kW / 0.55hp and a rated voltage from 200V to 240V AC. It is designed on a base plate for mounting on the machine...
    SKU:
    ATV12P037M2
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    Communication Port Protocol:
    Modbus
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    [Us] Rated Supply Voltage:
    200...240 V - 15...10 %
    Connector Type:
    1 RJ45
    Depth:
    102.2 mm
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Discrete Output Number:
    2
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    Continuous Output Current:
    2.4 A 4 kHz
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Relay Output Number:
    1
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    Product Specific Application:
    simple machine
    Data Format:
    8 bits, configurable odd, even or no parity
    Maximum Horse Power Rating:
    0.55 hp
    Mounting Mode:
    cabinet mount
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    Operating Altitude:
    > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
    Network Frequency:
    50-60 Hz
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Power Dissipation In W:
    natural 27.0 W
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions w
    Acceleration And Deceleration Ramps:
    U || linear from 0 to 999.9 s || S
    Warranty:
    18 months
    Height:
    143 mm
    4 Quadrant Operation Possible:
    FALSE
    Analogue Input Number:
    1
    Ip Degree Of Protection:
    IP20
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    Asynchronous Motor Control Profile:
    sensorless flux vector control || quadratic voltage/frequency ratio || voltage/frequency ratio (V/f)
    Product Or Component Type:
    variable speed drive
    Maximum Output Frequency:
    4 kHz
    Base Load Current At High Overload:
    2.4 A
    Ambient Air Transport Temperature:
    -25-70 °C
    Speed Drive Output Frequency:
    0.5-400 Hz
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Line Current:
    5.9 A 100 V heavy duty) || 4.9 A 120 V heavy duty)
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Motor Slip Compensation:
    preset in factory || adjustable
    Quantity Per Set:
    set of 1
    Width:
    72 mm
    Maximum Transient Current:
    3.6 A 60 s heavy duty) || 4.0 A 2 s heavy duty)
    Regulation Loop:
    adjustable PID regulator
    Nominal Output Current:
    2.4 A
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    Overvoltage Category:
    class III
    China Rohs Regulation:
    X
    Brake Chopper Integrated:
    FALSE
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Net Weight:
    0.7 kg
    Insulation:
    electrical between power and control
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Analogue Output Number:
    1
    Maximum Output Voltage:
    240 V
    Discrete Input Number:
    4
    Method Of Access:
    server Modbus serial
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    With Safety Function Safe Torque Off (Sto):
    FALSE
    With Safety Function Safe Position (Sp):
    FALSE
    Transmission Frame:
    RTU
    Noise Level:
    0 dB
    Prospective Line Isc:
    1 kA
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    Emc Filter:
    integrated
    Marking:
    CE
    Nominal Switching Frequency:
    4 kHz
    With Safety Function Safe Programmable Logic:
    FALSE
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    Type Of Polarization:
    no impedance
    Tightening Torque:
    0.8 N.m
    Number Of Addresses:
    1-247
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    Rohs Exemption Information:
    Yes
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Physical Interface:
    2-wire RS 485
    Supply Frequency:
    50/60 Hz +/- 5 %
    Mercury Free:
    Yes
    Range Of Product:
    Altivar 12
    Pollution Degree:
    2
    Assembly Style:
    on base plate
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    With Safety Function Safe Direction (Sdi):
    FALSE
    Operating Position:
    vertical +/- 10 degree
    Braking To Standstill:
    by DC injection
    Time Constant:
    20 ms +/- 1 ms for reference change
    Motor Power Kw:
    0.37 kW
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    With Safety Function Safely Limited Position (Slp):
    FALSE
    Speed Range:
    45311
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    Apparent Power:
    1.2 kVA 240 V heavy duty)
    Ambient Air Temperature For Storage:
    -25-70 °C
    Ambient Air Temperature For Operation:
    -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    Brochure:
    View
    Catalog:
    View
    Datasheet:
    View
    $287.64
    Add to Cart Quick view
  • Schneider Electric ATV12P037M3 Atv12 0.37Kw 240V 3Ph Base Plate T
    Add to Cart
    Quick view

    Schneider Electric ATV12P037M3 Atv12 0.37Kw 240V 3Ph Base Plate T

    Schneider Electric

    $397.03
    Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. The drive can feed three-phase asynchronous motors. It works at a rated power up to 0.37kW, and a rated voltage from 200V to 240V. It has advanced...
    SKU:
    ATV12P037M3
    Nominal Switching Frequency:
    4 kHz
    Supply Frequency:
    50/60 Hz +/- 5 %
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    [Us] Rated Supply Voltage:
    200...240 V - 15...10 %
    Prospective Line Isc:
    5 kA
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    Line Current:
    3.6 A 100 V heavy duty) || 3.0 A 120 V heavy duty)
    Pollution Degree:
    2
    Speed Drive Output Frequency:
    0.5-400 Hz
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Maximum Horse Power Rating:
    0.55 hp
    Maximum Transient Current:
    3.6 A 60 s heavy duty) || 4.0 A 2 s heavy duty)
    Method Of Access:
    server Modbus serial
    Insulation:
    electrical between power and control
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Power Dissipation In W:
    natural 24.0 W
    Type Of Polarization:
    no impedance
    Motor Slip Compensation:
    preset in factory || adjustable
    Mounting Mode:
    cabinet mount
    Ip Degree Of Protection:
    IP20
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    Ambient Air Temperature For Operation:
    -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
    Assembly Style:
    on base plate
    Product Specific Application:
    simple machine
    With Safety Function Safely Limited Position (Slp):
    FALSE
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    4 Quadrant Operation Possible:
    FALSE
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with additional EMC filter environment 1 category C2 IEC 61800-3 4...12 kHz shielded motor cable <20 m || conducted emissions with additio
    Rohs Exemption Information:
    Yes
    Tightening Torque:
    0.8 N.m
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    China Rohs Regulation:
    X
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    Data Format:
    8 bits, configurable odd, even or no parity
    Network Frequency:
    50-60 Hz
    Brake Chopper Integrated:
    FALSE
    With Safety Function Safe Programmable Logic:
    FALSE
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    Operating Position:
    vertical +/- 10 degree
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    Warranty:
    18 months
    Apparent Power:
    1.2 kVA 240 V heavy duty)
    Maximum Output Voltage:
    240 V
    Motor Power Kw:
    0.37 kW
    Transmission Frame:
    RTU
    Speed Range:
    45311
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Discrete Input Number:
    4
    Maximum Output Frequency:
    4 kHz
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Time Constant:
    20 ms +/- 1 ms for reference change
    Mercury Free:
    Yes
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    With Safety Function Safe Position (Sp):
    FALSE
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    Quantity Per Set:
    set of 1
    Range Of Product:
    Altivar 12
    Asynchronous Motor Control Profile:
    voltage/frequency ratio (V/f) || quadratic voltage/frequency ratio || sensorless flux vector control
    Marking:
    CE
    With Safety Function Safe Torque Off (Sto):
    FALSE
    Relay Output Number:
    1
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Analogue Output Number:
    1
    Operating Altitude:
    <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    Height:
    143 mm
    Communication Port Protocol:
    Modbus
    Width:
    72 mm
    Number Of Addresses:
    1-247
    Noise Level:
    0 dB
    With Safety Function Safe Direction (Sdi):
    FALSE
    Net Weight:
    0.7 kg
    Product Or Component Type:
    variable speed drive
    Connector Type:
    1 RJ45
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    Discrete Output Number:
    2
    Ambient Air Transport Temperature:
    -25-70 °C
    Analogue Input Number:
    1
    Overvoltage Category:
    class III
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    Physical Interface:
    2-wire RS 485
    Ambient Air Temperature For Storage:
    -25-70 °C
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    Emc Filter:
    without EMC filter
    Braking To Standstill:
    by DC injection
    Continuous Output Current:
    2.4 A 4 kHz
    Regulation Loop:
    adjustable PID regulator
    Acceleration And Deceleration Ramps:
    U || S || linear from 0 to 999.9 s
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    Base Load Current At High Overload:
    2.4 A
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Depth:
    102.2 mm
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Nominal Output Current:
    2.4 A
    Brochure:
    View
    Catalog:
    View
    Datasheet:
    View
    $397.03
    Add to Cart Quick view
  • Schneider Electric ATV12P037F1 Atv12 0.37Kw 120V 1Ph Base Plate Tb
    Add to Cart
    Quick view

    Schneider Electric ATV12P037F1 Atv12 0.37Kw 120V 1Ph Base Plate Tb

    Schneider Electric

    $287.64
    Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. The drive can feed single-phase asynchronous motors. It works at a rated power up to 0.37kW (0.55HP), and a rated voltage from 100V to 120V. It has...
    SKU:
    ATV12P037F1
    Quantity Per Set:
    set of 1
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    Depth:
    102.2 mm
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable <5 m || conducted emissions with addition
    Nominal Switching Frequency:
    4 kHz
    4 Quadrant Operation Possible:
    FALSE
    Discrete Output Number:
    2
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    Operating Altitude:
    > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
    Operating Position:
    vertical +/- 10 degree
    Acceleration And Deceleration Ramps:
    S || linear from 0 to 999.9 s || U
    Maximum Output Frequency:
    4 kHz
    [Us] Rated Supply Voltage:
    100...120 V - 15...10 %
    Supply Frequency:
    50/60 Hz +/- 5 %
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    Maximum Horse Power Rating:
    0.55 hp
    Pollution Degree:
    2
    Speed Drive Output Frequency:
    0.5-400 Hz
    Method Of Access:
    server Modbus serial
    Braking To Standstill:
    by DC injection
    Prospective Line Isc:
    1 kA
    Tightening Torque:
    0.8 N.m
    Network Frequency:
    50-60 Hz
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Number Of Addresses:
    1-247
    With Safety Function Safe Direction (Sdi):
    FALSE
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Brake Chopper Integrated:
    FALSE
    Height:
    143 mm
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    With Safety Function Safe Programmable Logic:
    FALSE
    Regulation Loop:
    adjustable PID regulator
    Asynchronous Motor Control Profile:
    quadratic voltage/frequency ratio || voltage/frequency ratio (V/f) || sensorless flux vector control
    Emc Filter:
    without EMC filter
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    Product Or Component Type:
    variable speed drive
    Product Specific Application:
    simple machine
    Insulation:
    electrical between power and control
    Analogue Output Number:
    1
    Ambient Air Transport Temperature:
    -25-70 °C
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    China Rohs Regulation:
    X
    Maximum Output Voltage:
    240 V
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Ambient Air Temperature For Operation:
    -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
    Motor Power Kw:
    0.37 kW
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    Power Dissipation In W:
    natural 29.0 W
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Type Of Polarization:
    no impedance
    Time Constant:
    20 ms +/- 1 ms for reference change
    Line Current:
    11.4 A 100 V heavy duty) || 9.3 A 120 V heavy duty)
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    Speed Range:
    45311
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    Net Weight:
    0.7 kg
    Relay Output Number:
    1
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Apparent Power:
    1.1 kVA 240 V heavy duty)
    Marking:
    CE
    Warranty:
    18 months
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    Communication Port Protocol:
    Modbus
    Continuous Output Current:
    2.4 A 4 kHz
    Data Format:
    8 bits, configurable odd, even or no parity
    Maximum Transient Current:
    3.6 A 60 s heavy duty) || 4.0 A 2 s heavy duty)
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Transmission Frame:
    RTU
    Connector Type:
    1 RJ45
    With Safety Function Safe Position (Sp):
    FALSE
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Physical Interface:
    2-wire RS 485
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    Analogue Input Number:
    1
    Overvoltage Category:
    class III
    Assembly Style:
    on base plate
    Width:
    72 mm
    Ambient Air Temperature For Storage:
    -25-70 °C
    Mounting Mode:
    cabinet mount
    Range Of Product:
    Altivar 12
    Rohs Exemption Information:
    Yes
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    Mercury Free:
    Yes
    Discrete Input Number:
    4
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Ip Degree Of Protection:
    IP20
    Motor Slip Compensation:
    adjustable || preset in factory
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    Noise Level:
    0 dB
    Base Load Current At High Overload:
    2.4 A
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Nominal Output Current:
    2.4 A
    With Safety Function Safely Limited Position (Slp):
    FALSE
    With Safety Function Safe Torque Off (Sto):
    FALSE
    Brochure:
    View
    Catalog:
    View
    Datasheet:
    View
    $287.64
    Add to Cart Quick view
  • Schneider Electric ATV12P075M3 Atv12 0.75Kw 240V 3Ph Base Plate
    Add to Cart
    Quick view

    Schneider Electric ATV12P075M3 Atv12 0.75Kw 240V 3Ph Base Plate

    Schneider Electric

    $309.05
    Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. The drive can feed three-phase asynchronous motors. It works at a rated power up to 0.75kW, and a rated voltage from 200V to 240V. It has advanced...
    SKU:
    ATV12P075M3
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    Braking To Standstill:
    by DC injection
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Line Current:
    6.3 A 100 V heavy duty) || 5.3 A 120 V heavy duty)
    Base Load Current At High Overload:
    4.2 A
    [Us] Rated Supply Voltage:
    200...240 V - 15...10 %
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    Network Frequency:
    50-60 Hz
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Pollution Degree:
    2
    Noise Level:
    0 dB
    Brake Chopper Integrated:
    FALSE
    Analogue Output Number:
    1
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    With Safety Function Safe Position (Sp):
    FALSE
    With Safety Function Safe Direction (Sdi):
    FALSE
    Ambient Air Temperature For Operation:
    -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
    Emc Filter:
    without EMC filter
    Data Format:
    8 bits, configurable odd, even or no parity
    Depth:
    102.2 mm
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    Product Specific Application:
    simple machine
    Supply Frequency:
    50/60 Hz +/- 5 %
    Maximum Output Frequency:
    4 kHz
    Analogue Input Number:
    1
    Range Of Product:
    Altivar 12
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Nominal Switching Frequency:
    4 kHz
    Motor Power Kw:
    0.75 kW
    Mercury Free:
    Yes
    Height:
    143 mm
    Time Constant:
    20 ms +/- 1 ms for reference change
    Apparent Power:
    2.2 kVA 240 V heavy duty)
    Quantity Per Set:
    set of 1
    Asynchronous Motor Control Profile:
    voltage/frequency ratio (V/f) || quadratic voltage/frequency ratio || sensorless flux vector control
    Continuous Output Current:
    4.2 A 4 kHz
    Operating Position:
    vertical +/- 10 degree
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    Nominal Output Current:
    4.2 A
    Speed Drive Output Frequency:
    0.5-400 Hz
    Product Or Component Type:
    variable speed drive
    Net Weight:
    0.7 kg
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Type Of Polarization:
    no impedance
    Connector Type:
    1 RJ45
    4 Quadrant Operation Possible:
    FALSE
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    Warranty:
    18 months
    Motor Slip Compensation:
    preset in factory || adjustable
    Operating Altitude:
    <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Assembly Style:
    on base plate
    Relay Output Number:
    1
    Power Dissipation In W:
    natural 41.0 W
    With Safety Function Safe Programmable Logic:
    FALSE
    Physical Interface:
    2-wire RS 485
    With Safety Function Safe Torque Off (Sto):
    FALSE
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Overvoltage Category:
    class III
    Method Of Access:
    server Modbus serial
    Width:
    72 mm
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with additional EMC filter environment 1 category C2 IEC 61800-3 4...12 kHz shielded motor cable <20 m || conducted emissions with additio
    Mounting Mode:
    cabinet mount
    Discrete Output Number:
    2
    Maximum Horse Power Rating:
    1 hp
    Ambient Air Transport Temperature:
    -25-70 °C
    Communication Port Protocol:
    Modbus
    Maximum Transient Current:
    6.3 A 60 s heavy duty) || 6.9 A 2 s heavy duty)
    China Rohs Regulation:
    X
    Acceleration And Deceleration Ramps:
    linear from 0 to 999.9 s || S || U
    Tightening Torque:
    0.8 N.m
    Marking:
    CE
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    Insulation:
    electrical between power and control
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    Maximum Output Voltage:
    240 V
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    Regulation Loop:
    adjustable PID regulator
    Rohs Exemption Information:
    Yes
    Prospective Line Isc:
    5 kA
    Transmission Frame:
    RTU
    Number Of Addresses:
    1-247
    Ambient Air Temperature For Storage:
    -25-70 °C
    Ip Degree Of Protection:
    IP20
    Discrete Input Number:
    4
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    With Safety Function Safely Limited Position (Slp):
    FALSE
    Speed Range:
    45311
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Brochure:
    View
    Catalog:
    View
    Datasheet:
    View
    $309.05
    Add to Cart Quick view
  • Schneider Electric ATV12H018F1 Atv12 0.18Kw 120V 1Ph Heat Sink Tb
    Add to Cart
    Quick view

    Schneider Electric ATV12H018F1 Atv12 0.18Kw 120V 1Ph Heat Sink Tb

    Schneider Electric

    $276.93
    This Altivar 12 variable speed drive can feed single phase asynchronous motors. It works at a rated power up to 0.18kW / 0.25hp and a rated voltage from 100V to 120V AC. It is designed with heatsink for normal environments and fan-cooled enclosure...
    SKU:
    ATV12H018F1
    Overvoltage Category:
    class III
    Noise Level:
    0 dB
    Network Frequency:
    50-60 Hz
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Height:
    143 mm
    Continuous Output Current:
    1.4 A 4 kHz
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    With Safety Function Safe Position (Sp):
    FALSE
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    Time Constant:
    20 ms +/- 1 ms for reference change
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    Electromagnetic Compatibility:
    voltage dips and interruptions immunity test IEC 61000-4-11 || surge immunity test IEC 61000-4-5 || electrical fast transient/burst immunity test IEC 61000-4-4 || electrostatic discharge immunity test IEC 61000-4-2 || immunity to conducted disturbanc
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Mercury Free:
    Yes
    Ambient Air Temperature For Operation:
    -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
    With Safety Function Safe Programmable Logic:
    FALSE
    Analogue Input Number:
    1
    Marking:
    CE
    Warranty:
    18 months
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    Maximum Transient Current:
    2.1 A 60 s heavy duty) || 2.3 A 2 s heavy duty)
    [Us] Rated Supply Voltage:
    100...120 V - 15...10 %
    Tightening Torque:
    0.8 N.m
    Ambient Air Transport Temperature:
    -25-70 °C
    Method Of Access:
    server Modbus serial
    Power Dissipation In W:
    natural 18.0 W
    Product Or Component Type:
    variable speed drive
    Depth:
    102.2 mm
    Emc Filter:
    without EMC filter
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Range Of Product:
    Altivar 12
    Product Specific Application:
    simple machine
    Insulation:
    electrical between power and control
    Rohs Exemption Information:
    Yes
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Data Format:
    8 bits, configurable odd, even or no parity
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    Speed Range:
    45311
    China Rohs Regulation:
    X
    Ip Degree Of Protection:
    IP20
    Operating Altitude:
    > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
    Braking To Standstill:
    by DC injection
    Nominal Switching Frequency:
    4 kHz
    Assembly Style:
    on base plate
    Maximum Output Frequency:
    4 kHz
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable <5 m || conducted emissions with addition
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    Quantity Per Set:
    set of 1
    Regulation Loop:
    adjustable PID regulator
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Speed Drive Output Frequency:
    0.5-400 Hz
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Communication Port Protocol:
    Modbus
    Number Of Addresses:
    1-247
    Maximum Horse Power Rating:
    0.25 hp
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Connector Type:
    1 RJ45
    Pollution Degree:
    2
    With Safety Function Safely Limited Position (Slp):
    FALSE
    Relay Output Number:
    1
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    Supply Frequency:
    50/60 Hz +/- 5 %
    Analogue Output Number:
    1
    Base Load Current At High Overload:
    1.4 A
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    Discrete Output Number:
    2
    Discrete Input Number:
    4
    Type Of Polarization:
    no impedance
    Line Current:
    6.0 A 100 V heavy duty) || 5.0 A 120 V heavy duty)
    Acceleration And Deceleration Ramps:
    S || U || linear from 0 to 999.9 s
    Width:
    72 mm
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    4 Quadrant Operation Possible:
    FALSE
    Apparent Power:
    0.6 kVA 240 V heavy duty)
    Prospective Line Isc:
    1 kA
    Operating Position:
    vertical +/- 10 degree
    Ambient Air Temperature For Storage:
    -25-70 °C
    Physical Interface:
    2-wire RS 485
    With Safety Function Safe Torque Off (Sto):
    FALSE
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    Nominal Output Current:
    1.4 A
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    Motor Slip Compensation:
    adjustable || preset in factory
    Mounting Mode:
    cabinet mount
    Maximum Output Voltage:
    240 V
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    Brake Chopper Integrated:
    FALSE
    Transmission Frame:
    RTU
    Net Weight:
    0.7 kg
    With Safety Function Safe Direction (Sdi):
    FALSE
    Motor Power Kw:
    0.18 kW
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    Asynchronous Motor Control Profile:
    quadratic voltage/frequency ratio || voltage/frequency ratio (V/f) || sensorless flux vector control
    Brochure:
    View
    Catalog:
    View
    Datasheet:
    View
    $276.93
    Add to Cart Quick view
  • Schneider Electric ATV12H055M2 Atv12 0.55Kw 240V 1Ph Heat Sink Tb
    Add to Cart
    Quick view

    Schneider Electric ATV12H055M2 Atv12 0.55Kw 240V 1Ph Heat Sink Tb

    Schneider Electric

    $307.53
    This Altivar 12 variable speed drive can feed single phase asynchronous motors. It works at a rated power up to 0.55kW / 0.75hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure...
    SKU:
    ATV12H055M2
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    Network Frequency:
    50-60 Hz
    Method Of Access:
    server Modbus serial
    Communication Port Protocol:
    Modbus
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Motor Power Kw:
    0.55 kW
    Braking To Standstill:
    by DC injection
    Physical Interface:
    2-wire RS 485
    Line Current:
    8.0 A 100 V heavy duty) || 6.7 A 120 V heavy duty)
    Maximum Horse Power Rating:
    0.75 hp
    Asynchronous Motor Control Profile:
    voltage/frequency ratio (V/f) || quadratic voltage/frequency ratio || sensorless flux vector control
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Supply Frequency:
    50/60 Hz +/- 5 %
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    Marking:
    CE
    Range Of Product:
    Altivar 12
    Ambient Air Temperature For Operation:
    -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
    Type Of Polarization:
    no impedance
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    Connector Type:
    1 RJ45
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Rohs Exemption Information:
    Yes
    Nominal Output Current:
    3.5 A
    Assembly Style:
    with heat sink
    Speed Drive Output Frequency:
    0.5-400 Hz
    Product Specific Application:
    simple machine
    Continuous Output Current:
    3.5 A 4 kHz
    Acceleration And Deceleration Ramps:
    linear from 0 to 999.9 s || S || U
    With Safety Function Safe Direction (Sdi):
    FALSE
    Quantity Per Set:
    set of 1
    Relay Output Number:
    1
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Maximum Transient Current:
    5.3 A 60 s heavy duty) || 5.8 A 2 s heavy duty)
    Overvoltage Category:
    class III
    [Us] Rated Supply Voltage:
    200...240 V - 15...10 %
    Maximum Output Voltage:
    240 V
    With Safety Function Safe Position (Sp):
    FALSE
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Ambient Air Temperature For Storage:
    -25-70 °C
    Analogue Output Number:
    1
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Mounting Mode:
    cabinet mount
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    Emc Filter:
    integrated
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    Number Of Addresses:
    1-247
    Speed Range:
    45311
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    Nominal Switching Frequency:
    4 kHz
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    Motor Slip Compensation:
    preset in factory || adjustable
    Power Dissipation In W:
    natural 34.0 W
    Product Or Component Type:
    variable speed drive
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions w
    With Safety Function Safe Programmable Logic:
    FALSE
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Maximum Output Frequency:
    4 kHz
    Base Load Current At High Overload:
    3.5 A
    With Safety Function Safely Limited Position (Slp):
    FALSE
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    Mercury Free:
    Yes
    Width:
    72 mm
    China Rohs Regulation:
    X
    Operating Altitude:
    > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
    Discrete Output Number:
    2
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    Net Weight:
    0.8 kg
    Ambient Air Transport Temperature:
    -25-70 °C
    Insulation:
    electrical between power and control
    Warranty:
    18 months
    Apparent Power:
    1.6 kVA 240 V heavy duty)
    Pollution Degree:
    2
    Brake Chopper Integrated:
    FALSE
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    Height:
    143 mm
    With Safety Function Safe Torque Off (Sto):
    FALSE
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Analogue Input Number:
    1
    4 Quadrant Operation Possible:
    FALSE
    Transmission Frame:
    RTU
    Regulation Loop:
    adjustable PID regulator
    Ip Degree Of Protection:
    IP20
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    Prospective Line Isc:
    1 kA
    Time Constant:
    20 ms +/- 1 ms for reference change
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    Discrete Input Number:
    4
    Tightening Torque:
    0.8 N.m
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Noise Level:
    0 dB
    Depth:
    131.2 mm
    Operating Position:
    vertical +/- 10 degree
    Data Format:
    8 bits, configurable odd, even or no parity
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    Brochure:
    View
    Catalog:
    View
    Datasheet:
    View
    $307.53
    Add to Cart Quick view
  • Schneider Electric ATV12HU22M2TQ Atv12 2.2Kw 240V 1Ph Heatsink Tb
    Add to Cart
    Quick view

    Schneider Electric ATV12HU22M2TQ Atv12 2.2Kw 240V 1Ph Heatsink Tb

    Schneider Electric

    $523.25
    Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and...
    SKU:
    ATV12HU22M2TQ
    Overvoltage Category:
    class III
    Ambient Air Transport Temperature:
    -25-70 °C
    Rohs Exemption Information:
    Yes
    Base Load Current At High Overload:
    10.0 A
    Regulation Loop:
    adjustable PID regulator
    Maximum Transient Current:
    15.0 A 60 s heavy duty) || 16.5 A 2 s heavy duty)
    Analogue Input Number:
    1
    Data Format:
    8 bits, configurable odd, even or no parity
    Nominal Output Current:
    0.416666666666667
    Mounting Mode:
    cabinet mount
    With Safety Function Safe Position (Sp):
    FALSE
    Range Of Product:
    Altivar 12
    With Safety Function Safe Programmable Logic:
    FALSE
    Width:
    105 mm
    Number Of Addresses:
    1-247
    Maximum Output Frequency:
    4 kHz
    With Safety Function Safe Operating Stop (Sos):
    FALSE
    Mercury Free:
    Yes
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Vibration Resistance:
    1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
    Communication Port Protocol:
    Modbus
    Speed Range:
    45311
    Braking To Standstill:
    by DC injection
    Ambient Air Temperature For Operation:
    -10-50 °C without derating || 50-60 °C with current derating 2.2 % per °C
    Standards:
    UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
    Brake Chopper Integrated:
    FALSE
    Product Specific Application:
    simple machine
    Time Constant:
    20 ms +/- 1 ms for reference change
    Pollution Degree:
    2
    Net Weight:
    1.4 kg
    Marking:
    CE
    Weee:
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Maximum Deflection Under Vibratory Load (During Operation):
    1.5 mm at 2...13 Hz
    4 Quadrant Operation Possible:
    FALSE
    With Safety Function Safely Limited Speed (Sls):
    FALSE
    Ambient Air Temperature For Storage:
    -25-70 °C
    Maximum Acceleration Under Shock Impact (During Operation):
    150 m/s² at 11 ms
    Product Or Component Type:
    variable speed drive
    Linearity Error:
    +/- 0.3 % of maximum value analogue input
    Maximum Output Voltage:
    240 V
    Continuous Output Current:
    10 A 4 kHz
    Acceleration And Deceleration Ramps:
    linear from 0 to 999.9 s || U || S
    Motor Slip Compensation:
    adjustable || preset in factory
    Method Of Access:
    server Modbus serial
    Volume Of Cooling Air:
    16 m3/h
    With Safety Function Safe Torque Off (Sto):
    FALSE
    With Safety Function Safe Stop 1 (Ss1):
    FALSE
    Ip Degree Of Protection:
    IP20
    Operating Position:
    vertical +/- 10 degree
    With Sft Fct Safe Stop 2 (Ss2):
    FALSE
    With Safety Function Safe Direction (Sdi):
    FALSE
    Warranty:
    18 months
    Maximum Acceleration Under Vibrational Stress (During Operation):
    10 m/s² at 13...200 Hz
    Protection Type:
    line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
    [Us] Rated Supply Voltage:
    200...240 V - 15...10 %
    Type Of Polarization:
    no impedance
    Motor Power Kw:
    2.2 kW
    Prospective Line Isc:
    1 kA
    Transient Overtorque:
    150-170 % of nominal motor torque depending on drive rating and type of motor
    Depth:
    156.2 mm
    Relative Symmetric Network Frequency Tolerance:
    0.05
    Line Current:
    24.0 A 100 V heavy duty) || 20.2 A 120 V heavy duty)
    Analogue Output Number:
    1
    Reach Regulation:
    Reference contains Substances of Very High Concern above the threshold
    Assembly Style:
    with heat sink
    Height:
    130 mm
    Shock Resistance:
    15 gn 11 ms IEC 60068-2-27
    Operating Altitude:
    > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Physical Interface:
    2-wire RS 485
    Communication Service:
    read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
    Transmission Rate:
    9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
    Power Dissipation In W:
    forced cooling 93.0 W
    Discrete Input Number:
    4
    Tightening Torque:
    1.2 N.m
    Supply Frequency:
    50/60 Hz +/- 5 %
    Maximum Horse Power Rating:
    3 hp
    Relay Output Number:
    1
    Product Certifications:
    NOM || CSA || C-tick || UL || GOST || RCM || KC
    With Safety Function Safely Limited Position (Slp):
    FALSE
    Apparent Power:
    4.8 kVA 240 V heavy duty)
    Discrete Output Number:
    2
    Asynchronous Motor Control Profile:
    sensorless flux vector control || voltage/frequency ratio (V/f) || quadratic voltage/frequency ratio
    Noise Level:
    45 dB
    Speed Drive Output Frequency:
    0.5-400 Hz
    Connector Type:
    1 RJ45
    Relative Humidity:
    5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
    Switching Frequency:
    2...16 kHz adjustable || 4...16 kHz with derating factor
    Transmission Frame:
    RTU
    Quantity Per Set:
    set of 7
    Frequency Resolution:
    analog input converter A/D, 10 bits || display unit 0.1 Hz
    Electromagnetic Emission:
    radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m || conducted emissions w
    Insulation:
    electrical between power and control
    Environmental Class (During Operation):
    class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
    China Rohs Regulation:
    X
    Nominal Switching Frequency:
    4 kHz
    Emc Filter:
    integrated
    With Safety Function Safe Speed Monitor (Ssm):
    FALSE
    Electromagnetic Compatibility:
    electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
    Network Frequency:
    50-60 Hz
    With Safety Function Safe Brake Management (Sbc/Sbt):
    FALSE
    Sampling Duration:
    20 ms +/- 1 ms logic input || 10 ms analogue input
    Catalog:
    View
    Datasheet:
    View
    $523.25
    Add to Cart Quick view
  • Schneider Electric VW3A4418 Emc Filter
    Add to Cart
    Quick view

    Schneider Electric VW3A4418 Emc Filter

    Schneider Electric

    $312.75
    This EMC input filter is an option for variable speed drives of Altivar 12 range. This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. Its dimensions are 75mm wide, 194mm high, and 40mm deep. It...
    SKU:
    VW3A4418
    Standards:
    environment 1 category C2 IEC 61800-3 || environment 1 category C3 IEC 61800-3 || environment 2 category C3 IEC 61800-3
    Toxic Heavy Metal Free:
    Yes
    Product Specific Application:
    radio interference input filter
    Rohs Exemption Information:
    Yes
    Mercury Free:
    Yes
    Net Weight:
    1.21 kg
    Range Compatibility:
    Altivar 12
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Warranty:
    18 months
    Product Compatibility:
    ATV12H018M3 || ATV12H037M3 || ATV12H075M3 || ATV12P037M3 || ATV12P075M3
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Reach Free Of Svhc:
    Yes
    Product Or Component Type:
    EMC input filter
    China Rohs Regulation:
    X
    Range Of Product:
    Altivar
    Brochure:
    View
    Catalog:
    View
    Datasheet:
    View
    $312.75
    Add to Cart Quick view
  • Schneider Electric VW3A4416 Emc Filter
    Add to Cart
    Quick view

    Schneider Electric VW3A4416 Emc Filter

    Schneider Electric

    $168.00
    This EMC input filter is an option for variable speed drives of Altivar 12 range. This EMC filter enables your drive to be in compliance with electromagnetic compatibility requirements. Its dimensions are 75mm wide, 194mm high, and 30mm deep. It provides...
    SKU:
    VW3A4416
    Range Compatibility:
    Altivar 12
    California Proposition 65:
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Product Compatibility:
    ATV12H018F1 || ATV12H018M2 || ATV12H037F1 || ATV12H037M2 || ATV12H055M2 || ATV12H075M2 || ATV12P037F1 || ATV12P037M2 || ATV12P055M2 || ATV12P075M2
    Reach Free Of Svhc:
    Yes
    Eu Rohs Directive:
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury Free:
    Yes
    Rohs Exemption Information:
    Yes
    Toxic Heavy Metal Free:
    Yes
    Reach Regulation:
    Free of Substances of Very High Concern above the threshold
    Standards:
    environment 1 category C2 IEC 61800-3 || environment 1 category C3 IEC 61800-3 || environment 2 category C3 IEC 61800-3
    Range Of Product:
    Altivar
    China Rohs Regulation:
    X
    Product Specific Application:
    radio interference input filter
    Warranty:
    18 months
    Product Or Component Type:
    EMC input filter
    Net Weight:
    1.12 kg
    Brochure:
    View
    Catalog:
    View
    Datasheet:
    View
    $168.00
    Add to Cart Quick view
