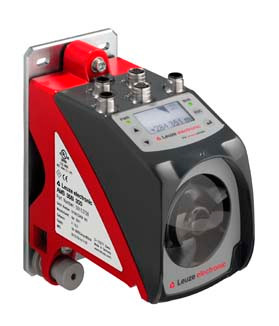

Leuze AMS 300i 300 H Optical distance sensor
Leuze
$8,216.00
The Leuze AMS 300i 300 H is an optical distance sensor utilizing a red laser (Class 2, IEC/EN 60825-1:2014) for precise measurements over a range of 200 to 40,000 mm, with resolution from 0.001 to 10 mm, accuracy of 2 mm, and reproducibility of 0.9 mm (3 sigma). It supports a maximum traverse rate of 10 m/s and features electrical specifications of 18-30 V DC, with interfaces including RS 232, RS 422 (19,200-115,200 Bd), and multiple M12 connectors for power, bus in, and service access. Housed in a robust diecast zinc/aluminum enclosure (84 x 166.5 x 159 mm) with glass lens cover and membrane keyboard controls, it includes a pre-mounted mounting plate, making it suitable for industrial applications such as collision protection and material handling.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/ams-300i-300/50113668
- Operating Instructions: https://www.leuze.com/en-int/support/downloads/operating-instructions/ams-300i
- CAD Data: https://www.leuze.com/en-int/support/downloads/cad/ams-300i-300-h
- Product Catalog Page: https://www.leuze.com/en-int/products/ams-300
- Series:
- AMS 300i
- Application:
- Collision protection of cranes / gantry cranes,Positioning of electroplating plants,Positioning of skillet systems and side-tracking skates,Positioning of stacker cranes
- Order guide:
- Reflective tape must be ordered separately
- Special version:
- Heating
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 225 mm [300,000 mm]
- Measurement value calculation time:
- 8 ms
- Measurement range:
- 200 ... 300,000 mm
- Resolution:
- 0.001 ... 10 mm
- Accuracy:
- 5 mm
- Reproducibility (3 sigma):
- 3 mm
- Measurement value output:
- 1.7 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Type:
- RS 232, RS 422
- Transmission speed:
- 19,200 ... 115,200 Bd
- Designation on device:
- BUS IN
- Material:
- Metal
- Function:
- PWR / SW IN / OUT,Voltage supply
- Designation on device:
- PWR
- Type:
- Male
- Function:
- Service interface
- Designation on device:
- SERVICE
- Type:
- Female
- Dimension (W x H x L):
- 84 mm x 166.5 mm x 159 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc/aluminum
- Lens cover material:
- Glass
- Net weight:
- 2,450 g
- Operational controls:
- Membrane keyboard
- Ambient temperature, operation:
- -30 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
