Leuze AMS 304i 120 H Optical distance sensor
Leuze
$7,075.00

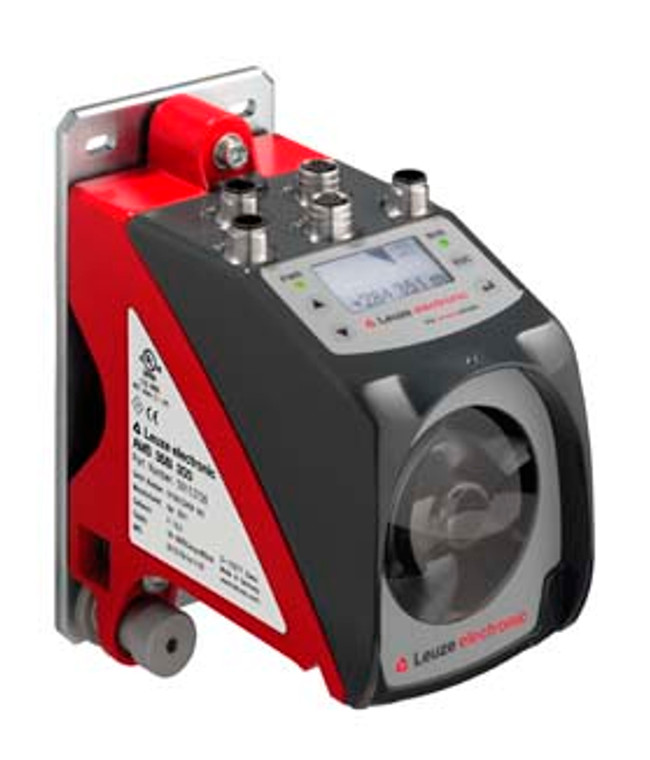

The Leuze AMS 304i 120 H is an optical laser distance sensor designed for precise, absolute position measurement up to 120 m using reflective tape (ordered separately). It features a red laser (Class 2 per IEC/EN 60825-1), measurement range of 200120,000 mm, accuracy of ±2 mm, reproducibility of 1.5 mm (3 sigma), and resolution from 0.00110 mm, with 8 ms calculation time and max traverse rate of 10 m/s. Electrical specs include 1830 V DC supply, PROFIBUS DP (up to 12 Mbit/s) and SSI (50800 kHz) interfaces via M12 connectors, housed in a diecast zinc/aluminum enclosure (84 x 166.5 x 159 mm, 2.45 kg, IP65), with integrated heating for -30 to +50 °C operation. Typical applications include collision protection for cranes/gantry systems, positioning in electroplating plants, skillet systems, side-tracking skates, and stacker cranes, with c UL US approvals.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/ams-304i-120-h/50113682technical-data
- User Manual: https://www.leuze.com/en-us/download-center/ams-304i-user-manual
- Dimensioned Drawings: https://www.leuze.com/en-us/ams-304i-120-h/50113682drawings
- Approvals Overview: https://www.leuze.com/en-us/ams-304i-120-h/50113682approvals
- Series:
- AMS 300i
- Application:
- Collision protection of cranes / gantry cranes,Positioning of electroplating plants,Positioning of skillet systems and side-tracking skates,Positioning of stacker cranes
- Order guide:
- Reflective tape must be ordered separately
- Special version:
- Heating
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 100 mm [120,000 mm]
- Measurement value calculation time:
- 8 ms
- Measurement range:
- 200 ... 120,000 mm
- Resolution:
- 0.001 ... 10 mm
- Accuracy:
- 2 mm
- Reproducibility (3 sigma):
- 1.5 mm
- Measurement value output:
- 1.7 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Type:
- PROFIBUS DP, SSI
- Transmission speed:
- 0.0096 ... 12 Mbit/s
- Clock frequency:
- 50 ... 800 kHz
- Designation on device:
- BUS IN
- Material:
- Metal
- Function:
- BUS OUT,Data interface,PROFIBUS OUT
- Designation on device:
- BUS OUT
- Function:
- PWR / SW IN / OUT,Voltage supply
- Designation on device:
- PWR
- Function:
- Service interface
- Designation on device:
- SERVICE
- Function:
- Data interface,SSI
- Designation on device:
- SSI
- Dimension (W x H x L):
- 84 mm x 166.5 mm x 159 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc/aluminum
- Lens cover material:
- Glass
- Net weight:
- 2,450 g
- Operational controls:
- Membrane keyboard
- Ambient temperature, operation:
- -30 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
