Leuze AMS 304i 40 Optical distance sensor
Leuze
$5,720.00

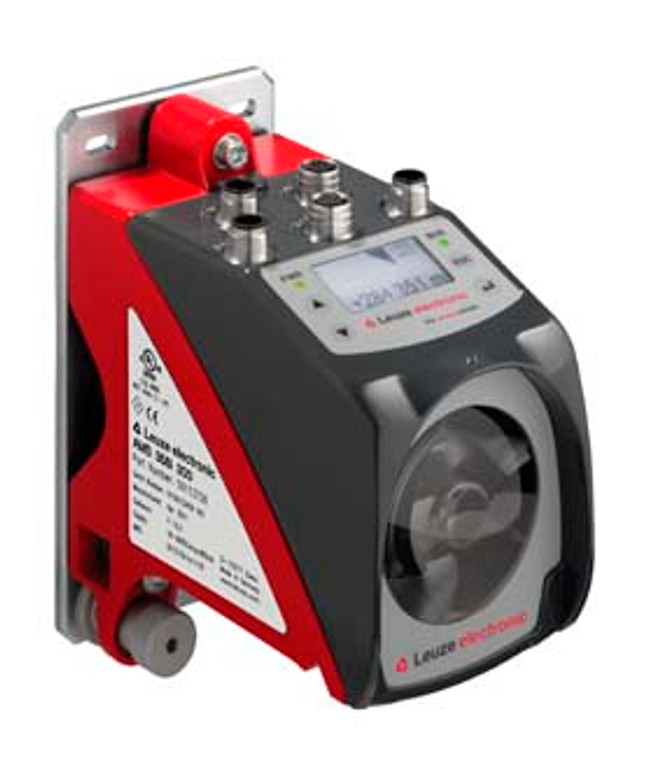

The Leuze AMS 304i 40 is a precision optical distance sensor engineered for collision protection in overhead crane and gantry systems. This laser-based sensor delivers measurement ranges from 200 to 40,000 mm with 2 mm accuracy and 0.9 mm reproducibility (3 sigma), making it suitable for demanding industrial safety applications. The sensor operates on 1830 V DC and provides dual communication interfaces via PROFIBUS DP and SSI protocols (0.009612 Mbit/s), with all connections using standard M12 5-pin connectors. Its metal diecast housing and glass lens cover ensure durability in factory environments.
The sensor features a Class 2 red laser light source compliant with IEC/EN 60825-1:2014. Resolution is configurable from 0.001 to 10 mm, and the device supports a maximum traverse rate of 10 m/s. A membrane keyboard provides operational controls. Dimensions are 84 × 166.5 × 159 mm. This sensor is part of the AMS 300i series and is commonly integrated into programmable logic controller (PLC) systems for real-time distance monitoring and automated safety interlocks.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/downloads/ams-304i-40-50113677-datasheet
- Installation and Operating Instructions: https://www.leuze.com/en-int/downloads/ams-304i-40-installation-guide
- Safety and Laser Classification Certification: https://www.leuze.com/en-int/downloads/ams-304i-40-safety-approvals
- AMS 300i Series Product Family Overview: https://www.leuze.com/en-int/product-family/ams-300i-optical-distance-sensors
- Series:
- AMS 300i
- Application:
- Collision protection of cranes / gantry cranes,Positioning of electroplating plants,Positioning of skillet systems and side-tracking skates,Positioning of stacker cranes
- Order guide:
- Reflective tape must be ordered separately
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 40 mm [40,000 mm]
- Measurement value calculation time:
- 8 ms
- Measurement range:
- 200 ... 40,000 mm
- Resolution:
- 0.001 ... 10 mm
- Accuracy:
- 2 mm
- Reproducibility (3 sigma):
- 0.9 mm
- Measurement value output:
- 1.7 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Type:
- PROFIBUS DP, SSI
- Transmission speed:
- 0.0096 ... 12 Mbit/s
- Clock frequency:
- 50 ... 800 kHz
- Designation on device:
- BUS IN
- Material:
- Metal
- Function:
- BUS OUT,Data interface,PROFIBUS OUT
- Designation on device:
- BUS OUT
- Function:
- PWR / SW IN / OUT,Voltage supply
- Designation on device:
- PWR
- Function:
- Service interface
- Designation on device:
- SERVICE
- Function:
- Data interface,SSI
- Designation on device:
- SSI
- Dimension (W x H x L):
- 84 mm x 166.5 mm x 159 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc/aluminum
- Lens cover material:
- Glass
- Net weight:
- 2,450 g
- Operational controls:
- Membrane keyboard
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
