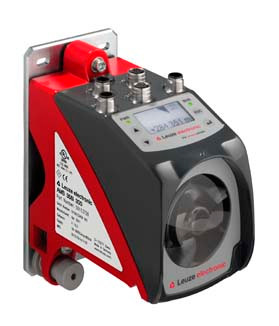

Leuze AMS 308i 120 H Optical distance sensor
Leuze
$7,508.00
The Leuze AMS 308i 120 H is an optical distance sensor from the AMS 300i series, designed for precise positioning tasks such as collision protection in cranes and stacker cranes, with a measurement range of 200 to 120,000 mm, accuracy of ±2 mm, and reproducibility of 1.5 mm (3 sigma). It features a laser light source (protection class 2), round light spot geometry with 100 mm size at maximum distance, 8 ms measurement value calculation time, and supports traverse rates up to 10 m/s, powered by 18-30 V DC. The sensor includes an LC display, 4 LEDs, membrane keyboard for operation, and multiple M12 connectors: BUS IN/OUT (4-pin D-coded female, metal), PWR/SW (5-pin A-coded male), and SERVICE (5-pin female); it offers through-hole mounting on a pre-mounted plate, diecast zinc/aluminum housing (84 x 166.5 x 159 mm), and operates in -30 to 50 °C ambient conditions. Typical applications include wear-free distance measurement in automated storage systems, unaffected by load carriers or packaging, with potential use in safety-related functions when integrated appropriately by the machine manufacturer.
Documentation
- Technical Datasheet: https://www.leuze.com/en-int/ams-308i-120-h/50113690
- Product Page: https://www.leuze.com/en-int/ams-308i-120/50113686
- Laser Positioning Systems Overview: https://www.leuze.com/en-int/products/measuring-sensors/sensors-for-positioning/laser-positioning-systems
- Installation Guide: https://www.leuze.com/en-int/support/downloads/ams-300i-installation-instructions
- Series:
- AMS 300i
- Application:
- Collision protection of cranes / gantry cranes,Positioning of electroplating plants,Positioning of skillet systems and side-tracking skates,Positioning of stacker cranes
- Order guide:
- Reflective tape must be ordered separately
- Special version:
- Heating
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 100 mm [120,000 mm]
- Measurement value calculation time:
- 8 ms
- Measurement range:
- 200 ... 120,000 mm
- Resolution:
- 0.001 ... 10 mm
- Accuracy:
- 2 mm
- Reproducibility (3 sigma):
- 1.5 mm
- Measurement value output:
- 1.7 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Type:
- Ethernet
- Designation on device:
- BUS IN
- Material:
- Metal
- Function:
- BUS OUT,Data interface
- Designation on device:
- BUS OUT
- Encoding:
- D-coded
- Function:
- PWR / SW IN / OUT,Voltage supply
- Designation on device:
- PWR
- Type:
- Male
- Function:
- Service interface
- Designation on device:
- SERVICE
- Dimension (W x H x L):
- 84 mm x 166.5 mm x 159 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc/aluminum
- Lens cover material:
- Glass
- Net weight:
- 2,450 g
- Operational controls:
- Membrane keyboard
- Ambient temperature, operation:
- -30 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
