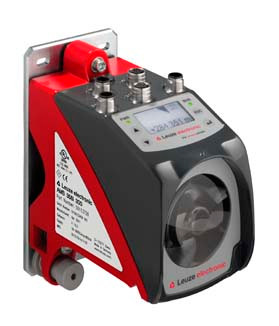

Leuze AMS 308i 200 Optical distance sensor
Leuze
$7,720.00
The Leuze AMS 308i 200 is a high-precision optical distance sensor designed for industrial collision protection applications, such as crane monitoring. It employs a red laser (Class 2, IEC/EN 60825-1:2014) to measure distances from 200 mm to 200 m with ±3 mm accuracy and 2.1 mm reproducibility (3 sigma), supporting maximum traverse rates of 10 m/s. The sensor features an Ethernet interface with M12 connectors (4-pin and 5-pin configurations), operates on 1830 V DC power, and is housed in a diecast zinc/aluminum enclosure with glass lens protection and membrane keyboard controls.
The cubic housing measures 84 mm × 166.5 mm × 159 mm and is suitable for through-hole mounting. With resolution selectable from 0.001 to 10 mm and a measurement output latency of 1.7 ms, this sensor integrates readily into automated systems requiring reliable distance feedback. Operating temperature range is ?5 to 50 °C, with storage tolerance to ?30 to 70 °C.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/products/measuring-sensors/optical-distance-sensors/ams-308i-200
- Installation and Electrical Connection Guide: https://www.leuze.com/downloads/ams-308i-200-installation-guide
- Product Family Overview (AMS 300i Series): https://www.leuze.com/en-us/products/measuring-sensors/optical-distance-sensors/ams-300i-series
- Safety and Compliance Documentation: https://www.leuze.com/en-us/downloads/ams-308i-200-safety-certifications
- Series:
- AMS 300i
- Application:
- Collision protection of cranes / gantry cranes,Positioning of electroplating plants,Positioning of skillet systems and side-tracking skates,Positioning of stacker cranes
- Order guide:
- Reflective tape must be ordered separately
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 150 mm [200,000 mm]
- Measurement value calculation time:
- 8 ms
- Measurement range:
- 200 ... 200,000 mm
- Resolution:
- 0.001 ... 10 mm
- Accuracy:
- 3 mm
- Reproducibility (3 sigma):
- 2.1 mm
- Measurement value output:
- 1.7 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Type:
- Ethernet
- Designation on device:
- BUS IN
- Material:
- Metal
- Function:
- BUS OUT,Data interface
- Designation on device:
- BUS OUT
- Encoding:
- D-coded
- Function:
- PWR / SW IN / OUT,Voltage supply
- Designation on device:
- PWR
- Type:
- Male
- Function:
- Service interface
- Designation on device:
- SERVICE
- Dimension (W x H x L):
- 84 mm x 166.5 mm x 159 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc/aluminum
- Lens cover material:
- Glass
- Net weight:
- 2,450 g
- Operational controls:
- Membrane keyboard
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
