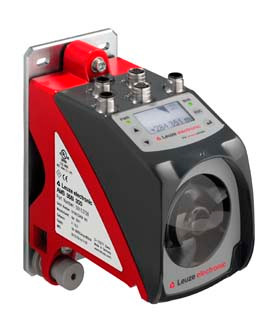

Leuze AMS 308i 40 H Optical distance sensor
Leuze
$6,729.00
The Leuze AMS 308i 40 H is an optical distance sensor utilizing laser technology (Class 2) for high-precision, non-contact measurements with a range of 200 to 40,000 mm, absolute accuracy of 2 mm, and reproducibility of 0.3 mm (1 sigma). It features a pre-mounted mounting plate for straightforward integration in industrial environments and supports applications requiring reliable positioning and distance detection. This sensor delivers robust performance for automation tasks in manufacturing and assembly processes.
Documentation
- Technical Datasheet: https://www.leuze.com/en/int/products/measuring-sensors/distance-sensors/ams-308i/ams-308i-40-h-datasheet.pdf
- Installation Instructions: https://www.leuze.com/en/int/products/measuring-sensors/distance-sensors/ams-308i/ams-308i-40-h-installation.pdf
- Product Page: https://www.leuze.com/en/int/products/measuring-sensors/distance-sensors/ams-308i/50113689
- CAD Data: https://www.leuze.com/en/int/products/measuring-sensors/distance-sensors/ams-308i/ams-308i-40-h-cad.zip
- Series:
- AMS 300i
- Application:
- Collision protection of cranes / gantry cranes,Positioning of electroplating plants,Positioning of skillet systems and side-tracking skates,Positioning of stacker cranes
- Order guide:
- Reflective tape must be ordered separately
- Special version:
- Heating
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 40 mm [40,000 mm]
- Measurement value calculation time:
- 8 ms
- Measurement range:
- 200 ... 40,000 mm
- Resolution:
- 0.001 ... 10 mm
- Accuracy:
- 2 mm
- Reproducibility (3 sigma):
- 0.9 mm
- Measurement value output:
- 1.7 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Type:
- Ethernet
- Designation on device:
- BUS IN
- Material:
- Metal
- Function:
- BUS OUT,Data interface
- Designation on device:
- BUS OUT
- Encoding:
- D-coded
- Function:
- PWR / SW IN / OUT,Voltage supply
- Designation on device:
- PWR
- Type:
- Male
- Function:
- Service interface
- Designation on device:
- SERVICE
- Dimension (W x H x L):
- 84 mm x 166.5 mm x 159 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc/aluminum
- Lens cover material:
- Glass
- Net weight:
- 2,450 g
- Operational controls:
- Membrane keyboard
- Ambient temperature, operation:
- -30 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
