Leuze AMS 335i 200 Optical distance sensor
Leuze
$7,281.00

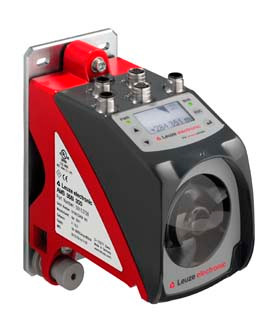

The Leuze AMS 335i 200 is a high-precision laser-based optical distance sensor engineered for industrial measurement and positioning applications requiring long-range accuracy. With a maximum measurement range of 200 m, ±3 mm accuracy, and 2.1 mm reproducibility (3 sigma), this sensor delivers reliable performance in demanding manufacturing and material handling environments such as crane collision protection and electroplating plant positioning systems. The device operates on 1830 V DC supply, communicates via CANopen interface at speeds up to 1,000 kBit/s, and features an integrated LC display with membrane controls for field configuration and diagnostics.
The cubic metal housing (84 × 166.5 × 159 mm) with glass lens cover is designed for industrial robustness, with operational temperature range of ?5 to 50 °C and minimal temperature drift (0.010.1 mm/K). Connection is via four M12 connectors: two for CANopen bus communication (male and female), one for 5-pin power/switching input-output, and one service port for diagnostics and setup. The 1.7 ms measurement output cycle supports real-time response in fast-moving automation systems.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/downloads/ams-335i-200-50113695-datasheet
- Installation and Operating Instructions: https://www.leuze.com/en-us/downloads/ams-335i-200-50113695-manual
- CANopen Interface Specification: https://www.leuze.com/en-us/downloads/ams-300i-canopen-protocol-guide
- Product Family Overview: https://www.leuze.com/en-us/ams-335i-series
- Series:
- AMS 300i
- Application:
- Collision protection of cranes / gantry cranes,Positioning of electroplating plants,Positioning of skillet systems and side-tracking skates,Positioning of stacker cranes
- Order guide:
- Reflective tape must be ordered separately
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 150 mm [200,000 mm]
- Measurement value calculation time:
- 8 ms
- Measurement range:
- 200 ... 200,000 mm
- Resolution:
- 0.001 ... 10 mm
- Accuracy:
- 3 mm
- Reproducibility (3 sigma):
- 2.1 mm
- Measurement value output:
- 1.7 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Type:
- CANopen
- Transmission speed:
- 10 ... 1,000 kBit/s
- Designation on device:
- BUS IN
- Material:
- Metal
- Function:
- BUS OUT,Data interface
- Designation on device:
- BUS OUT
- Function:
- PWR / SW IN / OUT,Voltage supply
- Designation on device:
- PWR
- Type:
- Male
- Function:
- Service interface
- Designation on device:
- SERVICE
- Dimension (W x H x L):
- 84 mm x 166.5 mm x 159 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc/aluminum
- Lens cover material:
- Glass
- Net weight:
- 2,450 g
- Operational controls:
- Membrane keyboard
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
