Leuze AMS 348i 40 H Optical distance sensor
Leuze
$6,729.00

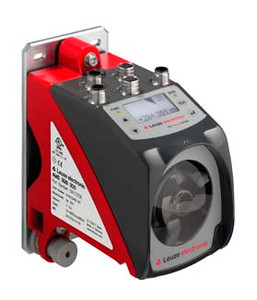

The Leuze AMS 348i 40 H is an optical laser distance sensor designed for precise absolute position measurement up to 40 m against a reflector, using time-of-flight principle with red laser class 2 (IEC/EN 60825-1). It offers 2 mm accuracy, 0.9 mm reproducibility (3 sigma), and supports traverse rates up to 10 m/s, with integrated device heating for operation in -30 to 50 °C environments. Electrical specifications include 18-30 V DC supply, SSI interface (80-800 kHz clock), PROFINET RT option, M12 connectors for BUS IN/OUT (4-pin D-coded), power (5-pin A-coded), and SSI (5-pin B-coded), housed in a rugged 84 x 166.5 x 159 mm metal enclosure (IP65) with 2.45 kg weight and through-hole mounting. Typical applications include positioning of cranes, gantry systems, high-bay storage lifts, and electroplating plants.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/datasheet/ams-348i-40-h-ssi-50127223
- Installation Instructions: https://www.leuze.com/en-us/manual/ams-348i-40-h-50127223
- Product Page: https://www.leuze.com/en-us/ams-348i-40-h-ssi/50127223
- CAD Data: https://www.leuze.com/en-us/cad/ams-348i-40-h-50127223
- Series:
- AMS 300i
- Application:
- Collision protection of cranes / gantry cranes,Positioning of electroplating plants,Positioning of skillet systems and side-tracking skates,Positioning of stacker cranes
- Order guide:
- Reflective tape must be ordered separately
- Special version:
- Heating
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 40 mm [40,000 mm]
- Measurement value calculation time:
- 8 ms
- Measurement range:
- 200 ... 40,000 mm
- Resolution:
- 0.001 ... 10 mm
- Accuracy:
- 2 mm
- Reproducibility (3 sigma):
- 0.9 mm
- Measurement value output:
- 1.7 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Type:
- PROFINET
- Conformance class:
- B
- Protocol:
- PROFINET RT
- Switch functionality:
- Integrated
- Transmission speed:
- 100 Mbit/s
- Designation on device:
- BUS IN
- Material:
- Metal
- Function:
- BUS OUT,Data interface
- Designation on device:
- BUS OUT
- Encoding:
- D-coded
- Function:
- PWR / SW IN / OUT,Voltage supply
- Designation on device:
- PWR
- Type:
- Male
- Function:
- Service interface
- Designation on device:
- SERVICE
- Dimension (W x H x L):
- 84 mm x 166.5 mm x 159 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc/aluminum
- Lens cover material:
- Glass
- Net weight:
- 2,450 g
- Operational controls:
- Membrane keyboard
- Ambient temperature, operation:
- -30 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
- ETIM 5.0:
- EC001825
- ETIM 6.0:
- EC001825
- ETIM 7.0:
- EC001825
- ETIM 8.0:
- EC001825
- ETIM 9.0:
- EC001825
- ETIM 10.0:
- EC001825
