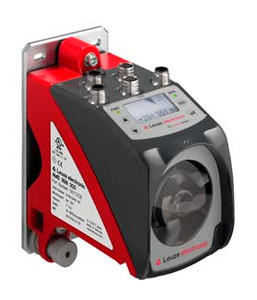

Leuze AMS 384i 300 H Optical distance sensor
Leuze
$8,641.00
The Leuze AMS 384i 300 H is an absolute measuring optical laser distance sensor designed for precise distance measurements up to 300 m against a reflector, with a measurement range of 200 to 300,000 mm, accuracy of ±5 mm, and reproducibility of 3 mm (3 sigma). It features an Interbus interface (500 kbit/s or 2 Mbit/s), supply voltage of 1830 VDC, current consumption up to 500 mA with heating, laser class 2 (red light, 650690 nm), IP65 enclosure, and operating temperature of -5 to 50 °C. Typical applications include positioning of automated plant components, high-bay storage travel/lifting axes, gantry crane bridges and trolleys, with mounting via pre-mounted plate, hexagon socket, and M5 nut; includes graphical display, 4-button keyboard, 2 programmable inputs/outputs.
Documentation
- Technical Datasheet: https://www.leuze.com/en/ams-384i-300-h-50113740-datasheet
- Installation Instructions: https://www.leuze.com/en/ams-384i-300-h-50113740-manual
- Product Page: https://www.leuze.com/en/ams-384i-300-h/50113740
- CAD Drawings: https://cad.leuze.com/ams-384i-300-h-50113740
- Series:
- AMS 300i
- Application:
- Collision protection of cranes / gantry cranes,Positioning of electroplating plants,Positioning of skillet systems and side-tracking skates,Positioning of stacker cranes
- Order guide:
- Reflective tape must be ordered separately
- Special version:
- Heating
- Light source:
- Laser, Red
- Laser class:
- 2, IEC/EN 60825-1:2014
- Light spot size [at sensor distance]:
- 225 mm [300,000 mm]
- Measurement value calculation time:
- 8 ms
- Measurement range:
- 200 ... 300,000 mm
- Resolution:
- 0.001 ... 10 mm
- Accuracy:
- 5 mm
- Reproducibility (3 sigma):
- 3 mm
- Measurement value output:
- 1.7 ms
- Max. traverse rate:
- 10 m/s
- Supply voltage UB:
- 18 ... 30 V, DC
- Type:
- Interbus-S
- Transmission speed:
- 2?Mbit/s
- Designation on device:
- BUS IN
- Material:
- Metal
- Function:
- BUS OUT,Data interface
- Designation on device:
- BUS OUT
- Encoding:
- B-coded
- Function:
- PWR / SW IN / OUT,Voltage supply
- Designation on device:
- PWR
- Type:
- Male
- Function:
- Service interface
- Designation on device:
- SERVICE
- Dimension (W x H x L):
- 84 mm x 166.5 mm x 159 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc/aluminum
- Lens cover material:
- Glass
- Net weight:
- 2,450 g
- Operational controls:
- Membrane keyboard
- Ambient temperature, operation:
- -30 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Customs tariff number:
- 90318020
- ECLASS 5.1.4:
- 27270801
- ECLASS 8.0:
- 27270801
- ECLASS 9.0:
- 27270801
- ECLASS 10.0:
- 27270801
- ECLASS 11.0:
- 27270801
- ECLASS 12.0:
- 27270916
- ECLASS 13.0:
- 27270916
- ECLASS 14.0:
- 27270916
- ECLASS 15.0:
- 27270916
