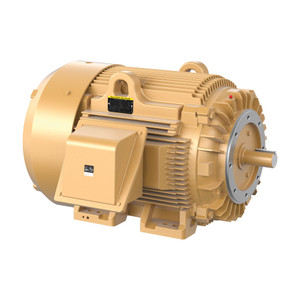

ABB Baldor-Reliance CEWDM4400TS-4 100 HP 1785 RPM 405TSC TEFC Severe-Duty Washdown Motor

ABB Baldor-Reliance
SKU:
CEWDM4400TS-4
|
UPC:
781568722077
$21,383.60
Condition:
New
Current Stock:
Description
CEWDM4400TS-4
Baldor-Reliance 100 HP Severe-Duty Washdown Motor
100HP, 1785RPM, 3PH, 60HZ, 405TSC, A4076M, TEFC
100 HP1785 RPM405TSC FrameTEFC460 V3-Phase

Specifications

Catalog NumberCEWDM4400TS-4
Output (HP)100
Speed (RPM)1785
Synchronous Speed (RPM)1800
Number of Poles4
Voltage (V @ 60 Hz)460
Full Load Amps (A)115.0
Phase3
Frequency (Hz)60.00
Frame405TSC
Frame MaterialIron
EnclosureTEFC
Enclosure ModificationSevere Duty Features
Ingress ProtectionWashdown / IP55
NEMA Nominal Efficiency (%)96.2
Service Factor1.15
Insulation ClassF
Power Factor85
Design CodeA
KVA CodeH
Motor TypeA4076M
Motor Letter TypeThree Phase
Mounting ArrangementF1
BaseRigid
Shaft Diameter (in)2.125
Overall Length (in)35.19
Duty RatingCONT
Ambient Temperature (C)40
InverterInverter Ready
Bearing GreasePolyrex EM
Agency ApprovalsNEMA Premium 4, CCSAUSEEV

Application & Design Notes

The CEWDM4400TS-4 is a large-frame 100 HP Baldor-Reliance severe-duty washdown motor in a 405TSC cast-iron frame with TEFC construction, Severe Duty Features, and Washdown / IP55 ingress protection. The epoxy/severe-duty finish and Polyrex EM grease target high-pressure washdown and corrosive process environments where full stainless is not required at this power level. Rated 96.2% nominal efficiency at 1.15 service factor, Class F insulation, Inverter Ready.

Spec note: Ship weight on page = 9,999 LB (Baldor placeholder, not a real weight) -> left blank. VERIFY actual weight.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the CEWDM4400TS-4, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
100 HP
Speed:
1785 RPM
Poles:
4
Voltage:
460 V
Full Load Amps:
115.0 A
Phase:
3
Frequency:
60.00 Hz
Frame:
405TSC
Enclosure:
TEFC
Efficiency:
96.2%
Service Factor:
1.15
Insulation Class:
F
