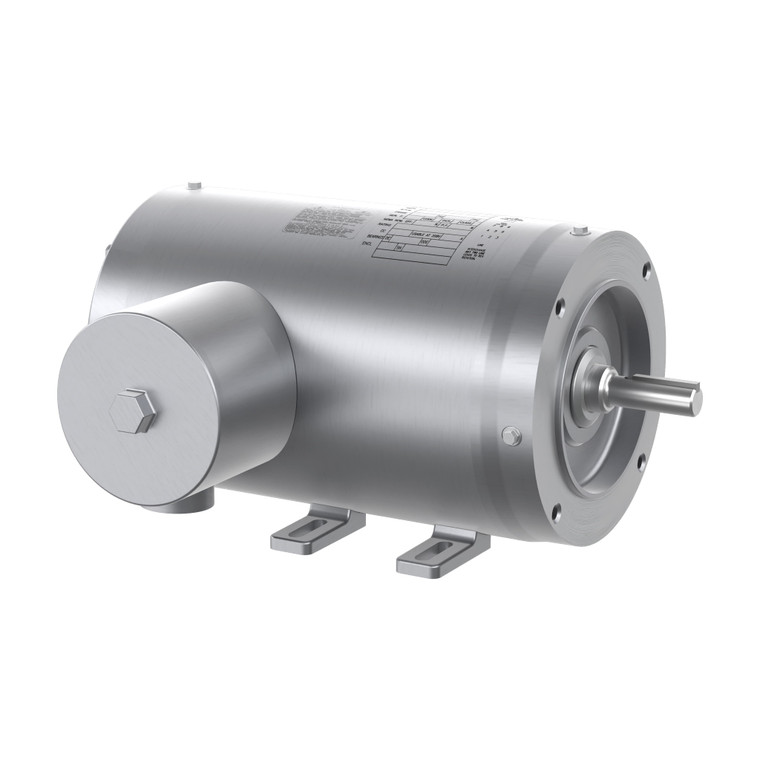

ABB Baldor-Reliance CFSWDM3546-4E 1 HP 1770 RPM 56C TENV Stainless Washdown Motor

ABB Baldor-Reliance CFSWDM3546-4E 1 HP 1770 RPM 56C TENV Stainless Washdown Motor

ABB Baldor-Reliance
SKU:
CFSWDM3546-4E
|
UPC:
781568593882
$2,167.27
Condition:
New
Current Stock:
Description
CFSWDM3546-4E
Baldor-Reliance 1 HP Stainless Washdown Motor
1HP, 1770RPM, 3PH, 60HZ, 56C, 3522M, TENV, F1, N
1 HP1770 RPM56C FrameTENV460 V3-Phase

Specifications

Catalog NumberCFSWDM3546-4E
Output (HP)1
Speed (RPM)1770
Synchronous Speed (RPM)1800
Number of Poles4
Voltage (V @ 60 Hz)460
Full Load Amps (A)1.7
Phase3
Frequency (Hz)60.00
Frame56C
Frame MaterialStainless Steel
EnclosureTENV
NEMA Nominal Efficiency (%)85.5
Service Factor1.15
Insulation ClassH
Power Factor66
Design CodeB
KVA CodeN
Motor Type3522M
Motor Letter TypeThree Phase
Mounting ArrangementF1
BaseRigid
Shaft Diameter (in)0.625
Overall Length (in)12.78
Duty RatingCONT
Ambient Temperature (C)40
InverterInverter Ready
Bearing GreasePolyrex EM
Agency ApprovalsCUR-US-EEV, NEMA Premium, WEEE

Application & Design Notes

The CFSWDM3546-4E is a Baldor-Reliance stainless washdown motor in a 56C stainless steel frame with a TENV enclosure, unpainted finish, and Polyrex EM bearing grease for repeated high-pressure, high-temperature washdown in food, beverage, and pharmaceutical processing. Rated 85.5% nominal efficiency at 1.15 service factor with Class H insulation and Inverter Ready capability. C-face mounting and sealed bearings ease integration on pumps, conveyors, and OEM equipment.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the CFSWDM3546-4E, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
1 HP
Speed:
1770 RPM
Poles:
4
Voltage:
460 V
Full Load Amps:
1.7 A
Phase:
3
Frequency:
60.00 Hz
Frame:
56C
Enclosure:
TENV
Efficiency:
85.5%
Service Factor:
1.15
Insulation Class:
H
