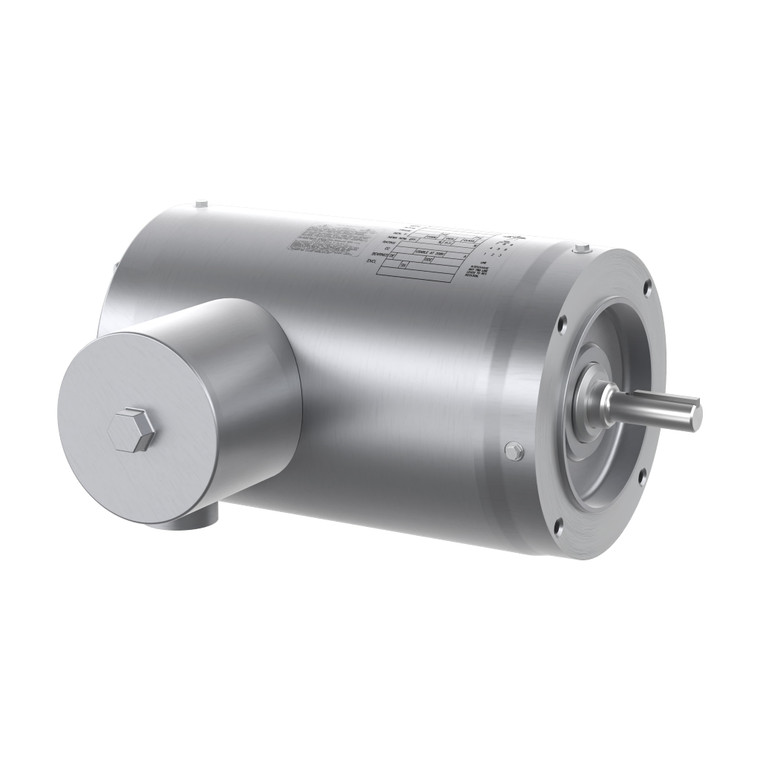

ABB Baldor-Reliance VFSWDM3550-4E 1.5 HP 3500 RPM 56C TENV Stainless Washdown Motor

ABB Baldor-Reliance VFSWDM3550-4E 1.5 HP 3500 RPM 56C TENV Stainless Washdown Motor

ABB Baldor-Reliance
SKU:
VFSWDM3550-4E
|
UPC:
781568593981
$2,174.61
Condition:
New
Current Stock:
Description
VFSWDM3550-4E
Baldor-Reliance 1.5 HP Stainless Washdown Motor
1.5HP, 3500RPM, 3PH, 60HZ, 56C, 3532M, TENV, F1
1.5 HP3500 RPM56C FrameTENV460 V3-Phase

Specifications

Catalog NumberVFSWDM3550-4E
Output (HP)1.5
Speed (RPM)3500
Synchronous Speed (RPM)3600
Number of Poles2
Voltage (V @ 60 Hz)460
Full Load Amps (A)1.8
Phase3
Frequency (Hz)60.00
Frame56C
Frame MaterialStainless Steel
EnclosureTENV
NEMA Nominal Efficiency (%)85.5
Service Factor1.15
Insulation ClassH
Power Factor90
Design CodeB
KVA CodeM
Motor Type3532M
Motor Letter TypeThree Phase
Mounting ArrangementF1
Shaft Diameter (in)0.625
Overall Length (in)13.67
Duty RatingCONT
Ambient Temperature (C)40
InverterInverter Duty
Bearing GreasePolyrex EM
Agency ApprovalsNEMA Premium, WEEE, CUR-US-EEV

Application & Design Notes

The VFSWDM3550-4E is a Baldor-Reliance stainless washdown motor in a 56C stainless steel frame with a TENV enclosure, unpainted finish, and Polyrex EM bearing grease for repeated high-pressure, high-temperature washdown in food, beverage, and pharmaceutical processing. Rated 85.5% nominal efficiency at 1.15 service factor with Class H insulation and Inverter Duty capability. C-face mounting and sealed bearings ease integration on pumps, conveyors, and OEM equipment.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the VFSWDM3550-4E, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
1.5 HP
Speed:
3500 RPM
Poles:
2
Voltage:
460 V
Full Load Amps:
1.8 A
Phase:
3
Frequency:
60.00 Hz
Frame:
56C
Enclosure:
TENV
Efficiency:
85.5%
Service Factor:
1.15
Insulation Class:
H
