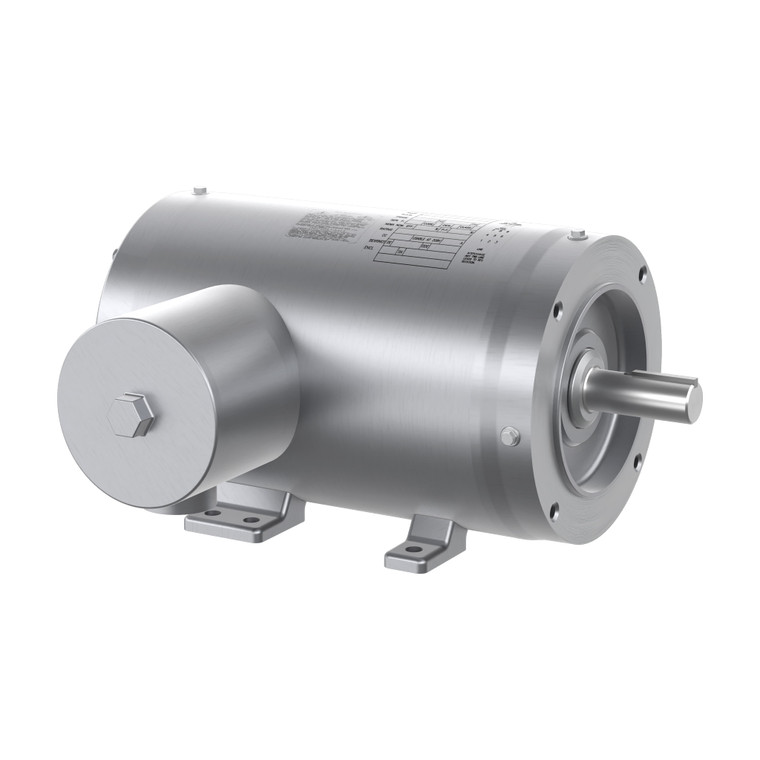

ABB Baldor-Reliance CFSWDNM3555T-4E 2 HP 3480 RPM 145TC TENV Stainless Washdown Motor
ABB Baldor-Reliance
$2,617.62
CFSWDNM3555T-4E
Baldor-Reliance 2 HP Stainless Washdown Motor
2HP, 3480RPM, 3PH, 60HZ, 145TC, 3546M, TENV, F1
2 HP3480 RPM145TC FrameTENV460 V3-Phase
Specifications
| Catalog Number | CFSWDNM3555T-4E |
| Output (HP) | 2 |
| Speed (RPM) | 3480 |
| Synchronous Speed (RPM) | 3600 |
| Number of Poles | 2 |
| Voltage (V @ 60 Hz) | 460 |
| Full Load Amps (A) | 2.4 |
| Phase | 3 |
| Frequency (Hz) | 60.00 |
| Frame | 145TC |
| Frame Material | Stainless Steel |
| Enclosure | TENV |
| NEMA Nominal Efficiency (%) | 88.5 |
| Service Factor | 1.15 |
| Insulation Class | H |
| Power Factor | 89 |
| Design Code | B |
| KVA Code | N |
| Motor Type | 3546M |
| Motor Letter Type | Three Phase |
| Mounting Arrangement | F1 |
| Base | Rigid |
| Shaft Diameter (in) | 0.875 |
| Overall Length (in) | 15.09 |
| Duty Rating | CONT |
| Ambient Temperature (C) | 40 |
| Inverter | Inverter Duty |
| Bearing Grease | Polyrex EM |
| Agency Approvals | CUR-US-EEV, NEMA Premium, WEEE |
Application & Design Notes
The CFSWDNM3555T-4E is a Baldor-Reliance stainless washdown motor in a 145TC stainless steel frame with a TENV enclosure, unpainted finish, and Polyrex EM bearing grease for repeated high-pressure, high-temperature washdown in food, beverage, and pharmaceutical processing. Rated 88.5% nominal efficiency at 1.15 service factor with Class H insulation and Inverter Duty capability. C-face mounting and sealed bearings ease integration on pumps, conveyors, and OEM equipment.
Purchasing & Sourcing
Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the CFSWDNM3555T-4E, request a quote or contact our team at 1-888-600-3080.
- Horsepower:
- 2 HP
- Speed:
- 3480 RPM
- Poles:
- 2
- Voltage:
- 460 V
- Full Load Amps:
- 2.4 A
- Phase:
- 3
- Frequency:
- 60.00 Hz
- Frame:
- 145TC
- Enclosure:
- TENV
- Efficiency:
- 88.5%
- Service Factor:
- 1.15
- Insulation Class:
- H
