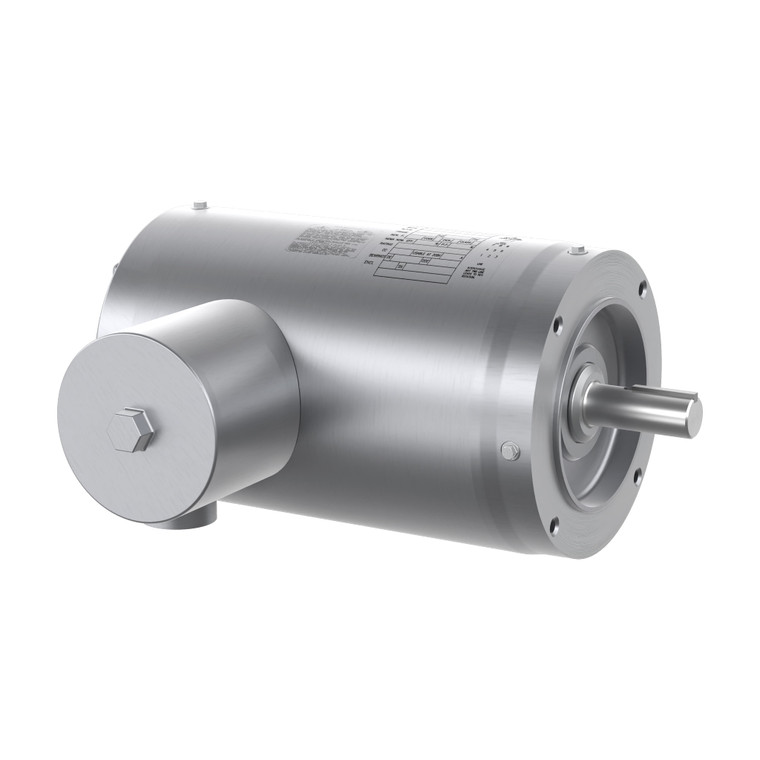

ABB Baldor-Reliance VFSWDNM3558T-4E 2 HP 1760 RPM 143TC TENV Stainless Washdown Motor

ABB Baldor-Reliance VFSWDNM3558T-4E 2 HP 1760 RPM 143TC TENV Stainless Washdown Motor

ABB Baldor-Reliance
SKU:
VFSWDNM3558T-4E
|
UPC:
781568594056
$2,556.64
Condition:
New
Current Stock:
Description
VFSWDNM3558T-4E
Baldor-Reliance 2 HP Stainless Washdown Motor
2HP, 1760RPM, 3PH, 60HZ, 143TC, 3546M, TENV, F1
2 HP1760 RPM143TC FrameTENV460 V3-Phase

Specifications

Catalog NumberVFSWDNM3558T-4E
Output (HP)2
Speed (RPM)1760
Synchronous Speed (RPM)1800
Number of Poles4
Voltage (V @ 60 Hz)460
Full Load Amps (A)2.7
Phase3
Frequency (Hz)60.00
Frame143TC
Frame MaterialStainless Steel
EnclosureTENV
NEMA Nominal Efficiency (%)86.5
Service Factor1.15
Insulation ClassH
Power Factor80
Design CodeB
KVA CodeL
Motor Type3546M
Motor Letter TypeThree Phase
Mounting ArrangementF1
Shaft Diameter (in)0.875
Overall Length (in)15.09
Duty RatingCONT
Ambient Temperature (C)40
InverterInverter Duty
Bearing GreasePolyrex EM
Agency ApprovalsNEMA Premium, WEEE, CUR-US-EEV

Application & Design Notes

The VFSWDNM3558T-4E is a Baldor-Reliance stainless washdown motor in a 143TC stainless steel frame with a TENV enclosure, unpainted finish, and Polyrex EM bearing grease for repeated high-pressure, high-temperature washdown in food, beverage, and pharmaceutical processing. Rated 86.5% nominal efficiency at 1.15 service factor with Class H insulation and Inverter Duty capability. C-face mounting and sealed bearings ease integration on pumps, conveyors, and OEM equipment.

Spec note: Frame: nameplate+H1=143TC but structured spec field=145TC; used 143TC per nameplate. VERIFY.

Purchasing & Sourcing

Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the VFSWDNM3558T-4E, request a quote or contact our team at 1-888-600-3080.

Additional Information
Horsepower:
2 HP
Speed:
1760 RPM
Poles:
4
Voltage:
460 V
Full Load Amps:
2.7 A
Phase:
3
Frequency:
60.00 Hz
Frame:
143TC
Enclosure:
TENV
Efficiency:
86.5%
Service Factor:
1.15
Insulation Class:
H
