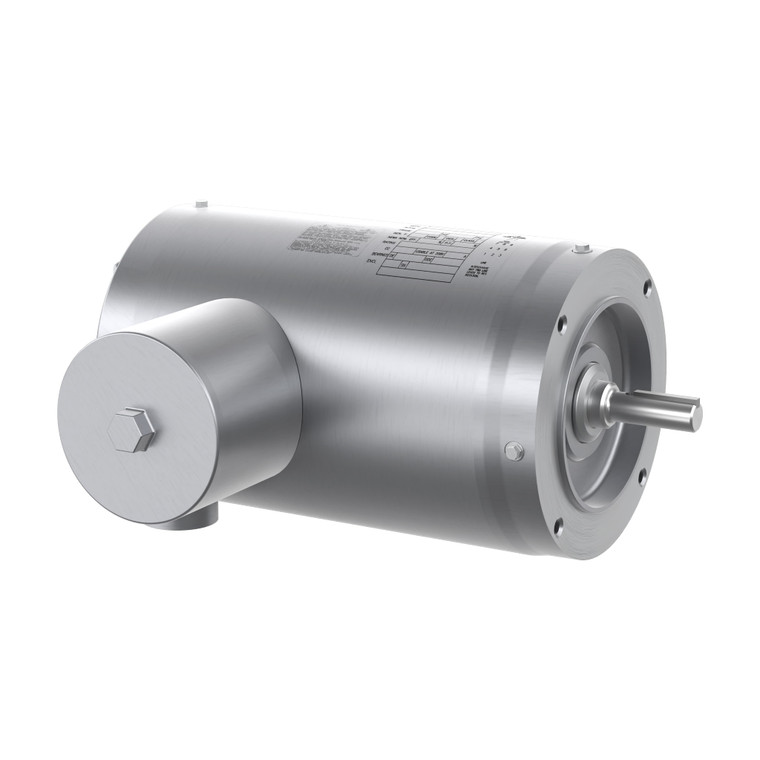

ABB Baldor-Reliance VFSWDNM3554-4E 1.5 HP 1765 RPM 56C TENV Stainless Washdown Motor
ABB Baldor-Reliance
$2,146.70
VFSWDNM3554-4E
Baldor-Reliance 1.5 HP Stainless Washdown Motor
1.5HP, 1765RPM, 3PH, 60HZ, 56C, 3540M, TENV, F1
1.5 HP1765 RPM56C FrameTENV460 V3-Phase
Specifications
| Catalog Number | VFSWDNM3554-4E |
| Output (HP) | 1.5 |
| Speed (RPM) | 1765 |
| Synchronous Speed (RPM) | 1800 |
| Number of Poles | 4 |
| Voltage (V @ 60 Hz) | 460 |
| Full Load Amps (A) | 2.0 |
| Phase | 3 |
| Frequency (Hz) | 60.00 |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Enclosure | TENV |
| NEMA Nominal Efficiency (%) | 86.5 |
| Service Factor | 1.15 |
| Insulation Class | H |
| Power Factor | 72 |
| Design Code | B |
| KVA Code | M |
| Motor Type | 3540M |
| Motor Letter Type | Three Phase |
| Mounting Arrangement | F1 |
| Shaft Diameter (in) | 0.625 |
| Overall Length (in) | 15.04 |
| Duty Rating | CONT |
| Ambient Temperature (C) | 40 |
| Inverter | Inverter Duty |
| Bearing Grease | Polyrex EM |
| Agency Approvals | NEMA Premium, WEEE, CUR-US-EEV |
Application & Design Notes
The VFSWDNM3554-4E is a Baldor-Reliance stainless washdown motor in a 56C stainless steel frame with a TENV enclosure, unpainted finish, and Polyrex EM bearing grease for repeated high-pressure, high-temperature washdown in food, beverage, and pharmaceutical processing. Rated 86.5% nominal efficiency at 1.15 service factor with Class H insulation and Inverter Duty capability. C-face mounting and sealed bearings ease integration on pumps, conveyors, and OEM equipment.
Purchasing & Sourcing
Automation Distribution is an authorized distributor of ABB Baldor-Reliance motors serving PA, NJ, NY, DE, MD, DC, and VA. For lead time, quantity pricing, accessories, or application help on the VFSWDNM3554-4E, request a quote or contact our team at 1-888-600-3080.
- Horsepower:
- 1.5 HP
- Speed:
- 1765 RPM
- Poles:
- 4
- Voltage:
- 460 V
- Full Load Amps:
- 2.0 A
- Phase:
- 3
- Frequency:
- 60.00 Hz
- Frame:
- 56C
- Enclosure:
- TENV
- Efficiency:
- 86.5%
- Service Factor:
- 1.15
- Insulation Class:
- H
