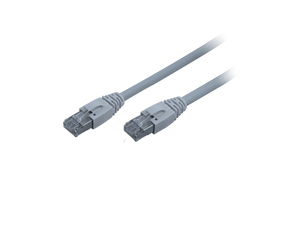

Baumer Cable GigE RJ45/RJ45, 6.0m
Baumer
This Baumer Cable GigE RJ45/RJ45 is 6.0 meters long and features 8 poles. It is not suitable for use in cable carriers. The cable weighs less than or equal to 250 grams. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_Cable-GigE-RJ45-RJ45-6-0-m_EN_20230920_DS.pdf?mediaPK=9100683477022).
- Measuring distance Sd:
- 0 120 mm
- Optimum operating distance:
- 100 mm
- Counting rate:
- < 3000000 Copies/h
- Object speed:
- < 5 m/sec
- Object cycle distance:
- > 1 mm
- Sensitivity:
- Single sheet/edge thickness 0,15 mm
- Sync. input:
- Yes
- Measuring point:
- Visible red laser line 8 mm
- Light source:
- Pulsed red laser diode
- Wave length:
- 670 nm
- Laser class:
- 2
- Edge indicator:
- LED yellow
- Power on indication:
- LED green
- False pulse suppression:
- 4 program options
- Direct gap detection:
- Yes
- Sensitivity adjustment:
- 4 preset levels or level set by customer
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 230 mA
- Output circuit:
- Push-pull
- Output pulse length:
- 0,3 ... 100 ms selectable
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Interface:
- Serial for ScaDiag software
- Width / diameter:
- 30 mm
- Design:
- Rectangular
- Housing material:
- Die-cast zinc
- Connector base (main connector):
- DIN 45322, 6 pin
- Connector base (interface):
- DIN 45326, 8 pin
- Front (optics):
- Glass
- Operating temperature:
- 0 +50 °C
- Protection class:
- IP 54
- Datasheet:
- View
- Operating Manual:
- View
