Baumer CFAK 30P1200?í 11001676
Baumer
$515.00

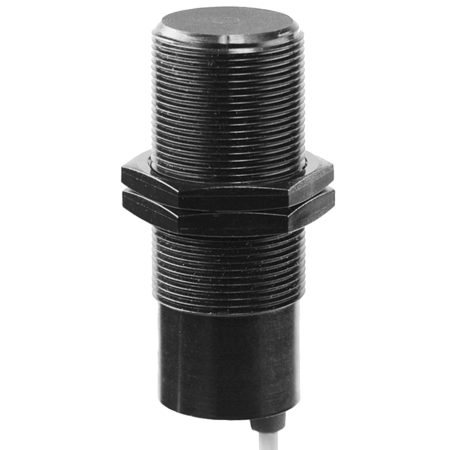

The Baumer CFAK 30P1200?Ã 11001676 is a non-flush, cylindrical threaded capacitive sensor with a nominal sensing distance of 30 mm, adjustable from 5 to 30 mm. It features a potentiometer for sensitivity adjustment and a yellow LED output indicator. This sensor is capable of detecting non-conductive media and can measure fill levels through containers, even with liquids in direct contact. It operates on a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 20 mA and an output current of 200 mA. The sensor includes short circuit and reverse polarity protection, and has a switching frequency of 50 Hz. The housing is made of PBT, measures 30 mm in diameter, and is 72 mm long, with a 2-meter cable connection. It operates within a temperature range of -25 to +75 °C and is rated IP 67/65 for protection against dust and water ingress.
- Nominal sensing distance Sn:
- 30 mm
- Nominal sensing distance Sn adjustable:
- 5 30 mm
- Mounting type:
- Non-flush
- GND electrode:
- No
- Temperature drift:
- ± 15 % (+10 ... +70 °C)
- Sensitivity adjustment:
- Potentiometer, 18 turn
- Output indicator:
- LED yellow
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- Yes
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- PNP make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <1.5 VDC
- Switching frequency:
- 50 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- PBT
- Dimension:
- 30 mm
- Housing length:
- 72 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67/65 (sensing face/sensor)
- Datasheet:
- View
