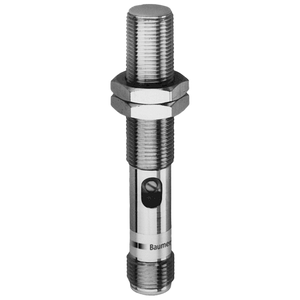

Baumer CFAM 12N3600 10119682
Baumer
$463.50
The Baumer CFAM 12N3600 10119682 is a cylindrical threaded proximity sensor with a nominal sensing distance of 4 mm, adjustable from 0.5 to 4 mm. It features flush mounting, a ground electrode, and a temperature drift of ±15% over a range of +10 to +70 °C. The sensor offers sensitivity adjustment via a 240° potentiometer and includes a yellow LED output indicator. It is designed for contactless measurement and can detect non-conductive media, making it suitable for object detection and bulk goods, as well as fill level detection through containers. It does not allow liquids in direct contact. The sensor operates on a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 20 mA when unloaded. It supports an NPN break function (NC) output circuit with an output current of 200 mA and a voltage drop of less than 1.5 VDC. The switching frequency is 50 Hz, and it includes short circuit and reverse polarity protection. The housing is made of brass nickel-plated material, measuring 12 mm in diameter and 60 mm in length, and is connected via a 2-meter cable. It operates within a temperature range of -25 to +75 °C and is rated IP 65 for protection against dust and water ingress.
- Nominal sensing distance Sn:
- 4 mm
- Nominal sensing distance Sn adjustable:
- 0.5 4 mm
- Mounting type:
- Flush
- GND electrode:
- Yes
- Temperature drift:
- ± 15 % (+10 ... +70 °C)
- Sensitivity adjustment:
- Potentiometer, 240°
- Output indicator:
- LED yellow
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- No
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- NPN break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <1.5 VDC
- Switching frequency:
- 50 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 60 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 65
- Datasheet:
- View
