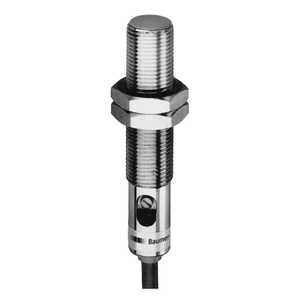

The Baumer CFAM 12N3600/S14 10119688 is a cylindrical threaded proximity sensor with a nominal sensing distance of 4 mm, adjustable from 0.5 to 4 mm. It features flush mounting, a ground electrode, and a temperature drift of ±15% over a range of +10 to +70 °C. The sensor offers sensitivity adjustment via a 240° potentiometer and includes a yellow LED output indicator. It is designed for contactless measurement and can detect non-conductive media, making it suitable for object detection and bulk goods, as well as fill level detection through containers. It does not allow liquids in direct contact. The sensor operates on a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 20 mA, and supports an NPN break function (NC) output circuit with an output current of 200 mA. The voltage drop is less than 1.5 VDC, and it has a switching frequency of 50 Hz. Safety features include short circuit and reverse polarity protection. The housing is made of brass nickel-plated material, measures 12 mm in diameter, and is 76 mm long. It connects via an M12 connector and operates within a temperature range of -25 to +75 °C. The sensor is IP 65 rated, indicating dust tightness and protection against water jets. For more detailed information, refer to the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_CFAM-12N3600-S14_EN_20230331_DS.pdf?mediaPK=9065642360862).
- Nominal sensing distance Sn:
- 4 mm
- Nominal sensing distance Sn adjustable:
- 0.5 4 mm
- Mounting type:
- Flush
- GND electrode:
- Yes
- Temperature drift:
- ± 15 % (+10 ... +70 °C)
- Sensitivity adjustment:
- Potentiometer, 240°
- Output indicator:
- LED yellow
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- No
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- NPN break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <1.5 VDC
- Switching frequency:
- 50 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 76 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 65
