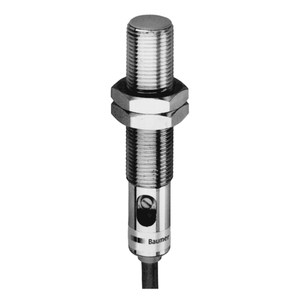

The Baumer CFAM 12P3600/S14 10119690 is a cylindrical threaded proximity sensor with a nominal sensing distance of 4 mm, adjustable from 0.5 to 4 mm. It features flush mounting, a ground electrode, and a temperature drift of ±15% over a range of +10 to +70 °C. The sensor includes a potentiometer for sensitivity adjustment, a yellow LED output indicator, and operates contactlessly, capable of detecting non-conductive media and bulk goods, as well as performing fill level detection through containers. It does not allow liquids in direct contact. The sensor operates on a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 20 mA, and supports a PNP break function (NC) output circuit with an output current of 200 mA. The voltage drop is less than 1.5 VDC, and it has a switching frequency of 50 Hz. It includes short circuit and reverse polarity protection. The housing is made of brass nickel-plated material, measures 12 mm in diameter, and is 76 mm long. It connects via an M12 connector and operates within a temperature range of -25 to +75 °C. The sensor is rated IP 65 for protection against dust and water ingress.
- Nominal sensing distance Sn:
- 4 mm
- Nominal sensing distance Sn adjustable:
- 0.5 4 mm
- Mounting type:
- Flush
- GND electrode:
- Yes
- Temperature drift:
- ± 15 % (+10 ... +70 °C)
- Sensitivity adjustment:
- Potentiometer, 240°
- Output indicator:
- LED yellow
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- No
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- PNP break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <1.5 VDC
- Switching frequency:
- 50 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 76 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 65
